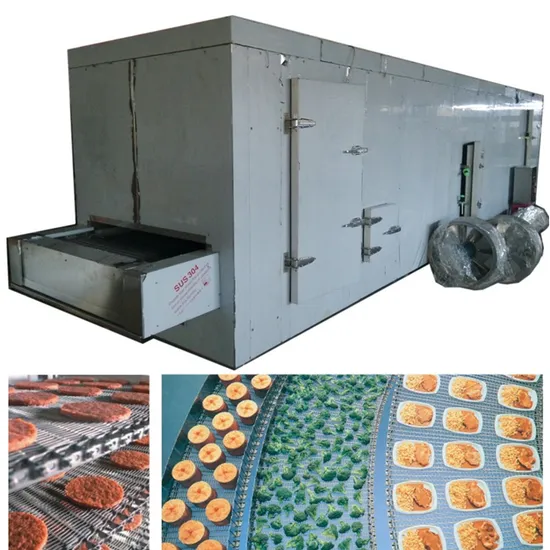

IQF Tunnel Conveyor Belt Cooling Freezing Machine for Avocado Pizza Tart Dough
| US$19,999.00-789,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ST-SD
Type
Freezer
Voltage
380V
Power
1.5KW
Customized
Customized
Usage
Biscuit, Cake, Pizza, Bread, Seafood, Vegetable
Belt Size
Customized
Function
Cooling&Freezing
Processing Time
Adjustable
Refrigerant
Freon or Ammonia or CO2
Deforsting Time
8~12hours Per Time
Speed
Adjustable
Overall Dimensions
Customized
Temperature
-40c or Customized
Material
Stainless Steel
Service
Local Installation
Transport Package
Wooden Case
Specification
50~4000kg/hr
Trademark
SOFT
Origin
Cn
HS Code
843860
Production Capacity
100units Per Year
Product Description
Product DescriptionConveyor Belt Tunnel Quick Freezing Machine Freezer
1.Raw Material:All kinds of vegetables and fruits, meat, seafoods, prepared food,etc.
2.Output capacity:50-4000kg/h
3.Freezing Source: R22, R404A, R717A, 507, Freonetc
4.Freezing Temperature: -38±2ºC.
5.Main Machine material: Food Grade Stainless Steel
6.Freezing Time: 10-40minutes or customized
7.FOB Price Budget: USD9,900-99,000
8.After-sales Service Provided:Engineers available to service machinery overseas
9.Warranty:1 Year
IQF Conveyor Belt Tunnel freezer is mostly used for quick freezing of fruits & vegetables, meat, seafood, prepared food and all kind of package food or raw material. Such as chicken nugget, shrimp, pawn, fish, carrot, strawberry, blueberry, dumpline, meat roll, snack food, etc
Quick freezing processing of seafood, poultry, vegetables, fruits, pasts, dairy products, etc.
1.Simple structure, convenient operation and long service life.
2.Use the high strength SUS304 board to carry the frozen product, the surface is flat, and the width of the conveyor belt can be seleted according to customer requirement.
3.Adopt thermal wave blowing style to ensure freeze efficiency. Detailed Photos
Product Parameters
| Model | ST-SD100 | ST-SD300 | ST-SD500 | ST-SD1000 | ST-SD1500 |
| Capacity KG/HR | 100 | 300 | 500 | 1000 | 1500 |
| Power KW | 2.25 | 6.5 | 10.3 | 19.8 | 28.6 |
| Refrigeration Consumption KW | 15 | 45 | 75 | 145 | 225 |
| Input Temperature ºC | +15 | +15 | +15 | +15 | +15 |
| Discharge Temperature ºC | -18 | -18 | -18 | -18 | -18 |
| Inner Circulation Temperature ºC | -36±2 | -36±2 | -36±2 | -36±2 | -36±2 |
| Freezing Time Minutes | 15-40 | 15-40 | 15-40 | 15-60 | 15-60 |
