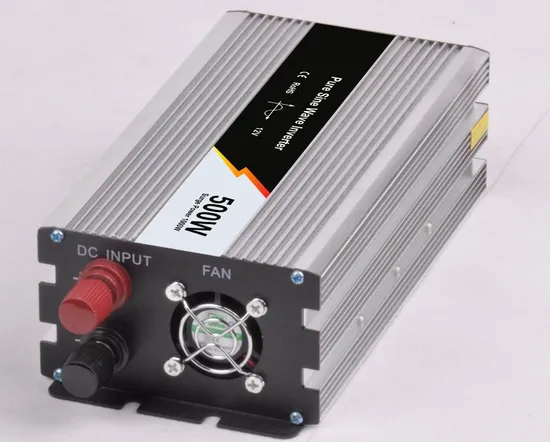

12V/24V/48V/60V to 220V/110V DC to AC Inverter Pure Sine Wave Inverter 300W-6000W Car Hourse Power Inverter off Grid Panel Inverter
| US$24.00-329.14 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
WHP
Output Power
201 - 300W
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Max. Output Efficiency
90%
Output Waveform
Pure Sine Wave
DC Reverse Connection Protection
Fuse Burnt
Working Temperature
-10ºC~50ºC
Unit Size
199mm*106mm*60mm
N.W/G.W
0.8kg/1.06kg
Transport Package
Carton or Plywood Case
Specification
199mm*106mm*60mm
Trademark
Weho
Origin
Zhejiang
Production Capacity
50000/Year
Packaging & Delivery
Package Size
24.00cm * 10.00cm * 6.00cm
Package Gross Weight
1.300kg
Product Description
12V/24V/48V/60V to 220V/110V DC to AC Inverter Pure Sine Wave Inverter 300W-6000W Car Hourse Power Inverter off Grid Panel Inverter| Model | P-500W-12V | P-500W-24V | P-500W-48V |
| Output Power | 500W | ||
| Peak Power | 1000W | ||
| DC Input Voltage Range | DC12V(9.5V-15.5V) | DC24V(19V-31V) | DC48V(38V-62V) |
| AC Output Voltage (Single Choice) | 100V/110V/120V/220V/230V/240V | ||
| Unload Current | ≤0.6A | ≤0.3A | ≤0.2A |
| Output Frequency | (50Hz±2Hz) or (60Hz±2Hz) | ||
| Output Waveform | Pure sine wave | ||
| Display | / | ||
| USB Output Votlage / Current | 5V 2A (Support QC3.0 fast charge up to 18W) | ||
| Max. Output Efficiency | 88% | 90% | 92% |
| Low Voltage Protection | "Alarm ""Bi"" with 2s interval +red and green lights flashing alternately restart automatically when voltage recover" | ||
| Over Voltage Protection | " Alarm ""BiBi"" with 1s interval +red and green lights flashing alternately restart automatically when voltage recover" | ||
| Over Load Protection | "Alarm ""Bi"" continously +red light flashing / restart automatically when load power recover; If it is closed after twice recover, it need restart manually." | ||
| Over Temp Protection | " Alarm ""BiBiBi"" with 1s interval +red and green lights flashing alternately restart when temp recover" | ||
| Short Circuit Protection | yes | ||
| DC Reverse Connection Protection | Fuse burnt | ||
| Low Voltage Alarm Range | 10.5v±0.5v | 21v±0.5v | 42v±0.5v |
| Low Voltage Protection Range | 9.5v±0.5v | 19v±0.5v | 38v±0.5v |
| Low Voltage Recover Range | 12v±0.5v | 23v±0.5v | 46v±0.5v |
| Over Voltage Protection Range | 15.5v±0.5v | 31v±0.5v | 62v±0.5v |
| Over Voltage Recover Range | 14v±0.5v | 28v±0.5v | 56v±0.5v |
| Working Temperature | -10ºC~50ºC | ||
| Cooling Method | Fan cooling (Temperature control) | ||
| Unit Size | 245mm*106mm*60mm | ||
| N.W/G.W | 1.06kg/1.34kg | ||
