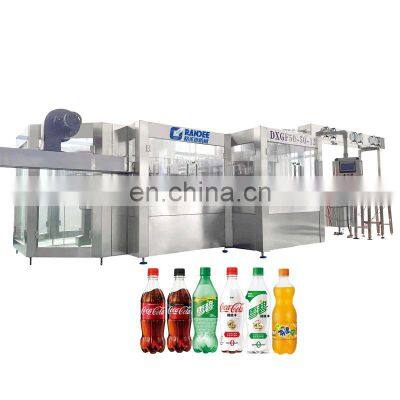

Complete line automatic carbonated CO2 drink washing filling and bottling machine plant

Product Description

Product Description
Complete line automatic carbonated CO2 drink washing filling and bottling machine plantProduct DescriptionMain introduction:This machine has washer,filler,capper three functions in one body, automatic in total process, it is suitable for PET bottled cola ,sprint etc. It makes by high quality SUS304, key parts are precision machined by NC tool. The total machine uses advanced photoelectric detection technology to detect each part’s operation status, no bottle no filling, and no bottle no capping, automatic and easy operation.Features:1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier. 2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.. 3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution. 4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose. 5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains. 6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON. Details show:Washing partInto bottle way is air conveyor direct connection with bottle dial.All 304/316 stainless steel rinse heads, water spray style inject design, more save water consumption and more clean. 304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.304/316 stainless steel washing pump make the machine more durable.Filling part304/316 Stainless steel high precision filling nozzleFilling volume adjustable in fine rank, same liquid level after fillingAll 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean304/316 stainless steel filling pumpEfficient spray nozzle rinse thoroughly and save water for flushingCapping PartPlace and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during cappingAll 304/316 stainless steel constructionNo bottle no cappingAutomatic stop when lack of bottleCapping effect is stable and reliable, Defective rate ≤0.2% Main configuration: Main technical parameter:ModelDXGF8-8-3DXGF14-12-5DXGF18-18-6DXGF24-24-8DXGF32-32-10DXGF40-40-12DXGF50-50-12Rinsing heads814182432 40 50Filling heads812182432 40 50Capping heads356810 12 12Suitable bottle sizeH:170-320mm Dia:50-100mmCleaning pressure(MPa)0.25-0.3Capacity(b/h)15002000500070009000 12000 14000Dimension(mm)2000*1800*23002100*1800*25002600*2100*25003200*2300*25004200*2600*2500 4800*2800*25005500*3300*2900 Power(kw) 1.52.23.55.579 11 Flow chartRelated product1.Automatic blow molding machine for 220ml-2000ml PET bottleThe series full automatic PET stretch blow molding machine can produce all kinds of PET plastic bottle, water bottle, carbonated drink bottle, hot juice bottle, output from 2500bph to 6000bph, volume from 0.1 to 1.5L. You can send me bottle size, our engineer will make 2D drawing for you or if you do not have bottle size, we wil provide some as a reference. 2.Carbonated drink mxing systemProcess: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tankThe output of beverage processing system depending on how many liters per hour for carbonated drink, soda water or juice,etc.Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc, steam heating or electrical heating type, steam heating boiler will matched fuel oil boiler, but save electricity, eletrical heating type boiler will power-consuming.Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, double layer with warming jacket, motor with blending systemStorage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. double layer with warming jacket 3.Carbonated drink mixer and water chillerCarbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree (filling temperature) 4.Automatic double head sleeve shrink labeling machineWhole machine frame is made out of stainless steel304. Simple structure, beauty appearance, easy cleaning, water and rust proof. 5.High speed automatic linear type shrink packing machineThis type of machine is suit for beverage, drinking water, beer, wine and infusion bittle ect.packaging, which can be packed without tray and with a firm and beautiful appearance. Company InformationWorkshop deatilsOur teamFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
