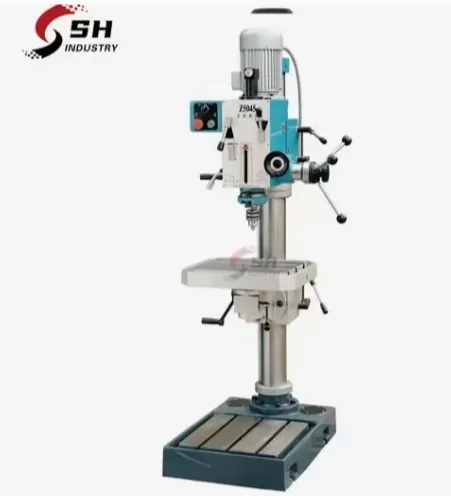

Upright Drilling and Milling Machine Z5032c/1 Z5040c/1 Z5045c/1 Cheap Metal Drilling and Milling Machine
| US$1,100.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5032c/1 Z5040c/1 Z5045c/1
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE, ISO 9001
Condition
New
Product Name
Upright Drilling and Milling Machine Z5032c/1 Z50
Max. Drilling Dia.
32
Spindle Taper
Mt3
Spindle Travel
130
Step of Speed
6
Transport Package
Plywood Case
Trademark
Shenghuan
Origin
China
HS Code
8459290000
Packaging & Delivery
Package Size
185.00cm * 75.00cm * 100.00cm
Package Gross Weight
437.000kg
Product Description
Upright Drilling and Milling Machine Z5032c/1 Z5040c/1 Z5045c/1 Cheap Metal Drilling and Milling MachineProduct Description
Main technical Specifications:
| Specifications | Z5032C/1 | Z5040C/1 | Z5045C/1 |
| Max. Drilling dia. | 32mm | 40mm | 45mm |
| Spindle taper | M.T.3 or R8 | M.T.4 | M.T.4 |
| Spindle travel | 130mm | 130mm | 130mm |
| Step of speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Step of spindle auto-feeding | 6 | 6 | 6 |
| Range of spindle auto-feeding amount | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
| Min.distance from spindle axis to column | 290mm | 290mm | 290mm |
| Max.distance from spindle nose to worktable | 700mm | 700mm | 700mm |
| Max.distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm |
| of headstock | 250mm | 250mm | 250mm |
| Swivel angle of headstock(horizontal) | 360° | 360° | 360° |
| of worktable bracket | 600mm | 600mm | 600mm |
| Table Size | 730×210mm | 730×210mm | 730×210mm |
| Size of stand worktable of avaliability | 417×416mm | 417×416mm | 417×416mm |
| Forward and afterward travel of worktable | 205mm | 205mm | 205mm |
| Left anf right travle of worktable | 500mm | 500mm | 500mm |
| Vertical travel of worktable | 570mm | 570mm | 570mm |
| Motor Power | 0.75kw | 1.1kw | 1.5kw |
| speed of motor | 1400rpm | 1400rpm | 1400rpm |
| Coolant pump power | 0.04kw | 0.04kw | 0.04kw |
| Net weight/Gross weight | 437/500kg | 442/502kg | 443/505kg |
| Packing size | 1850x750x1000mm | 1850x750x1000mm | 1850x750x1000mm |
Detailed Photos
Company Profile
Certifications
FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
