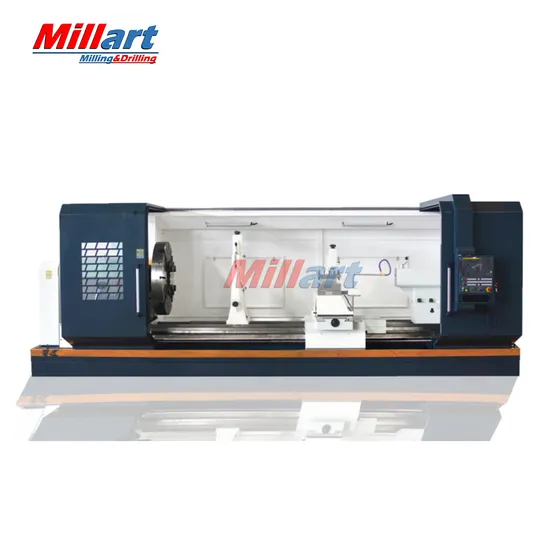

Heavy Duty CNC Lathe Machine Ck61125b Semi Protection Turning Lathe Center
| US$40,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK61125B
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, RoHS, ISO 9001
Condition
New
Max. Swing Over Bed Diameter
1250mm
Bed Width
755mm
Spindle Bore
130mm
Transport Package
Wooden Pallets
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8458110090
Production Capacity
20 PCS/Month
Product Description
Heavy Duty CNC Lathe Machine CK61125B Semi Protection Turning Lathe CenterFeatures:
CK Series are economical and practical CNC lathes. With optimized structures, unfailing performance, high quality, simple programming, and easy handling, they are suitable for turning of complicated shaft, sleeve, and disk type work-pieces such as turning of internal and external cylindrical, conical, arc surfaces and various threads, and even drilling, boring and reaming holes. And they are especially fit for turning of diversified work-pieces on small and medium batches. They are of high versatility high efficiency, low inferiority and good comfort ability. So to be widely used in various trades, such as automobile industry. Petroleum industry, military industry, and so on.
Specifications:
| Model | Unit | CK61125B |
| Max swing over bed | mm | 1250 |
| Max swing over carriage | mm | 870 |
| Max.length of workpiece | mm | 1500/2000/3000/4000/5000 |
| Distance between spindle center to plane guide | mm | 625 |
| Spindle nose | A2-15 | |
| Spindle bore | mm | 130 |
| Spindle taper | 1:20/140 | |
| Bed width | mm | 755 |
| Spindle speed and steps | r/min | 4 steps 4-470 |
| Four jaw chuck size | mm | 1000 |
| Distance from spindle to ground | mm | 1275 |
| X axis rapid moving speed | m/min | 4 |
| Z axis rapid moving speed | m/min | 6 |
| X axis travel | mm | 650 |
| Z axis travel | mm | 2850 |
| Tail stock quill diameter | mm | 160 |
| Tail stock quill travel | mm | 300 |
| Tail stock quill taper | MT6 | |
| Tool post size | mm | 300x300 |
| Tool post shrank size | mm | 40x40 |
| Re-positioning accuracy | mm | 0.005 |
| Main motor power | kw | 22 |
| Coolant pump motor | w | 125 |
| Overall dimensions | mm | 4600/5100/6100/8100x2500x2250 |
| Machine weight | kg | 10500/11000/12500/15000 |
| Max loading capacity | kg | 8000 |
Standard accessories:
Fanuc 0i TF controller
4 station electric turret
4 jaw chuck
Manual tailstock
MPG
Integrated automatic lubrication system
Coolant system
Lighten system
Dead centers
Center sleeve
Optional accessories:
Automatic chip conveyor
Steady rest
Follow rest
