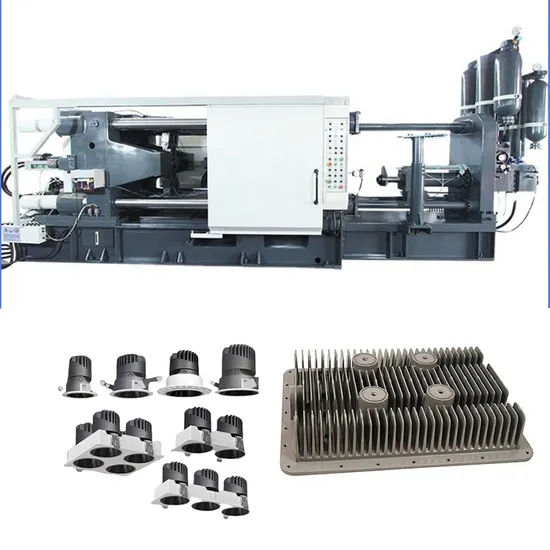

Aluminum Injection Molding Horizontal High Pressure Making LED Housing Die Casting Machine

Product Description

Product Description

Product Parameters

LH series of standard parameter table (800 t)
ITEMS	Unit	Specification
Clamping Force	KN	8000
Opening stroke	mm	760
Die thickness(Min--Max)	mm	400~950
Space between tie bars	mm	910*910
Ejector stroke	mm	180
Ejector force	KN	315
Injection position(0 as center)	mm	0,-250
Injection force(intensification)	KN	680
Injection stroke	mm	760
Plunger diameter	mm	¢80 ¢90 ¢100
lnjection weight(aluminum)	Kg	11.2
Casting pressure (intensification)	MPa	135/106/86
Max. casting area(40Mpa)	CM2	2000
Injection plunger penetration	mm	295
Diameter of pressure chamber flange	mm	200
Height of pressure chamber flange	mm	20
Max.working pressure	MPa	14
Motor power	Kw	30
Dimensions (L*W*H)	m	8.7*2.5*3
Machine lifting reference weight	T	38
Oil tank capacity	L	1300

Due to the continuous advancement of technology, parameters are subject to change without further notice. Company Profile

Certifications

RFQ
1. Who are we?
We are based in Anhui, China,Cooperate with Longhua Factory start from 2014,sell to Domestic Market(50.00%),Southeast Asia(15.00%),South Asia(12.00%),South America(8.00%),Eastern Asia(8.00%),Africa(5.00%),Mid East(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Die Casting Machine/Robot For Die Casting Machine,Peripheral Equipment, Die Casting Machine Parts, Castings Mould ,Melting Furnace
4. Why should you buy from us not from other suppliers?
Longhua Die Casting Machine has 40 years of production experience, and cooperate with the Chinese Academy of Science and Technology, you know that China's space shuttles are cooperating with the Chinese Academy of Science and Technology.
5. What services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese
