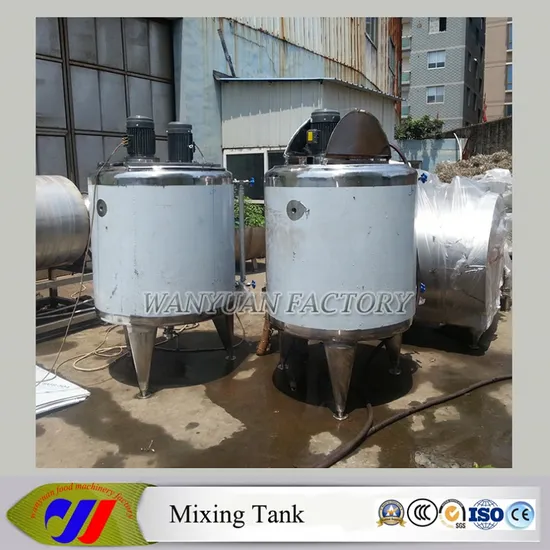

Stainless Steel Liquid Mixing Tank Blending Tank
| US$1,800.00-5,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LRG-1000
Application Area
Food
Certification
CE, ISO
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Conical
Stirring Type
Spiral
Working
High Speed Mixer
Usage
Mixing and Heating
Capacity
1000L
Material
Stainless Steel 304
Structure
Open or Closed with Manhole
Heating Mode
Steam Heating/ Gas Heating/ Electric Heating
Number of Layer
Two Layers/ Three Layers
Type of Insulation
PU
Mixing Speed
36/120/2800rpm
Motor Power
1.5/2.2/5kw
Mixer Type
Agitator
Layout Type
Verticle
Operating type
Cycle Operating
Transport Package
Wooden Case
Specification
SUS304
Trademark
Wanyuan
Origin
Wenzhou China
HS Code
8479819000
Production Capacity
5000
Product Description
Stainless Steel Liquid Mixing Tank Blending Tank (LRG500)1. Made of stainless steel 304 or 316
2. Mixing milk, juice, or any other viscous liquid
3. Customized mixing tank capacity
Stainless Steel Liquid Mixing Tank Blending Tank (LRG500)
Blending Tank <mixing tanks> mainly made of stainless steel, used for blending different liquid together.
Also, you can use this blending tanks to mix liquid and power to make a mixture.
Blending tanks can be with different mixing speed. Such as 36rpm, 60rpm fixed mixing speed. But due to some production reqeust, you may need the blending tanks with variable speed, such as 8 to 140rpm, 40 to 200rpm mixing speed, or 200 to 1000 rpm mixing speed. In special reqeust, we can use VFD<Variable Frequency Drive> to meet your special mixing speed request.
Blending motor:
Wenzhou wanyuan food machinery factory mainly produce stainless steel blending tanks for milk, juice, beverage, cosmetic, detergent as well as chemical product. Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.
Stainless Steel Liquid Mixing Tank Blending Tank (LRG500)
Wenzhou wanyuan food machinery factory
The below is our blending tank specification:
| volume (L) | Dimension (D× h ) (mm) | Total height (mm) | Diameter Of inlet & outlet | Heat preservation layer (mm) |
| 500 | 840 × 1000 | 2250 | 38 | 60 |
| 600 | 920 × 1000 | 2300 | 38 | 60 |
| 700 | 990 × 1000 | 2300 | 38 | 60 |
| 800 | 950 × 1220 | 2500 | 38 | 60 |
| 900 | 1010 × 1220 | 2500 | 38 | 60 |
| 1000 | 1060 × 1220 | 2550 | 51 | 60 |
| 1500 | 1160 × 1500 | 2850 | 51 | 60 |
| 2000 | 1340 × 1500 | 2900 | 51 | 60 |
| 3000 | 1410 × 2000 | 3400 | 51 | 60 |
| 4000 | 1620 × 2000 | 3450 | 51 | 60 |
| 5000 | 1810 × 2000 | 3500 | 51 | 60 |
