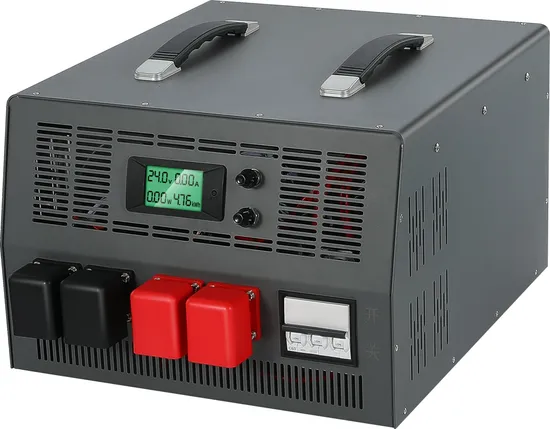

Sp-15000-110 15000W 110V CE RoHS 1 Years Warranty AC to DC Single Output SMPS Switching Power Supply with Pfc
| US$1,534.82 | 1 Piece (MOQ) |
Basic Info.
Model NO.
SP-15000-110
Output Power
15000W
Input Voltage
Full Range
Connection Mode
Both
Starting Mode
Separate-excited Switching Power Supply
Voltage Regulating Mode
Width Modulation Type
Energy Transmission
Two-way Transmission
Modulation System
PWM
Certification
CE
Brand
Weho
AC Current
<110A
Leakage Current
<3 .0mA/240VAC
485 Communication
Modbus Communication Protocol
Frequency Range
45Hz - 65Hz
Isolating Auxiliary Power Supply
12V 0.5A ( Need to Be Customized)
Withstand Voltage
I/ P-O/ P : 2kvac I/ P- Fg:2kvac O/ P- Fg:0 . 5kv
Net Weight
22kg
Transport Package
Carton
Specification
455 *345 * 251mm
Trademark
WEHO
Origin
Zhejiang
HS Code
8504401400
Production Capacity
500000
Packaging & Delivery
Package Size
45.50cm * 34.50cm * 25.10cm
Package Gross Weight
22.000kg
Product Description
SP-15000-110 15000W 110V CE Rohs 1 Years Warranty Ac to Dc Single Output Smps Switching Power Supply with PFC Product Description Notice:1,Input Voltage 90V~264V
2,Protection type: short circuit/over current/over voltage/over temperature
3,Power factor PF>0.99
4,Work efficiency up to 93%
5,485 Communication Control
Product Parameters
| Model | SP-15000-24 | SP-15000-36 | SP-15000-48 | SP-15000-60 | SP-15000-110 | SP-15000-220 | ||
| OUTPUT | DC voltage | 24V | 36V | 48V | 60V | 110V | 220V | |
| Rated current | 625A | 416A | 312A | 250A | 136A | 68A | ||
| Current range | 0 - 6 2 5 A | 0 - 416A | 0 - 312A | 0 - 250A | 0 - 136A | 0 - 68A | ||
| Rated power | 15000W | |||||||
| Ripple & Roise | 500mV | 500mV | 600mV | 600mV | 1000mV | 1500mV | ||
| Constant current range | 12 - 24V | 18 - 36V | 24 - 48V | 30 - 60V | 55 - 110V | 110 - 220V | ||
| Voltage tolerance | ±1.0% | |||||||
| Line regulation | ±1.0% | |||||||
| Load regulation | ±1.0% | |||||||
| Setup risetime | 1500mS ,700mS/ 230VAC( Full load) | |||||||
| INPUT | Voltage range | 95- 190 VAC(output current 50%) , 195- 265 VAC(output current 10 0%) | ||||||
| Frequency range | 45Hz - 65Hz | |||||||
| Power factor | PF>=0 .99/ 230VAC( Full load) | |||||||
| Efficiency( MAX) | 90 % | 91.5 % | 92 % | 92 % | 92.5 % | 93 % | ||
| AC Current | <110A | |||||||
| Leakage current | <3 .0mA / 240VAC | |||||||
| PROTECTION | Short curcuit | Enter the constant current and the voltage is less than 10% of the rated voltage, turn off and lock the output after 1 second, and resume after restart | ||||||
| Over current | The user can set a delay of 5 seconds after the current value is turned off, and the output can be restored after restart | |||||||
| Over voltage | The user can set the overvoltage value to turn off the output voltage, and resume after restart | |||||||
| Over temperature | Turn off the output and automatically recover or restart after the temperature drops | |||||||
| FUNCTION | Output voltage adjustment | 0 - 26.4V | 0 - 39.6V | 0 - 52.8V | 0 - 66V | 0 - 121V | 0 - 242V | |
| Output constant current adjustment | 0 - 740A | 0 - 500A | 0 - 375A | 0 - 300A | 0 - 163.6A | 0 - 81.8A | ||
| 485 communication | MODBUS Communication protocol | |||||||
| Isolating auxiliary power supply | 12V 0.5A ( Need to be customized) | |||||||
| Output remote control switch | Default power on, high power off(5V-12V) ( Need to be customized) | |||||||
| Alarm output | Power normal signal ( Dry contact <= 36 V , 0 . 1A )( Need to be customized) | |||||||
| ENVIRONMENT | Working TEMP. | -20 - +60ºC | ||||||
| Working humidity | -20 - 90% RHnon-condensing | |||||||
| Storage TEMP. and humidity | -40 - +85ºC, 10 - 95% RH non-condensing | |||||||
| Vibration | 10 - 500Hz, 2G 10mins/T, X ,Y ,Zaxis 60 minutes each | |||||||
| SAFETY& EMC | Isolation resistance | Input-output: 100 Mhms/500 VDC/ 25 ºC/70% RH | ||||||
| Withstand voltage | I/ P-O/ P : 2KVAC I/ P- FG:2KVAC O/ P- FG:0 . 5KVAC | |||||||
| OTHERS | Dimension | 455 *345 * 251mm(L*W * H) | ||||||
| Net weight | 22 KG | |||||||
| Remark | 1 . All parameters NOT specially mentioned are measured at 23 0 VAC input, rated load and 25 ºC of ambient temperature. 2 . Ripple &noise are measured at 20 MHz of bandwidth by using a 12 " twisted pair-wire terminated with a 0 . 1uf &47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. If the input voltage is low, the output needs to be derated. For details, see the static characteristic diagram. 5. Length of setup time is measured at cold first start,Turning ON/OFF the power supply may lead to increase of the setup time. | |||||||
Certifications FAQ Q1:Are you a factory or trading company?
A1:We are factory.
Q2:Why choose us?
A2:Our factory has been in operation for 17 years,We have enough experience to meet your needs.
Q3:How can I get the samples?
A3:You can pay for the sample this time, and we will refund the sample fee for the next batch order.
Q4:How to order?
A4:Please contact us online to send you a proforma invoice or send us your purchase order by email.
Q5:How many years warranty of your products?
A5: 1 years
