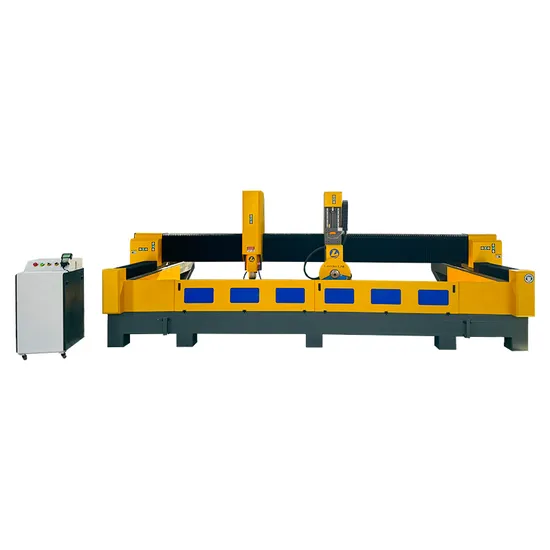

3020 3D 3axis 4axis Stone Engraving Cutting Router Machine with Saw Cutter

Product Description

Feature
# The bed structure welded by thick steel tubes and processed in a high temperature treatment to avoid deformation, good rigidity and high strength, large loading capacity.
# XY axis use helical gear rack to increase the traction.
# With imported square linear guides with high accuracy, can withstand a large load and provides a long service life.
# With dust-proof cover to protect all parts, reduce the machine fault, enlarge the life time
# Well-known large power spindle with high torque, stable performance, can provide fast processing and higher efficiency.
# High-performance driven motor to ensure that the machines high speed and accuracy.
# Good electromechanical design, strictly selected the brand electrical parts to minimize machine breakdown.
# Multi-functinal, double heads, stone saw engraving or cutting, optional three or four heads, to improve efficiency.
Product Parameters

Model	LES-3020
Working area	3000x2000x500mm
Spindle	HQD 3kw / 4.5kw / 5.5kw / 7.5kw
Inverter	Fuling / Best
Saw cutting	Optional
Spindle Speed	0-24000RPM
Control system	NC Studio / DSP
Driving system	Stepper / Servo
Transmission system	XY helical gear rack and Z axis Taiwan TBI ball screw
Guide	Imported Taiwan high HIWIN/PMI accuracy square rails
Table	T-slot aluminum with water tank / Vacuum sucker
Cooling system	Spraying water cyle cooling

Packaging & Shipping
Inner package: Stretch film and and water-proof film.
Outside package: Load into container.
By sea/train/air, we can do EXW/FOB/CFR/CIF/DDU/DDP trading terms.
Payment
T/T 50% in advance, and we start to manufacture this machine after receiving the payment.
T/T 50% balance payment before shipping, and we will send you our machine pictures and testing video to confirm, next, arrange the packing and shipping after all ready. Company Profile
Service:
Three years warranty.
7/24 after sale service.
Customer will be able to get free training advice in our factory.
Can also get free suggestion, consultation, technical support and service by Email/Tel/WhatsApp/Skype, etc.
Any question or problem, show us pictures or videos, and then we will try our best to help you as soon as possible.
Free parts will be provided if broken not human reason within warranty.
Engineer available to overseas service.
FAQ
Q: Which one is suitable for me?
A: Tell us below information
1) Max size of your material, to choose most suitable model.
2) Maximum cutting thickness, materials to choose suitable power.
3) Industry information and sample photos, we will recommend you best model based on our many years experience in this field.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. Most customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We can provide WeChat/Whatsapp/Email/Phone, will response within 24 hours as quick as we can to solve it for you, till to solving all questions.
Q: What's your MOQ?
A: 1 set, we will give you support with our heart and soul.
