a Frame Laying Hens Automatic Feeding Equipment for Poultry Farm

Product Description

A Type Ladder Chicken Layer Livestock Cage Poultry Farms Machinery
Product Description
A type Cage Introduction :A type layer chicken cages are suitable for tropical area for the better ventilation design.
It is more suitable for raising less than 25,000 birds in one house.

Our Advantages
A type poultry equipment has the advantages of simple structure,low cost,it can realize automatic feeding,drinking,manure removing and environment controlling.
The cage mesh and frame adopt hot dip galvanizing process that can achiev strong ant corrossion.it can fuly meet the hot and humid climate ,especially in the tropics.
The manure removing system can choose PP belt or drag scraper,even can drop down from floor. Product Parameters

Model	Tiers	Doors/set	Birds/door	Capacity/set	Cage Size(L*W*H) mm	Area/bird ( cm2 )	Feed trough/bird (cm)	Type
9TLD-396	3	4	4	96	1900*2090*1820	432	11.7	A
9TLD-4128	4	4	4	128	1900*2500*2280	432	11.7	A

A Type Chicken Cage for Layers House Design:

House Size	Design	Units of cages	Birds Qty
100m*12m*3.2m	3 lines of 4 tiers	47	18048
100m*15m*3.0m	4 lines of 3 tiers	47	18048

1.If the house size is 100m*12m*3.2m, 3 lines of 4 tiers equipment can be installed with 47 units of cages each line, and total birds quantity can reach 18048 (3*47*128=18048 birds).
2.If the house size 100m*15m*3.0m, 4 lines of 3 tiers equipment can be installed with 47 units of cages each line, and total birds quantity is also 18048.(4*47*96=18048 birds)
Detailed Photos
1).The frame of cage is formed with the hot galvanized plate by using CNC machine, Accurate assembling can improve the stability of the cage structure, also avoid manure belt off running.
C-shape legs are formed of hot galvanized sheets for easy cleaning.

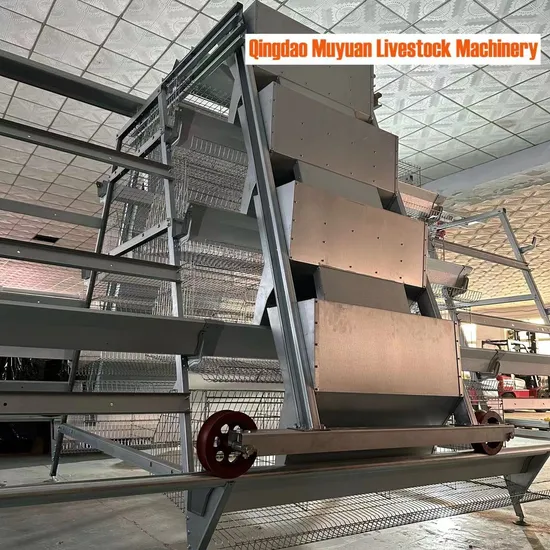

2)Automatic feeding system
The feeding system have two sets of trolleys,thay independently run. There set a strengthen tube along the bottom trough it is convenient for worker to stamp it.
3)Automatic drinking system
The square drinking pipes are installed on the longitudinal central axis of each tier of cage in order to save space, supplying water to layers of both sides. layers in both sides can touch two nipple drinkers.
4)Automatic manure removing system
4)Automatic egg collection systemcage bottom angle is 7°,the reasonable rolling angle is designed to reduce the rate of egg breakage
Project Show

Company Profile
We have been regarding technical innovation as the effective power of development,and continuously absorbing the advanced technology and experience to improve our capability of research and development and manufacture special products according to different requirement of customers.We carry on the tenet of "honest based,value creating"in our daily business to provide cost efficient products and services for customers.
Attend the exhibition

FAQ
Q1:How many types for layer chicken cage?A1: We have two types, A frame and H frame.A frame have two models, 3tiers and 4 tiers.H frame have 7 models , including 3 tiers,4 tiers,5tiers,6tiers,8 tiers ,10 tiers Q2:How much per set cage?A2:Different model,price is different.In addition,there are other complement equipments.Need know how many birds you want to rear,then we can give you a specific price list with house size.Q3:How long is the warrenty?A3:1 year.Q4:Who is in charge of install ?A4:We will arrange two engineers to your country to guide installation and provide training of full cage system.
