Plastic Products Mould Injection Mould Plastic Parts Mould Tooling Design Plastic Injection Mould One Stop Service Customization Product Mold Design

Product Description

Plastic Products Mould Injection Mould Plastic Parts Mould Tooling Design Plastic Injection Mould One Stop Service Customization Product Mold Design
Why Choose Us:1. Founded in 2008, Cover an area of 10000 sqms Plant; Provide OEM/ODM Service2. Certified by ISO90001, SGS,CE,UL etc3. Over 15 years experience in Mold Making & Plastic Injection Parts Mass Production4. Integrating R&D, QC System & Marketing Sales.5. One-stop Service of Custom mold design from Initial drawing design, Material selection assistance, Mold structure/Mold flow analysis, Trial & mass production to Final mold assembly & shipment.

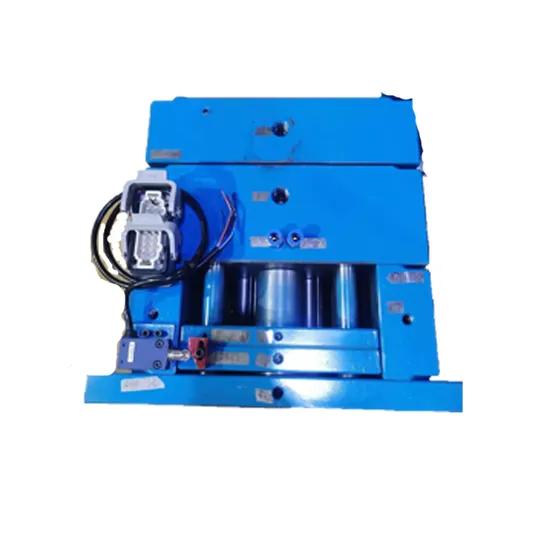

Plastic Injection Mold
Product Material	ABS, PP, PC, PA66+30GF, PVC, POM, TPE, TPV, ASA
Material of Steel	1040/1050,P20,P20HH, H13,420 etc
Surface Requirement	Smooth, Polishing, Painting, SandBlasting, Electroplate, Silk-screen, Laser Etching, Anodizing,Brushing
Tolerance Request	UP to (±0.005mm)
Mould Life	500000-1200000 shoots
Multi Injection	Single/Double/multi color
Design Software	Auto CAD,DXF, DWG,STEP, STP, IGES, X_T,STEP, STP, IGES, X_T POWERMILL
Injection System	Hot /Cold Runner
Inserts(cavity and core)	H13, 1.2344, 1.2738, 1.2083, 1.2311, NAK80 or the material you required
Mold Cavity	1*1,1+1,1*2,1+1+1,etc
Gate type	Side gate,Sub gate,Pin point gate,Edge gate etc
Ejector System	Stripper plate,Lifter,Push bar,Ejection pin etc
Steel Standard	FINKL,Assab,DAIDO,LKM,Buderus
Cooling	Baffles/Sprin Piple/3D printing water line
Standard Parts/Cylinders	DME/HASCO/PROGRESSIVE/MISUMI/Parker/HP/Merkle
Design Capability	DFM,Mould flow analysis,Product optimization, Full 2D & 3D mould design,Reverse engineering,Collaborative design with customer's idea
Documents / Reports Provided	Fully drawing,Weekly Processing Report, Steel Dimension report, Processing Report,Sample Dimension Report
Certificate	ISO9001 ISO14001
MOQ	1sets
Lead Time	6-10 weeks or according to the order requirement
Payment	40%Deposit, 30%Before Product Inspection, 30%Before Shipment
Port of loading	SHENZHEN

Plastic Materials Applies:

Material Name	Features	Applications
PP	Lightweight, Heat Resistance, High Chemical Resistance, Scratch Resistance, Natural Waxy Appearance, Tough and Stiff, Low Cost	Automobile (Bumpers, Covers, Trim), Bottles, Caps, Crates, Handles, Housings.
POM	Strong, Rigid, Excellent Fatigue Resistance, Excellent Creep Resistance, Chemical Resistance, Moisture Resistance, Naturally Opaque White, Low/Medium Cost	Bearings, Cams, Gears, Handles, Plumbing Components, Rollers, Rotors, Slide Guides, Valves
PC	Very Tough, Temperature Resistance, Dimensional Stability, Transparent, High Cost	Automobile (Panels, Lenses, Consoles), Bottles, Containers, Housings, Light Covers, Reflectors, Safety Helmets and Shields
PS	Tough, Very High Chemical Resistance, Clear, Very High Cost	Valves
ABS	Strong, Flexible, Low Mold Shrinkage (Tight Tolerance), Chemical Resistance, Applicable for Electroplating, Naturally Opaque, Low/Medium Cost	Automobile (Consoles, Panels, Trim, Vents), Boxes, Gauges, Housings, Inhalers, Toys
PA6	High Strength, Fatigue Resistance, Chemical Resistance, Low Creep, Low Friction, Almost Opaque/White, Medium/High Cost	Bearings, Bushings, Gears, Rollers, Wheels
PA6/6	High Strength, Fatigue Resistance, Chemical Resistance, Low Creep, Low Friction, Almost Opaque/White, Medium/High Cost	Han dles, Levers, Small Housings, Zip Ties
PBT,PET	Rigid, Heat Resistance, Chemical Resistance, Medium/High Cost	Automobile (Filters, Handles, Pumps), Bearings, Cams, Electrical Components (Connectors, Sensors), Gears, Housings, Rollers, Switches, Valves
PVC	Tough, Flexible, Flame Resistance, Transparent or Opaque, Low Cost	Electrical Insulation, Household wares, Medical Tubing, Shoe Soles, Toys
HDPE	Tough and Stiff, Excellent Chemical Resistance, Natural Waxy Appearance, Low Cost	Chair Seats, Housings, Covers, Containers
PMMA	Rigid, Brittle, Scratch Resistance, Transparent, Optical Clarity, Low/Medium Cost	Display Stands, Knobs, Lenses, Light Housings, Panels, Reflectors, Signs, Shelves, Trays

Plastic Injection Equipment List:

Equipment	QTY	Origin
Injection Machine	15 SETS	China
CNC Machine Center	12 SETS	China
EDM	12 SETS	China
EDM Mirror	1 SETS	Japan
Wire Cutting	8 SETS	Taiwan
Grinding Machine	3 SETS	China
Milling Machine	7 SETS	China
Drilling Machine	8 SETS	China

Company Advantage: 1. ISO 9001: 2008 certified2. Advanced equipment and excellent R& D Team3. Highly skilled manufacturing process4. A broad variety of ODM& OEM product range5. Strict quality Control System6. Software for specification drawings: STEP, STP, IGES, X_T POWERMILLHigh quality and fair price is highly strictly controlled here.

Scanning & 3D drawing	can make a 3D drawing through scanning machine with sample
CNC Machining prototype	ABS, PC, Nylon, good strength, same material features as injection parts
SLA & 3D print prototype	cost effective for part show or design test
Vacuun casting mold/Silicon mold	for TPU or rubber material, color part available
Plastic injection mould	soft tooling or production mould, can do switch runner at single tool to save tooling investment
Injection moulding parts	ABS, PC, POM, TPU, overmolding parts, can provide painting or logo print service
Advantages	Confidentiality	Signed NDA documents to ensure all your information discussed be confidential. We will also train the staff with detailed regulations and not showing the staff full data if not necessary.
	Initiative communication	Through many years cooperation with our partners, we are confident to provide you satisfied quality with a reasonable price. Not only providing satisfied quality and on-time delivery, but we also have a dedicated and initiative staff for every issue happened in the process.
	Efficient service	For some urgent issues, we provide 7*24 hours for timely feedback.We will reply your mail within 12 hours or earlier since our team members are energetic and all using smartphone devices.Please add our whatsapp or wechat for better communication
	Advantage in price	We are also happy to follow up your other projects which need outsourcing service, what we think is to save your plant visit cost and transportation cost etc. Our team's goal is to work hard to find out the best price with good quality products for our

FAQ:
Q1. Can I have a sample order ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.Q2. What's your packing?
A:Full consideration of practical situation: foam/wooden box, anti-rust paper, small box and carton, etc. Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is availableQ4. What do I need for offering a quote ?
A: Please offer us drawings (with material, dimension, tolerance, surface treatment and other technical requirement etc.) ,quantity, application or samples. Then we will quote the best price within 24h.Q5. Are you trading company or manufacturer ?
A:We are factory, with about fifteen years experience of mould design and mold making, production. We are 12 years Gold Supplier of ******.We have established the quality management system conforming to ISO 9001:2008.We are absolutely worth your trust.Q6. How long will it take for production?
A: It depends on the quantity and the complexity of the products you want.But the normal products we ensure can deliver on the day when you pay the money.Q7: Do you accept customized?
A: Of course. Mould is a customized project. You can tell us your request about mould material, color, size and so on.Q8: What is your terms of payment?
A: Mold :50% deposit +50% after the samples is approved.Batch production: 30% deposit +70% before shipment.
