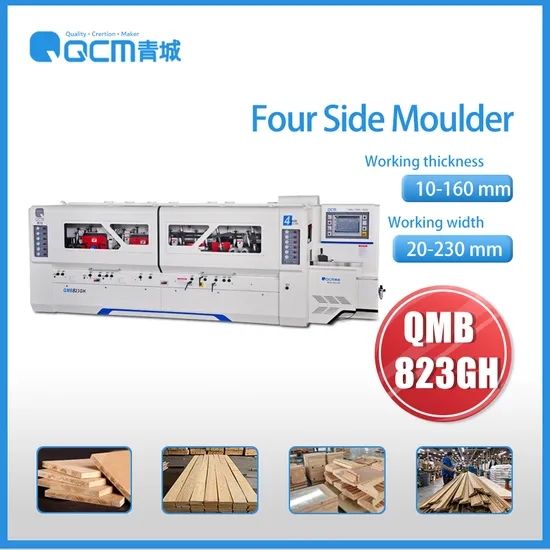

QCM QMB823GH Wood Four Side Moulder Machine 4 Side Planer And Moulder

Product Description

QCM QMB823GH Four-Side Moulder Wood Four Side Moulder Machine 4 Side Planer And Moulder 4 Head Molder Product Parameters

Technical Parameter
Specifications	Working width	mm	20-230
	Working thickness	mm	10-160
	Min.working length	mm	720/280 (intermittent/continuous)
	Knife shaft number		8
	Dia of spindle	mm	Φ50
	Dia of feeding roller	mm	Φ140
	Feeding speed	m/min	10-60
	Rotation speed of spindle	r/min	7000
	Suction hood dia	mm	8*Φ180
Cutter dia.	Cutter dia of first bottom cutter	mm	Φ140-Φ180
	Left/Right vertical cutter	mm	Φ140-Φ250
	The first and second upper cutter	mm	Φ140-Φ250
	The second bottom cutter	mm	Φ140-Φ250
Power	Total power	kW	91
	The first bottom cutter	kW	7.5
	Left vertical cutter	kW	2*11
	Right vertical cutter	kW	2*7.5
	The First upper cutter	kW	11
	The second upper cutter	kW	11
	The second bottom cutter	kW	11
	Feeding motor	kW	11
	Beam lifting motor	kW	1.1
	Radial adjustment of the vertical spindle	kW	2*0.37
	upper cutter lifting motor	kW	0.75
Dimensions & Weight	Overall dimensions	mm	6580*2080*1960
	Weight	kg	10800

Product Main Features
1. This machine adopts integral casting body with stable performance, good precision and good rigidity;

2. Fully enclosed safety shield and door open power protection, low working noise, safety and environmental protection;
3. The spindle is precisely machined, dynamically balanced, and precisely assembled, so it runs smoothly and has good accuracy;

4. The work surface is made of special materials and special heat treatment, and is hard chrome plated for wear resistance;
5. The feeding system presses materials with three cylinders in the front, middle and back sections, with stable pressure and convenient adjustment;
6. Multiple sets of lower driving rollers are used in the front, middle and back of the worktable to ensure smooth and powerful feeding.
Product Description
Company Profile
About US
QCM Machinery was established in 1970 and have been specializing in production of woodworking machinery for more than 50 years now.
We have our own casting workshop, and more than 300 sets of modern CNC machining equipment and testing equipment, such as Okuma, Mazak, Mitsubishi. Strong R&D team with 55 people can provide our customers with the biggest professional technical support.
Choose our machinery, to help you improve productivity, processing quality, and profit.
Advantages and Service
1. Lead Time?
Within 15 days for regular stock machine after receiving down payment.
45-60 days for customized machines,
60-90 days for busy season.
2. Warranty ?
3 years for machine, 3 years for the core components.
3. Spare Parts?
Unified standards spare parts are available anytime.
4. Voltage?
Regular voltage 380v, 50hz; customized voltage is available.
5. After-sale Service?
24 hours technical support by email, call and video.
our engineer is available to visit at your expenses of accommodation and round tickets.
6. Why us?
1). 50 years experience in woodworking machinery since 1970.
2). Our own casting workshop to insure extra heavy one-piece cast iron machine body for maximum stability and rigidity. Control quality from raw material.
