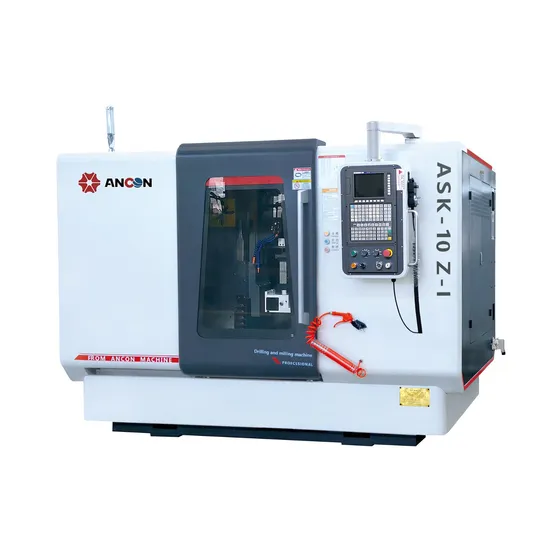

Horizontal Eight-Spindle/Ten-Spindle/Twelve-Spindle Drilling, Milling and Tapping Machine

Product Description

Product Description
Product Parameters
Technical Parameter:

	Item	Unit	Parameter
			ASK-8Z/10Z-F	ASK-12Z
Maximum reaming capacity	Drilling diameter	mm	Φ50	Φ50
Maximum tapping capacity	Tapping diameter	mm	M45	M45
Spindle numbers	Spindle numbers	unit	8/10	8/10/12
Processing range	Stroke distance of X/Y/Z axis	mm	650/350/350	800/350/400
Workbench	Workbench length and width	mm	150×84	150×84
Spindle	Spindle form	-	ER40	ER40
	Rotating speed	r/min	10-3000	10-3000
	Spindle motor power	kw	7.5/Dual motor 5.5	Dual motor 5.5
	Motor power of X/Y/Z axis	kw	1.5/1.5/2	1.5/1.5/2
Precision	Positioning accuracy	mm	±0.01/300	±0.01/300
	Repeated precision	mm	±0.01	±0.01
Machine specifications	Machine dimensions (L×W×H)	mm	2200×2320×1780	2650×2800×2200
	Machine weight	kg	3250	4000
Feed speed	Maximum fast feed rate	m/min	20	20
	Maximum cutting feed rate	m/min	12	12
Control system	Taiwan's syntec system (optional)

Our Advantages
Technical Advantages:
1.We adopts the CNC operation systems from Taiwan Delta Company, and use 8 inch colorful LCD HMI monitor to its human-computer interface. The monitor itself can design simple LCD screen, through which you can edit the system, making the operation easy to learn. Also you can choose PC screen display to edit software, so as to supervise and inspect programs. By computer screen RS232, programs can be transmitted and executed by PC, or transmitted directly by USB.
2.The clamping uses hydraulic double clamping vice, available to install and high accuracy of resetting. Cooling,blowing and clamping are together when products moving.
3.Using double tracking mode for tapping, perfect thread, accuracy tapping depth control and tapping fast.
4.The machine uses a totally enclosed protective cover and automatic left sliding door. It is of easy operation and good water resistance. Its screw-type chip conveyor remove chips quickly and easily.
5.All sliding surfaces are equipped with self-lubricating pump to ensure that the machine could serve long.

Technical High Lights:
1. The whole machine adopts GB-HT300 resin sand castings, which are tempered and naturally aged to eliminate internal stress.
2.The worktable has a fourth-axis, one person can watch multiple machine tools, and can complete product processing at one time.
3.The spindle box and sleeve are ground and processed, with high matching precision and long service life.
4.Each sliding surface uses an automatic lubrication pump device to ensure the service life of the machine.
5.The machine tool adopts a fully enclosed protective cover, which has good waterproof effect and safety; it is equipped with a screw-type chip catcher, which is timely and convenient for excretion.


The predecessor of Ancon Automation is a professional manufacturer dedicated to serving plumbing and sanitary ware, fire valves, door control hardware, home appliance hardware, automobile and motorcycle accessories and other industries to provide it with efficient, accurate, and labor-saving automated processing equipment.In 2013, Delin Intelligent Technology Co., Ltd. invested a huge sum of money to acquire holding Ancon automation, pushing Ancon automation into a brand-new field in various aspects such as technology research and development, supply and production, brand promotion and marketing.

Company Profile
The predecessor of Ancon Automation is a professional manufacturer dedicated to serving plumbing and sanitary ware, fire valves, door control hardware, home appliance hardware, automobile and motorcycle accessories and other industries to provide it with efficient, accurate, and labor-saving automated processing equipment.In 2013, Delin Intelligent Technology Co., Ltd. invested a huge sum of money to acquire holding Ancon automation, pushing Ancon automation into a brand-new field in various aspects such as technology research and development, supply and production, brand promotion and marketing.
We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system.
1.Pre-sale Service System
Please do not hesitate to contact with us If you are interested in machine. We can design the machine you requirements.
2.After-sale Service System
24/7 on line,including mobile/wechat/whatsapp etc. Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.
3.Payment
30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.

After Sales Service
Our Service:
We have strict management system,complete quality guarantee system and fine pre-sale and after-sale service system.
1)Pre-sale Service System
Please do not hesitate to contact with us If you are interested in machine
We can design the machine you requirements
2)After-sale Service System
24/7 on line,including mobile/wechat/whatsapp etc
Our technician is available to visit and go to your place,and they will help your side for installation,maintenance,and training.
1-2 Warranty Period
3)Payment
30% Deposit by TT,and The rest 70% by photos or you can check the quality on our factory before they shipment.
