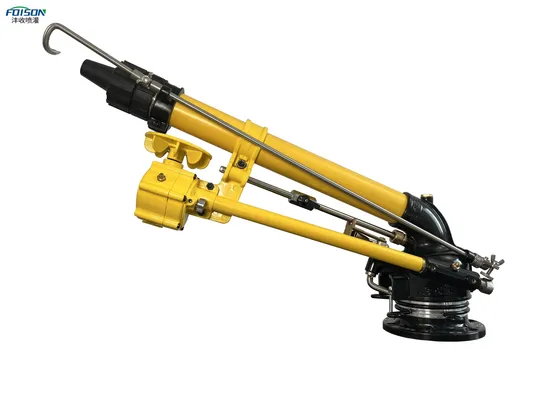

Foison Irrigation Use Far Range Watering Big Gun Sprinkler Spray Gun Whatsapp: 0086-18658226303
Basic Info.
Model NO.
FAN50ADJ-S
Power Source
Pressure
Drainage & Irrigation Mode
Sprinkler Irrigation Equipment
Pump Type
Immersible Pump
Material
Metal
Ground Drainage and Irrigation Machinery Type
Pumping Irrigation
Certification
ISO9001:2008, CCC, CE, GMP
Condition
New
Application Field
Agriculture, Livestock, Aquaculture, Fisheries, Forestry
Warranty
1 Year
After-sales Service
1 Year
Color
Silver
OEM
Yes
Transport Package
Export Carton
Specification
87*23*29
Trademark
FOISON
Origin
China
HS Code
8424200000
Production Capacity
20000/Month
Product Description
| Model | FSN50 | Model | FSN50ADJ | |||||
| Material | Al,nylon,ss | Material | Al,nylon,ss | |||||
| Use | Agriculture,forestry,garden,dust removal | Use | Agriculture,forestry,garden,dust removal | |||||
| Connection | 2" Flange | Connection | 2" Flange | |||||
| Working pressure | 0.2-0.7MPa | Working pressure | 0.2-0.7MPa | |||||
| Range | 26-53m | Range | 26-53m | |||||
| Sprinkler type | 360°Adjustable | Sprinkler type | 360°Adjustable | |||||
| Spray angle | 24° | Spray angle | 24° | |||||
| D (mm) | P (Mpa) | Q (m³/h) | G (m) | U (mm) | P (Mpa) | Q (m³/h) | G (m) | |
| 0.2 | 17.8 | 26 | 0.2 | 17.8 | 26 | |||
| 16 | 0.3 | 21.8 | 28 | 16 | 0.3 | 21.8 | 28 | |
| 0.4 | 25.2 | 32 | 0.4 | 25.2 | 32 | |||
| 0.5 | 28.1 | 35 | 0.5 | 28.1 | 35 | |||
| 0.3 | 27.1 | 32 | 0.3 | 27.1 | 32 | |||
| 18 | 0.4 | 31.6 | 35 | 18 | 0.4 | 31.6 | 35 | |
| 0.5 | 35 | 38 | 0.5 | 35 | 38 | |||
| 0.6 | 38.7 | 41 | 0.6 | 38.7 | 41 | |||
| 0.3 | 31.2 | 36 | 0.3 | 31.2 | 36 | |||
| 20 | 0.4 | 36 | 40 | 20 | 0.4 | 36 | 40 | |
| 0.5 | 40.3 | 43 | 0.5 | 40.3 | 43 | |||
| 0.6 | 44 | 46 | 0.6 | 44 | 46 | |||
| 0.4 | 42.2 | 41 | 0.4 | 42.2 | 41 | |||
| 22 | 0.45 | 44.8 | 43 | 22 | 0.45 | 44.8 | 43 | |
| 0.5 | 47.8 | 45 | 0.5 | 47.8 | 45 | |||
| 0.6 | 51.8 | 48 | 0.6 | 51.8 | 48 | |||
| 0.4 | 49.2 | 43 | 0.4 | 49.2 | 43 | |||
| 24 | 0.45 | 52.2 | 45 | 24 | 0.45 | 52.2 | 45 | |
| 0.5 | 55 | 47 | 0.5 | 55 | 47 | |||
| 0.6 | 60.3 | 50 | 0.6 | 60.3 | 50 | |||
| 0.4 | 56.7 | 45 | 0.4 | 56.7 | 45 | |||
| 26 | 0.5 | 63.4 | 48 | 26 | 0.5 | 63.4 | 48 | |
| 0.6 | 69.6 | 51 | 0.6 | 69.6 | 51 | |||
| 0.7 | 80 | 56 | 0.7 | 80 | 56 | |||
| Model | FSW50ADJ-S | ||
| Material | Al,nylon,ss | ||
| Use | Agriculture,forestry,garden,dust removal | ||
| Connection | 2" Flange | ||
| Working pressure | 0.2-0.7MPa | ||
| Range | 26-56m | ||
| Sprinkler type | 360°Adjustable | ||
| Spray angle | 0-48° | ||
| Speed: | Adjustable | ||
| D (mm) | P (Mpa) | Q (m³/h) | G (m) |
| 0.2 | 17.8 | 26 | |
| 16 | 0.3 | 21.8 | 28 |
| 0.4 | 25.2 | 32 | |
| 0.5 | 28.1 | 35 | |
| 0.3 | 27.1 | 32 | |
| 18 | 0.4 | 31.6 | 35 |
| 0.5 | 35 | 38 | |
| 0.6 | 38.7 | 41 | |
| 0.3 | 31.2 | 36 | |
| 20 | 0.4 | 36 | 40 |
| 0.5 | 40.3 | 43 | |
| 0.6 | 44 | 46 | |
| 0.4 | 42.2 | 41 | |
| 22 | 0.45 | 44.8 | 43 |
| 0.5 | 47.8 | 45 | |
| 0.6 | 51.8 | 48 | |
| 0.4 | 49.2 | 43 | |
| 24 | 0.45 | 52.2 | 45 |
| 0.5 | 55 | 47 | |
| 0.6 | 60.3 | 50 | |
| 0.4 | 56.7 | 45 | |
| 26 | 0.5 | 63.4 | 48 |
| 0.6 | 69.6 | 51 | |
| 0.7 | 80 | 56 | |
