Advanced Horizontal Decanter Centrifuge for Efficient Liquid Separation

Product Description

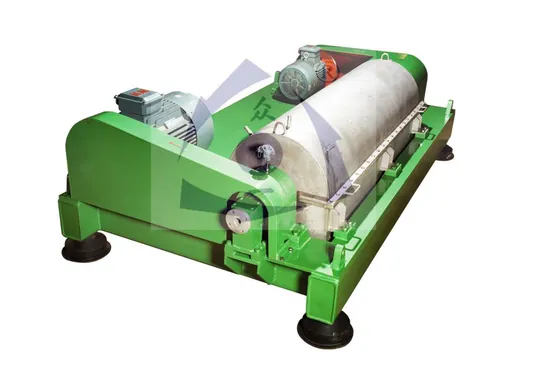

Horizontal Decanter Centrifuge

Introduction :Centrifuge LW series is a kind of horizontal spiral discharge and continuous operation solid liquid seperation sedimentation centrifuge. Capable of continuous feeding, separation and unloading at full speed.
Application :It is suitable for separating suspensions containing solids with a density greater than that of liquid phase, solids with a particle size greater than 0.005mm and a concentration range of 2-40%. It is applicable to chemical industry, light industry, pharmacy, food, environmental protection and other industries
Machine structure

Product Parameters
Technical Parameters

Model	Bowl Diameter (mm)	Bowl length (mm)	Speed(r/min)	G .Force	Feed M³/h	Main motor KW	Back motor KW	Weight (kg)	Dimensions L×W×H (mm)
LW245x980-N	245	980	5400	4000	0.5~4	7.5~11	3	1000	1898×1200×715
LW380x1140-N	380	1140	4000	3405	3~15	22~30		2500	2400×1820×1100
LW380x1520-N	380	1520	4000	3405	3~15	22~30	5.5~7.5	2800	2745×1570×859
LW450x1092-N	450	1092	3800	3639	6~25	30~37		3000	2300×2240×1260
LW450x1350-N	450	1350	3800	3639	6~25	30~37	7.5~11	3200	2580×1730×1260
LW450x1800-N	450	1800	3800	3639	6~25	30~37	7.5~11	3800	3234×1730×1260
LWF450x1458-N	450	1458	3800	3639	6~25	30~37	7.5~11	3500	3390×1730×1260
LW520x1560-N	520	1560	3500	3567	10~35	37~75	11~ 15	4100	4062×1248×1429
LW520x2080-N	520	2080	3500	3567	10~35	37~45	11~15	5000	4537×1248×1429
LW520x2080-NA	520	2080	3500	3567	10~35	37~45	11~ 15	5600	4582×1248×1429
LW520x2288-N	520	2288	3500	3567	20~45	55~75	18.5~22	6500	4885×1248×1429
LW650x1820-N	650	1820	2800	2854	30~80	55~110		7200	4200×2280×1500
LW650x2400-N	650	2400	2800	2854	30~80	55~90	22~37	8500	4750×2280×1500
LW720x1800-N	720	1800	2600	2726	40~80	60~120		9200	4304×2915×1473
LW720x2880-N	720	2880	2600	2726	40~80	60~120	30~45	11000	5384×2915×1473
LW800x2880-N	800	2880	1900	1617	80~150	80~50	37~55	15000	5384×3005×1495
LW1120×2580-N(G)	1120	2580	1250	980	80~180	200~225		19000	5980×3700×1620

Special tips:
1. The technical parameters shall be subject to the product specification.
2. During the inquiry, the customer shall inform the material characteristic parameters and working conditions in detail.
3. According to the special needs of customers, we can adopt personalized design and manufacturing:
4. Material: the material of the material contact part can be ordinary stainless steel, special stainless steel or titanium alloy.
5. Motor type: ordinary or explosion-proof single speed motor can be used.
6.It can be designed and manufactured according to GMP specifications.
7. Other technical requirements can be negotiated.
Detailed Photos
Packaging & Shipping
Company Profile
Company Profile
Hunan Zhongyi Centrifuge Co., Ltd., the former Xiangtan County centrifuge Plant Co., Ltd., has been specialized in centrifuge design, production and service for more than 60 years. It is located in the scenic Xiangjiang River scenic spot, the hometown of the great man Mao Zedong; It is a high-tech equipment manufacturing enterprise, a member of China separation machinery industry association, a national high-tech enterprise, and a private science and technology enterprise in Hunan Province.
Hunan Zhongyi Centrifuge Co., Ltd. has been engaged in the design, production and service of centrifuges for a long time. The company has strong technical force, with an excellent management team, an honest and dedicated comprehensive technical research and development team and a skilled worker team. The company takes "sincerity and dedication, build quality products" as its purpose, and adheres to the principle of "quality first, reputation first, service first, and continuous improvement" The quality system control and scientific management of the whole process of production and manufacturing, product installation and after-sales service are implemented to serve users sincerely.
Our main products include pusher centrifuge, decanter centrifuge, siphon peeler centrifuge, screw-bowl scrolling centrifuge,top-suspended centrifuge,GMP standard flat plate centrifuge, namely automatic bottom discharge centrifuge,flat plate bag suspend discharge centrifuge, etc.
Our company mainly designs production process equipment, including separation machinery CAD system, large double column vertical lathe, horizontal numerical control machine tool, precision dynamic balancing machine, vibration aging expert system, ultrasonic flaw detector, precision vibration detector, centrifuge on-site overall dynamic balancing system, protective welding equipment, metering equipment, etc., which fully meet the requirements of equipment design, manufacturing and testing.
The production line project of our company with an annual output of 500 large centrifuges has been approved by the state, and a new production base of 30000 square meters is under construction. Our company implements production, sales and after-sales service.

Certifications
ISO9001-2015
Patent of Centrifuges in 2020 to 2022
