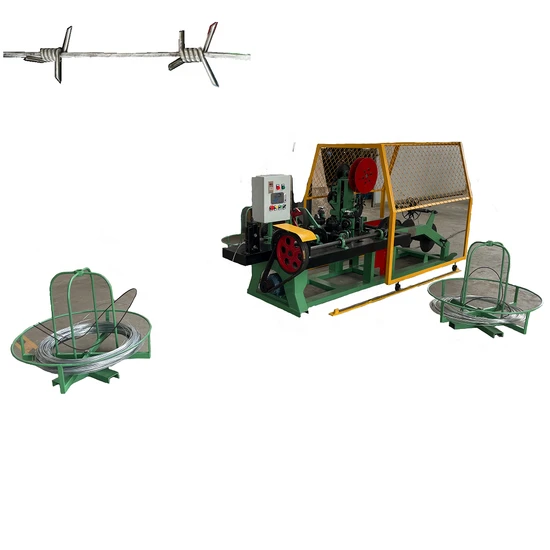

High Speed Best Quality Bob Wire Making Machine/Barbed Wire Making Machine

Product Description

Metal Tech Barbed Wire Making Machine is a specialized equipment used for producing barbed wire (i.e., iron or steel wire mesh with barbs). Below is a detailed introduction to the Barbed Wire Making Machine:
I. Types and Characteristics
Barbed Wire Making Machines come in various types, including fully automatic, semi-automatic, and models with different twisting methods such as traditional twisting and double twisting. These machines typically possess the following characteristics:
High Efficiency:They can produce barbed wire continuously and stably, improving production efficiency.
Easy Operation: With a reasonable design, they are simple to operate, reducing operational difficulty and labor costs.
Flexible Adjustment: They can adjust the specifications, sizes, and shapes of the barbed wire according to customer needs, meeting diverse demands.
II. Main Technical Parameters
The main technical parameters of Barbed Wire Making Machines include motor power, machine weight, wire diameter range, and barb spacing. These parameters vary by model but are usually adjustable within a certain range. For example, some models have a motor power of 3kW, a machine weight of 1000kg, a wire diameter range of 2.0-3.0mm, and multiple options for barb spacing such as 7.5cm, 10cm, 12.5cm, and 15cm.
III. Application Fields
Barbed wire produced by Barbed Wire Making Machines is widely used in agricultural fencing, safety protection, defense, and other fields. Especially in places where it is necessary to prevent animal intrusion or unauthorized personnel entry, barbed wire has been widely applied for its unique protective effect.

Item	Unit	CS-A	CS-B	CS-C
Motor power	kw	2.2	2.2	2.2
Voltage	v	220V.60HZ
Main shaft speed	r/min	402	355	355
Strand wire diameter	mm	1.6-3.0	1.8-3.0	1.6-2.8
Barb wire diameter	mm	1.6-2.8	1.8-2.2	1.6-2.2
Barb pitch	inch	3/4/5/6	3/4/5/6	4/5/6
Twist number	/	3-5	3	7
Raw material	/	Galvanized wire, PVC coating wire, black wire etc
Production	/	20m/min	17m/min	17m/min
Weight		1100KG	950KG	1100KG
HS code	8463300000
Packing size	3300x1250x1500m

PRODUCT SHOW

No	Item	Data
1	Power	3KW
2	Model	8200x5200x 1500mm LXWXH
3	Weight	1250kg
4	Wire diameter	1.6-3.0mm
5	Output Capacity	120kg/hour twist wire diameter 2.8mm bared wire 2.2mm
6	Life Time	10-12 years
7	Main shaft rotation speed	405rpm
8	Working aera	5700x4800x 1500mm LXWXH

COMPANY PROFILE
TRADE SHOWS
CERTIFICATE

PACKAGING&TRANSPORTATION
FAQ
1.What is your company main products: A: We are manufactuer of wire drawing machine ,gabion machine ,nail making machine, chain link fence making machine, barbed wire making machine etc. 2.what is your service: A:We supply 5 stars service system,pls contact us for the details. 3.Do your machines are standard or custom made: A: We can custom made for each client ,according to the final products' parameters , also we offer custom made for the power ,electric parts etc. 4.What is the delivery time? A. Usually 30- 60 days , it depends the machine and season. 5.What is your time of warranty: A:12 months after commissioning or 18months after shipment. Whichever first is in valid. (it is excluding wear parts. Shipping cost for parts to be replaced during warranty period has to be borne by the customer).And we will offer 1 time 1 year free maintenance for our VIP client.
