UV Exposure Equipment Irradiation Chamber

Product Description

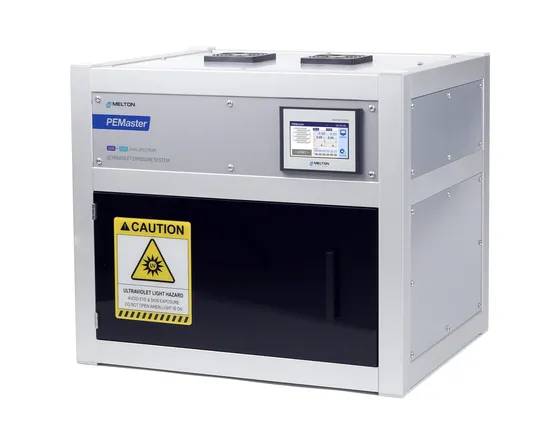

EXCLUSIVE DISTRIBUTORS ARE WANTED GLOBALLY! PLEASE CONTACT US FOR DETAILS. Product Description The PEMaster irradiation chamber is a compact and advanced UV light exposure system designed specifically for biological experiments. This tabletop unit is equipped with four independently controlled UVA/UVB light sources, allowing precise real-time monitoring and control of irradiation intensity and dosage. It is ideal for various phototoxicity and efficacy testing studies, ensuring accurate and consistent results across multiple biological samples.
Lamps are interchangable. No tool is needed for lamp replacement.
Product Parameters Technical Data

Dimensions	55 x 40 x 60 cm
Interior Chamber	40 x 25 x 50 cm
Power consumption	120 W
Irradiance UVA	0-3.0 mW/cm2
Irradiance UVB	0-3.0 mW/cm2
Operating temperature	0-40 ºC
Sample temperature	ambient +5ºC
Lamp Lifetime	up to 2000 h
Sensors	2, fully digital
PC interface	touchscreen
UVA Measuring range	0-2000 mW/cm2
UVB Measring range	0- 200 mW/cm2
UVA Dose resolution	0.1 mJ/cm2
UVB Dose resolution	0.1 uJ/cm2
Spectral ranges	UVA, UVB, UVC, or LUX

Detailed Photos
Applications:
The PEMaster system is versatile and can be used for a variety of biological tests, including but not limited to:

Application	Test/Guideline
3T3 NRU Phototoxicity Test	OECD TG432
ROS Reactivity Photoreactivity Test	OECD TG495
Reconstructed Epidermal Cell Model Phototoxicity Test	OECD TG498
Keratinocyte and Epidermal Sunscreen Efficacy Test	-
Fibroblast and Full Skin Model Photoaging Efficacy Test	-
Photodamage Repair Efficacy Test	-
Custom Phototoxicity Models and Mechanism Research	-
Irradiation of bacteria and cell cultures
Photostability testing
UV and daylight material testing
Post-treatment for rapid prototyping
UV curing, sealing and bonding
