70 Ton Hydraulic Excavator with Good Price

Product Description

PRODUCT DESCRIPTION

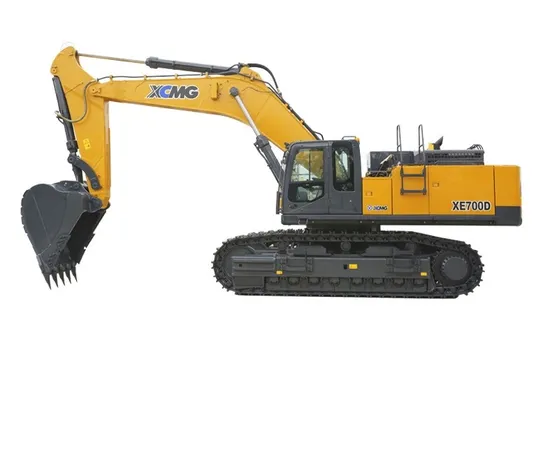

70-ton new hydraulic crawler drilling excavator
1. The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the
maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2. The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3. The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket
ensure strong soil holding capacity.
Specifications

Project	Unit	Parameter
Operation weight	(Kg)	68000
Bucket capacity	(m³)	2.8~3.8
Output power	(kw/rpm)	336/1800
Bucket digging force	(kN)	288
Max. digging height	(mm)	11350
Max. digging depth	(mm)	6900
Max. digging reach	(mm)	11580

Features & Applications
The widened track shoes guarantee low ground pressure, high stability, and powerful traction to fulfill precise horizontal
operations.
The wet type of steering clutch and brake can prolong the service life and are interlinked with each other to guarantee the
rapid and flexible steering controls by joysticks.
It can complete the digging, handling, and landfill operations of earthworks and is suitable for the engineering constructions
for roads, farms, water conservancy projects, municipal projects, and energy projects.
