Economic Vertical Milling Machine Xk7126/Xh7126 Small CNC Milling
| US$9,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
XK7126
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Spindle
Bt40 or Bt30
Tool Magazine
16 or 12
Table Size
800*260
T-Slot
14-3-80
Product Name
CNC Milling
Travel X/Y/Z
450/320/420
Rapid Moving of X/Y/Z
15
Spindle Speed Range
8000
Spindle Power
3.7
Belong to
Vertical Milling Machine
Weight
2400
Useful
CNC Machine
Max.Loading Capacity of Table
200
Tools Numbers
0 or 12
Transport Package
Iron Pallet and Plywood Case
Specification
X travel 450
Trademark
ALLWAY
Origin
China
HS Code
845951
Production Capacity
1000PCS/Year
Product Description
Economic Vertical Milling Machine XK7126/XH7126 Small CNC MillingAdvantage:
1.High performance and price ratio ;
2.Semi-protect shield sheet is more competitive price.
3.Standard configuration without tool magazine, much more cheaper.
1. Production introduce and use
XH7126 vertical machining center the overall rational layout is compact, stable performance and reliable quality, which can realize the X, Y, Z three-axis linkage, widely used in mechanical processing of aerospace, mould, automobile, internal combustion engines, textile machinery industries.
2. Main structure characteristic
X, Y, Z adopts linear guide, made by Taiwan, greatly improve the machining accuracy and efficiency of the machine.Three-way feed adopts large pitch, high-precision ball screw, three-axis servo motor and ball screw adopt direct connection form, adopt imported non-clearance elastic coupling, drive no clearance, small inertia, high transmission rigid, to ensure the positioning accuracy of the machine;The ball screw support adopts pre-tensile structure, which greatly reduces the influence of thermal deformation on the accuracy of the machine during the long running time.
3. Standard configuration of XH7126/XK7126
| items | remark | |
| 1 | Cnc controller: | FANUC OI MF(5) |
| 2 | Main motor: | Servo 3.7KW3.7KW |
| 3 | Feeding motor: | 3 axis Servo motor BIS8. |
| 4 | Spindle: | Taiwan 8000rpm 8000rpm. |
| 5 | Magazine tool: | Domestic brand umbrella type 12T/Taiwan cylinder (XK7126 without magazine tool) |
| 6 | Linear guide | Taiwan/ |
| 7 | Ball screw | domestic |
| 8 | bearings | domestic |
| 9 | Oil Pump | domestic |
| 10 | Water pump | domestic |
4. Small cnc milling machine Option configuration
GSK,Siemens.etc.
Semi-protection
4th axis
5.Main technical parameters
| items | unit | value XH7126(XK7126 ) | |
| talbe | Table size | mm | 800×260 |
| T-slot size T | mm | 14×3×80 | |
| Max.loading capacity of table | Kg | 200 | |
travel | Travel X,Y,Z | mm | 450×320×420 |
| Spindle nose to work table | mm | 90-510 | |
| Spindle center to column guideway face | mm | 330 | |
feeding | Rapid moving of X,Y,Z | m/min | 15,15,15 |
| Feeding speed X,Y,Z | mm/min | 1-6000 | |
spindle | Spindle nose taper | BT40 | |
| Spindle speed range | r/min | 8000rpm | |
| Spindle power | kW | 3.7 | |
accuracy | Position accuracy of X/Y/Z | mm | ±0.015 |
| Re-position accuracy | mm | ±0.0075 | |
| magazine tool | Tools numbers | pcs | 12(XK7126 without magazine tool) |
| Max. weight of tools | Kg | 8kg(XK7126 without magazine tool) | |
| Max. size of tools | mm | Φ130×300(XK7126 without magazine tool) | |
| other | Overall dimension | mm | 2200×1900×2200 |
| weight | Kg | 2400 |

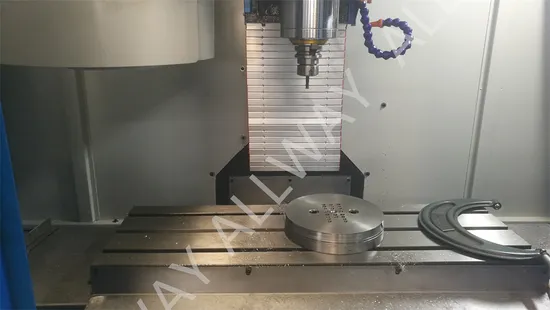

5. a simple test sample
Always create value for customers. Develop together with customers!
