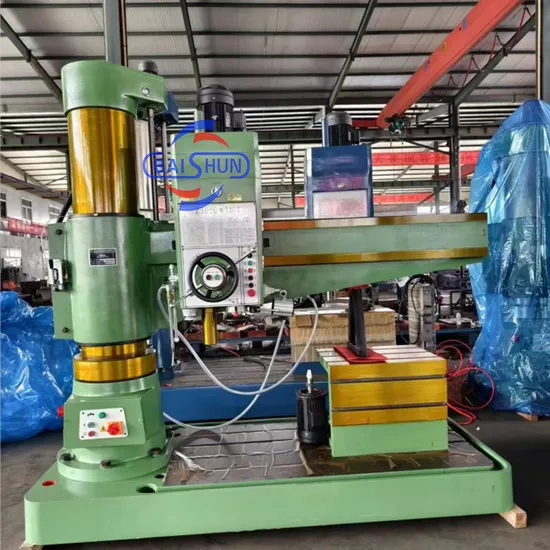

China High Speed Hydraulic Deep Hole Z3080X20 Metal Radial Drilling Machine Price

Product Description

Product Description
Radial drilling machine is widely used in single piece and small and medium batch production to process holes of workpieces with large volume and weight. The radial drilling machine has a wide processing range and can be used to drill various screw holes, threaded bottom holes and oil holes of large workpieces. The radial drilling machine is used to process small and medium-sized holes on heavy or porous workpieces. It is mainly composed of a base, a column, a rocker arm, a spindle box, a spindle worktable, etc. When the radial drilling machine works, the radial arm can rotate around the column, and the spindle box can move radially on the radial arm. In this way, the drill can be aligned with the axis of each hole to be machined for hole processing. It is flexible to use. Generally, the workpiece is clamped on the workbench when drilling. When machining large workpieces, the workpieces can be clamped on the base of the drilling machine. According to the different heights of the workpiece, after loosening the locking device, the rocker arm can move up and down along the column to make the headstock and the drill at the proper height.
Product Parameters

Specification	Z3032X10	Z3040X14	Z3050X16	Z3063X18	Z3080X20
Max drilling diameter (mm)	32	40	50	63	80
Distance between spindle axis and coulumn(mm)	170-1100	260-1210	350-1500	400-1600	550-1600
Spindle travel(mm)	120	260	350	400	450
Spindle taper(morse)	MT4	MT4	MT5	MT6	MT6
Number of spindle speeds	6	12	12	16	16
Steps of spindle feeds	3	3	4	16	16
Radial ratation angle	360	360	360	180	180
Main motor (kw)	1.5	2.2	4	5.5	7.5

Detailed Photos
Company Profile
FAQ
Q: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Our Service?
1). Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
2). Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
3). After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation,commissioning and training your workers.
Q: How About The Motor?
A: We use domestic Chinese-famous motors,but you can choose Siemens or other brand motor as your requirement.
Q: How long does it take to make a product?
A: It depends on size and type of machine.Normally, small size machine takes around 7-30 days, larger one takes around 30-60 days.
A:Yes, we provide testing videos in factory for each machine before shipment.
For more detail specification please ph: +86 17838375098
