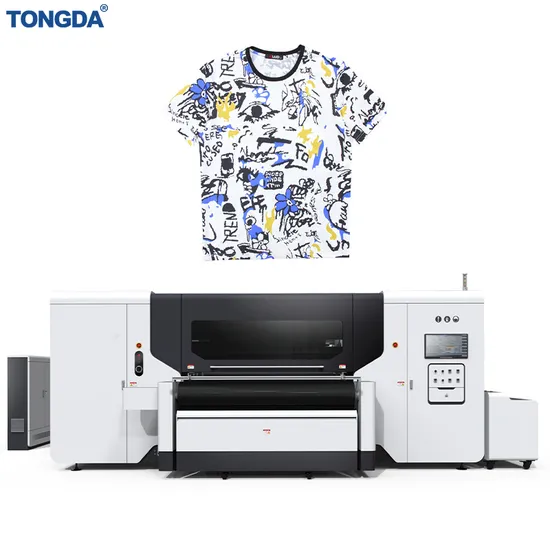

High-Speed Digital Printing Machine for Textile Fabrics
| US$103,100.00-117,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TD1832
Material
Silk Fabric
Voltage
380V
Load Capacity
1000-2000kg
Certification
CE
Warranty
1 Year
Customized
Non-Customized
Condition
New
Speed
Gen6 1 Pass:540m2/H 2 Pass:330m2/H
Effective Print Width
1800/2200/2600mm
Fabric Conveyance Mode
Adhesive Belt with Cleaning and Heating System
Rip Software
Neostampa/Texprint
Main Ink Tank
10L
Interfacepower Voltage
Optical Fiber
Transport Package
Standard Export Package
Specification
5195mm*2200mm*1750mm
Trademark
TONGDA
Origin
China
Packaging & Delivery
Package Size
519.50cm * 220.00cm * 175.00cm
Package Gross Weight
4950.000kg
Product Description
Main technical parameters| Product mode | TD1832 | |||||
| Print head | Ricoh GEN5E/GEN6 | |||||
| Fabric conveyance mode | Adhesive belt with cleaning and heating system | |||||
| Effective print width | 1900/2200/2600mm | |||||
| Maximum printing resolution | 2400DPI | |||||
| Speed | Gen6 1 pass:1300m2/h 2 pass:650m2/h | |||||
| RIP software | Neostampa/Texprint(ORIGIN) | |||||
| Printing part introduction | Automatic negative pressure ink supply, automatic car lifting,automatic positive pressure cleaning, automatic moisturizing,sprinkler anti-collision system. | |||||
| Main ink tank | 15L | |||||
| Belt system introduction | Automatic drying and winding system, automatic cleaning guide belt system, anti-pressure roller print, synchronous pressure roller | |||||
| Dryer unit | 3 tiers industry dryer with off plane | |||||
| Ink Type | reactive/disperse/acid/pigment ink | |||||
| InterfacePower voltage | Optical fiber | |||||
| Print head height | Height adjustable 1.5-30mm,to adapt medium of different thickness | |||||
| Power voltage | 380V, 3L+N+G(with independent reliable effective earth wire) | |||||
| Power frequency | 50HZ/60HZ+1HZ | |||||
| Power Consumption | Printer: 40kw; oven:6KW | |||||
| Workshop Condition | Temperature:20-30°C, humidity: 50-65% | |||||
| Effective width | ||||||
| size | 1900mm | 2200mm | 2600mm | |||
| Printer | 5300mm*3450mm*2200mm(L*W*H) | 5700mm*3450mm*2200mm(L*W*H) | 6100mm*3450mm*2200mm(L*W*H) | |||
| Dryer | 6400mm*3800mm*2700mm(L*W*H) | 6800mm*3800mm*2700mm (L*W*H) | 7200mm*3800mm*2700mm(L*W*H) | |||
| Ink cabinet | 1760mm*700mm*995mm(L*W*H) | |||||
| Weight | Printer:6200Kg The bakery: 5000kg | Printer:8000Kg | Printer:10000Kg | |||
