Heavy Duty Automatic Door Drive Capacity 1000kgs-1800kgs

Product Description

Heavy Duty Automatic Door Drive capacity 1000kgs-1800kgs
Heavy Duty Door Operator
Heavy Duty Door Operator is nice in appearance and flexible in operation, furnished with the function of heat-preservation, has good sealing performance and necessary safety. It can be controlled in two ways: manual or electrical operation. This kind of door can be applied to shopping Mall and large factory building and so on.
Specifications:
17 years automatic door experience

ISO9001 quality control

CE certificated
3 year guarantee

Great flexibility,OEM capacity
Low noise and easy installation adjust
Heavy duty door operator the standard kits include following:

1	Center computer Control	1 unit
2	Brushless Motor	1 unit
3	Power Switch	1 unit
4	H-18 Aluminium Rail	4.2 m
5	Combined Terminal Block (access control panel )	1 set
6	Hanging Twin Wheel	4 units
7	Belt Roller	1 pkg
8	Medium	10 pcs
9	Stopper	2 pcs
10	Active Brace	1 pc
11	Passive Brace	1 pc
12	24 G Microwave Sensors	2 pcs
13	Remote control switch	2 pcs
14	Safety bema sensor	2 pcs
15	Active & Passive Screw	8 pcs
16	Door Screw	8 pcs
17	Wire Clamp	5 pcs
18	Chain	10 m
19	Block Screw	8 pcs

Product features:
1.Automatic heavy duty door operator.
2.Monitored battery back-up system for use on emergency .
3.Up to 6000mm opening widths.
4.Single slide or bi-parting action.
5.Door leaf weight up to 1000kg (single) or 1800kg(bi-parting per door leaf)
6.Sound-damping with replaceable track rail.
Packaging and Delivery
Packaging Detail :Standard carton with foam interleaver as follow picture
Delivery Detail: Within 7 days
Technical Parameters :

H-18 Automatic heavy duty door operator
OPEN WAY	SINGLE SIDE SLIDING	DOUBLE SIDES SLIDING
TYPE	H-18	H-18S
DOOR WEIGHT	1000Kg×1(door)	900Kg×2(door)
DOOR WIDTH	Dw=500mm~6000mm	Dw=500mm-6000mm
INSTALL WAY	Surface install	Surface install
MOTOR	DC24V BRUSHLESS DC MOTOR
MICRO-CONTROLLER	Standard Micro-controller
POWER CONSUMPTION	180W
VOLTAGE	AC80~250V (regulable )
ENVIRONMENTAL TEMPERATURE	-20°C to +50°C
VOLUME	60 decibels (max)
STARTING SPEED	500mm(second)	410mm(second)
STARTING TIMES	0.5-20sec (regulable)
TRANSMISSION IMPORTANT CONDITION	RACK BELT150 S8M
OPENING DOOR RANGE	FULL/HALF-OPEN (regulable )
PFC POWER EFFICIENCY	0.95(in AC 100V Full load)

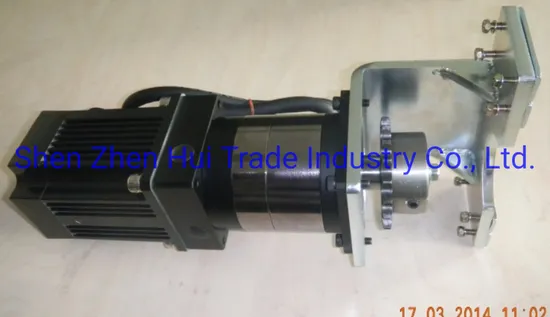

Brushless DC Motor :
