High-Quality, Red Mpp Metallized Polypropyene Film Capacitor for Reliable Performance
| US$0.0142-0.0172 | 1,000 Pieces (MOQ) |
Basic Info.
Model NO.
HMPP CBB21
Packaging Type
Through Hole
Capacitance
0.001UF~3.3UF
Structure
Fixed Capacitor
Manufacturing Material
Polypropylene
Electrolyte
Air Medium
Usage
Low Frequency Coupling
Tuning
Polystyrene Capacitor
Filter
Paper Capacitor
Reference Standard
GB/T 14579 (IEC 60384-17)
Climatic Category
40/105/21
Rated Voltage
100V,250V,400V,630V,1000V,1250V
Transport Package
Standard Carton CTN Box (Loose in Bags)
Trademark
Hongfarad
Origin
China(Mainland)
HS Code
8532220000
Production Capacity
500000/Month
Product Description

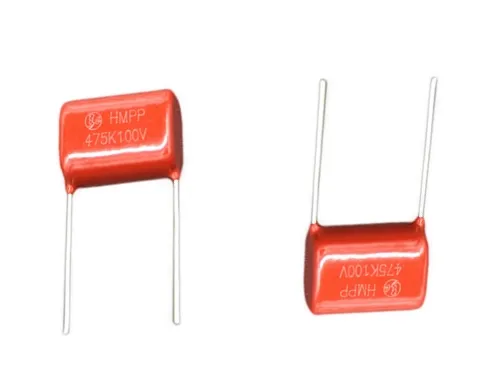

High-Quality, Red Mpp Metallized Polypropyene Film Capacitor for for Reliable Performance*
Product Description Features
1. Metallized polypropylene structure
2. Low loss at high frequency
3. Small inherent temperature rise
4. Flame retardant epoxy resin powder coating (UL94 V-0)
Typical Applications
1.Widely used in high frequency , DC,AC and pulse circuits2.Providing optimum performance with small size in S-correction circuits for colour TV set3.Specially designed for S-correction circuits of large screen monitor and colour TV4.Suitable for the situation where applies high frequency and high current pulse
Specifications
| Reference Standard: | GB/T 14579 (IEC 60384-17) |
| Climatic Category : | 45/105/21 |
| Rated Temperature: | 85ºC |
| Operating Temperature Range: | -40ºC~105ºC +85ºCto+105ºC:decreasing factor 1.25% per ºC for UR) |
| Rated Voltage: | 100V,250V,400V,630V,1000V,1250V |
| Capacitance Range: | 0.0010μF~3.3μF |
| Capacitance Tolerance: | ±5%(J),±10%(K),±20%(M) |
| Voltage Proof: | 1.6UR(5S) |
| Dissipation Factor: | ≤10*10-4(1KHz,20ºC) |
| Insulation Resistance: | ≥100 000MΩ, CN≤0.33μF ≥30 000S, CN>0.33μF (20ºC,100V,1min) |
Outline Drawing
Dimensions(mm)
| Rated Cap. | 100VDC | 200/250VDC | 400VDC | 630VDC | |||||||||||||||||
| W | H | T | P | d | W | H | T | P | d | W | H | T | P | d | W | H | T | P | d | ||
| max | max | max | ±1.0 | ±0.05 | max | max | max | ±1.0 | ±0.05 | max | max | max | ±1.0 | ±0.05 | max | max | max | ±1.0 | ±0.05 | ||
| 4700pF | 13.0 | 9.0 | 5.0 | 10.0 | 0.6 | ||||||||||||||||
| 5600pF | 13.0 | 9.5 | 5.0 | 10.0 | 0.6 | ||||||||||||||||
| 6800pF | 13.0 | 10.0 | 5.0 | 10.0 | 0.6 | ||||||||||||||||
| 8200pF | 13.0 | 11.0 | 5.5 | 10.0 | 0.6 | ||||||||||||||||
| 0.010uF | 10.5 | 9.5 | 5.5 | 7.5 | 0.6 | 10.5 | 10.0 | 5.5 | 7.5 | 0.6 | 13.0 | 11.5 | 6.0 | 10.0 | 0.6 | ||||||
| 0.012uF | 10.5 | 10.0 | 5.5 | 7.5 | 0.6 | 10.5 | 10.5 | 6.0 | 7.5 | 0.6 | 13.0 | 12.0 | 6.5 | 10.0 | 0.6 | ||||||
| 0.015uF | 10.5 | 10.5 | 5.5 | 7.5 | 0.6 | 10.5 | 11.0 | 6.5 | 7.5 | 0.6 | 13.0 | 12.5 | 7.0 | 10.0 | 0.6 | ||||||
| 0.018uF | 10.5 | 10.5 | 5.5 | 7.5 | 0.6 | 10.5 | 11.5 | 7.0 | 7.5 | 0.6 | 13.0 | 13.0 | 7.5 | 10.0 | 0.6 | ||||||
| 0.022uF | 10.5 | 9.0 | 5.5 | 7.5 | 0.6 | 10.5 | 10.5 | 6.0 | 7.5 | 0.6 | 10.5 | 12.0 | 8.0 | 7.5 | 0.6 | 13.0 | 13.5 | 8.0 | 10.0 | 0.6 | |
| 0.027uF | 10.5 | 9.0 | 5.5 | 7.5 | 0.6 | 10.5 | 11.0 | 6.5 | 7.5 | 0.6 | 13.0 | 12.0 | 6.5 | 10.0 | 0.6 | 13.0 | 14.0 | 8.5 | 10.0 | 0.6 | |
| 0.033uF | 10.5 | 9.0 | 5.5 | 7.5 | 0.6 | 10.5 | 11.5 | 7.0 | 7.5 | 0.6 | 13.0 | 12.5 | 6.5 | 10.0 | 0.6 | 18.0 | 13.5 | 7.5 | 15.0 | 0.6 | |
| 0.039uF | 10.5 | 9.5 | 5.5 | 7.5 | 0.6 | 10.5 | 12.0 | 7.5 | 7.5 | 0.6 | 13.0 | 13.0 | 7.5 | 10.0 | 0.6 | 18.0 | 14.0 | 8.0 | 15.0 | 0.6 | |
| 0.047uF | 10.5 | 9.5 | 5.5 | 7.5 | 0.6 | 10.5 | 12.5 | 8.0 | 7.5 | 0.6 | 13.0 | 13.5 | 8.0 | 10.0 | 0.6 | 18.0 | 14.5 | 8.0 | 15.0 | 0.8 | |
| 0.056uF | 10.5 | 10.0 | 6.0 | 7.5 | 0.6 | 13.0 | 12.0 | 7.0 | 10.0 | 0.6 | 13.0 | 14.5 | 8.5 | 10.0 | 0.6 | 18.0 | 15.0 | 8.5 | 15.0 | 0.8 | |
| 0.068uF | 10.5 | 10.0 | 6.5 | 7.5 | 0.6 | 13.0 | 12.5 | 7.5 | 10.0 | 0.6 | 18.0 | 14.0 | 7.0 | 15.0 | 0.6 | 24.0 | 16.0 | 8.5 | 20.0 | 0.8 | |
| 0.082uF | 10.5 | 11.0 | 6.5 | 7.5 | 0.6 | 13.0 | 13.5 | 8.0 | 10.0 | 0.6 | 18.0 | 14.5 | 7.5 | 15.0 | 0.6 | 24.0 | 17.0 | 9.5 | 20.0 | 0.8 | |
| 0.10uF | 10.5 | 12.0 | 7.0 | 7.5 | 0.6 | 13.0 | 14.5 | 8.0 | 10.0 | 0.6 | 18.0 | 15.0 | 8.0 | 15.0 | 0.8 | 24.0 | 17.5 | 10.0 | 20.0 | 0.8 | |
| 0.12uF | 10.5 | 12.5 | 7.5 | 7.5 | 0.6 | 13.0 | 15.0 | 8.5 | 10.0 | 0.6 | 18.0 | 15.5 | 8.5 | 15.0 | 0.8 | 24.0 | 18.5 | 11.0 | 20.0 | 0.8 | |
| 0.15uF | 13.0 | 12.0 | 7.0 | 10.0 | 0.6 | 18.0 | 13.5 | 7.0 | 15.0 | 0.6 | 18.0 | 16.0 | 9.0 | 15.0 | 0.8 | 24.0 | 19.0 | 12.0 | 20.0 | 0.8 | |
| 0.18uF | 13.0 | 12.5 | 7.0 | 10.0 | 0.6 | 18.0 | 14.0 | 7.5 | 15.0 | 0.8 | 24.0 | 14.5 | 8.5 | 20.0 | 0.8 | 24.0 | 20.0 | 12.5 | 20.0 | 0.8 | |
| 0.22uF | 13.0 | 13.0 | 7.5 | 10.0 | 0.6 | 18.0 | 14.5 | 8.0 | 15.0 | 0.8 | 24.0 | 15.0 | 9.5 | 20.0 | 0.8 | 30.0 | 21.5 | 11.0 | 25.0 | 0.8 | |
| 0.27uF | 13.0 | 13.5 | 8.0 | 10.0 | 0.6 | 18.0 | 15.0 | 8.5 | 15.0 | 0.8 | 24.0 | 15.5 | 10.0 | 20.0 | 0.8 | 30.0 | 23.0 | 12.5 | 25.0 | 0.8 | |
| 0.33uF | 18.0 | 13.0 | 7.5 | 15.0 | 0.8 | 18.0 | 15.5 | 9.0 | 15.0 | 0.8 | 24.0 | 16.0 | 10.5 | 20.0 | 0.8 | 30.0 | 24.0 | 13.5 | 25.0 | 0.8 | |
| 0.39uF | 18.0 | 13.5 | 8.0 | 15.0 | 0.8 | 24.0 | 15.5 | 8.5 | 20.0 | 0.8 | 24.0 | 16.5 | 11.0 | 20.0 | 0.8 | 36.0 | 24.5 | 13.5 | 30.0 | 0.8 | |
| 0.47uF | 18.0 | 14.0 | 8.5 | 15.0 | 0.8 | 24.0 | 16.0 | 9.0 | 20.0 | 0.8 | 24.0 | 17.0 | 11.5 | 20.0 | 0.8 | 36.0 | 24.5 | 14.0 | 30.0 | 0.8 | |
| 0.56uF | 18.0 | 16.0 | 9.0 | 15.0 | 0.8 | 24.0 | 16.5 | 9.5 | 20.0 | 0.8 | 30.0 | 22.0 | 12.0 | 25.0 | 0.8 | ||||||
| 0.68uF | 18.0 | 16.5 | 10.0 | 15.0 | 0.8 | 24.0 | 17.0 | 10.5 | 20.0 | 0.8 | 30.0 | 23.5 | 13.0 | 25.0 | 0.8 | ||||||
| 0.82uF | 18.0 | 17.5 | 10.5 | 15.0 | 0.8 | 24.0 | 18.0 | 11.0 | 20.0 | 0.8 | 30.0 | 24.0 | 13.5 | 25.0 | 0.8 | ||||||
| 1.0uF | 24.0 | 18.0 | 11.0 | 20.0 | 0.8 | 24.0 | 19.0 | 12.0 | 20.0 | 0.8 | 30.0 | 25.0 | 14.0 | 25.0 | 0.8 | ||||||
| 1.2uF | 24.0 | 19.5 | 10.5 | 20.0 | 0.8 | 30.0 | 22.0 | 12.0 | 25.0 | 0.8 | |||||||||||
| 1.5uF | 24.0 | 19.5 | 11.0 | 20.0 | 0.8 | 30.0 | 23.0 | 13.0 | 25.0 | 0.8 | |||||||||||
| 1.8uF | 24.0 | 20.5 | 11.5 | 20.0 | 0.8 | 30.0 | 24.0 | 13.5 | 25.0 | 0.8 | |||||||||||
| 2.2uF | 24.0 | 21.0 | 12.5 | 20.0 | 0.8 | 30.0 | 25.5 | 14.0 | 25.0 | 0.8 | |||||||||||
| 2.7uF | 30.0 | 22.0 | 13.0 | 25.0 | 0.8 | 30.0 | 27.0 | 16.0 | 25.0 | 0.8 | |||||||||||
| 3.3uF | 30.0 | 22.5 | 14.5 | 25.0 | 0.8 | 30.0 | 28.5 | 18.0 | 25.0 | 0.8 | |||||||||||
| For inquiry of items out of above range or with special dimensions, please do not hesitate to contact with us for availability. For inquiry of items out of above range or with special dimensions, please do not hesitate to contact with us for availability. | |||||||||||||||||||||
