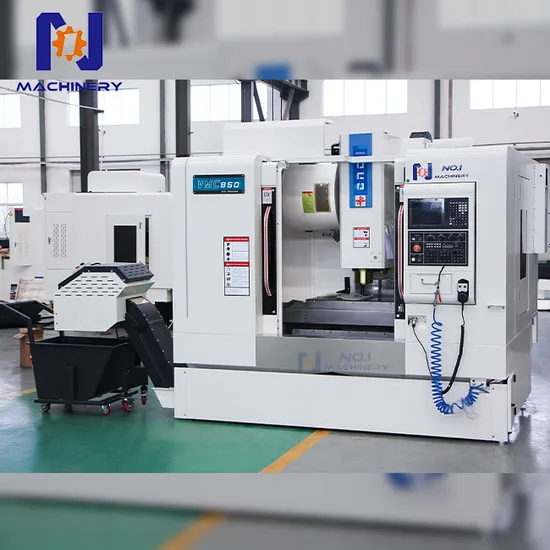

Vmc850 CNC Vertical Milling Machine 4/5 Axiscnc Vmc 855 Vertical Machining Center

Product Description

Product Description


The machining center series products are mainly used for the production of precision molds, automotive
parts, aerospace parts, batch processing of high-precision parts for regular production, etc.And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling,tapping,boring ,etc.

Specification

Item Model	Unit	VMC850
Size of worktable	mm	1000*500
T-shaped groove for table	mm	5-18*102
Maximum load on table	kg	400
X/Y/Z rail width	mm	35/35/35
X/Y/Z ball screw specification	mm	3616/3616/3616
X/Y/Z Axis stroke	mm	800*500*500
X/Y/Z motor torque	NM	15/15/22(Contracting brake)
Spindle face to table position	mm	110-610
Distance from Spindle Center to column	mm	524
Cutting feed rate	mm/min	1-8000
X/Y/Z axis fast feed	m/min	48/48/36
Spindle end taper/diameter	mm	BT40-150
Spindle motor power	kw	7.5
Maximum spindle speed	rpm	8000
Form of Tool Bank	-	Disc
The capacity of knife storage	tools	24
Maximum tool diameter/weight	mm/kg	78/120/8
Tool change time	sec	2.5
Positioning accuracy	mm	0.008
Repeat positioning accuracy	mm	0.005
The smallest unit of positioning	mm	0.005
Weight of machine tool	kg	5100
External dimensions	mm	2800*2350*2650

Details Display
1.Taiwan KENTURN BT40 Spindle, Optional 8000, 10000, 12000rpm

2.OKADA 24 TOOLS, Automatic tool changing system 24-ATC

3.Hand pulse, Air gun, Water gun



4.Yunnan HT300 resin sand casting, tempering elimination internal stress, high copper density, long time use no deformation.
5.SIEMENS,KND,FANUC,MITSUBISHI,GSK and other operating systems can be selected according to customer requirements
6.Safety electrical components Quick plug as standard Make the machine performance better.
