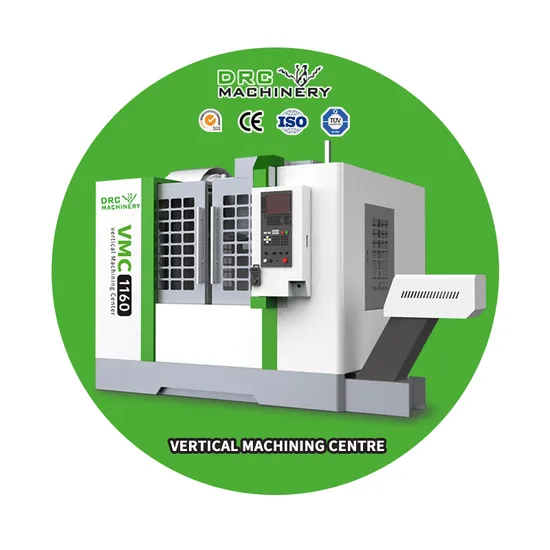

High Precision CNC Milling Machine Vmc1160 Manufacturer Supports Processing Vmc Machine Center
Basic Info.
Model NO.
VMC1160
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE
Condition
New
Vmc1160
CNC Vertical Machining Center
Machining Center
Vertical Machining Center
High Quality Vmc1160
Vmc
Vertical Machining Center
5 Axis Machine Center
X /Y/Z Axis Travel
1100/600/620mm
Spindle Nose to Table Surface
120-620mm
Spindle Center to Column Surface
550mm
Table Size
1000/550mm
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 3100/2550/2900mm
Trademark
DRC
Origin
China
Production Capacity
500
Product Description
CNC 3/4/5 axis VMC1160 Milling Machine/Taiwan Vertical Machining Center/CNC Vertical Milling Machine
VMC machine tool inherits the advantages of strong rigidity, symmetrical structure, and strong stability of the traditional vertical CNC milling machine, and introduces international advanced dynamic rigid design concepts to optimize the design of moving parts. The machine tool has large torque and good quick response characteristics, which is suitable for the needs of various machining fields such as automobiles, molds, aerospace,
, and hardware.
Product Parameters
| Model | VMC 1160 (GSK system) |
| Travel parameters of 3 axis | |
| X /Y/Zaxis travel | 1100/600/620mm |
| Spindle face to table distance | 120-720mm |
| Distance between spindle center and column guide surface | 675mm |
| Worktable parameters | |
| Worktable size | 1200×600mm |
| Maximum load bearing of worktable | 1000kg |
| T Shot | 5×18×120mm |
| Feeding parameters | |
| X/Y/Z axis rapid movement rate | 24/24/24m/min |
| Feed moving velocity X, Y, Z | 1-10m/min |
| Spindle parameters | |
| Main shaft connection | Belt |
| Spindle taper | BT40-150 |
| Range of spindle speed | 8000rpm |
| Spindle motor power | (Alternating current servo)11kW |
| ATC paremeters | |
| ATC capacity | 24qty |
| Maximum tool size | Φ350/250mm/Φ150mm(tool from a distance) |
| Maximum tool weight | 8kg |
| Precision | |
| PositionaI accuracy(JIS standard) | ±0.008/300mm |
| Repeated positioning accuracy(JIS standard) | ±0.005mm |
| Shape and weight | |
| Machine size | 3100×2550×2900mm |
| Weight | 6800kg |
