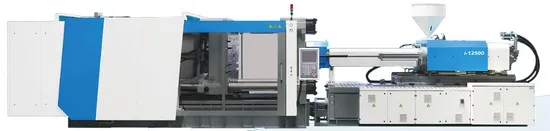

SM-700T Model High Efficiency Energy Saving Servo European Design Pet Preform PVC Tubes Fruit Vegetable Basket and Standard Injection Molding Machine

SM-700T Model High Efficiency Energy Saving Servo European Design Pet Preform PVC Tubes Fruit Vegetable Basket and Standard Injection Molding Machine

US$81,000.00-85,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
SM-700T
Type
Preform Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Certificate of Origin
1
Certificate of Fumigation
1
Packing List
1
Commercial Invoice
1
Easy Broken Parts
1
Transport Package
Wooden Pallet and Dust Cover
Trademark
K&E
Origin
China
HS Code
8477101090
Production Capacity
500/Y

Product Description

Platen Drawings Check out our SM-700T Model High Efficiency Energy Saving Servo European Design Pet Preform PVC Tubes Fruit Vegetable Basket and Standard Injection Molding Machine. This preform injection machine is perfect for producing plastic products such as PVC tubes and fruit/vegetable baskets. With its energy-saving servo technology, it ensures high efficiency and precision. Our machine comes with a 12-month warranty and engineer installation and debugging services. Get yours now!
Parameters:
SPECIFICATION SM-750
SCREW TYPE A B C D
Injection Unit
Screw diameter mm 85 90 95 100
Screw L/D ratio L/D 23.3 22 20.8 20.8
Shot volume(theoretical) CM3 2835 3179 3542 3925
Injection weight(PS) g 2580 2893 3223 3572
Injection rate g/s 480 538 599 664
Injection pressure Bar 2020 1800 1620 1450
Screw speed rpm 135
Clamping Unit
Clamping force KN 7000
Open stroke mm 970
Space between tie-bars(W*H) mm 970*920
Max mould height mm 980
Min mould height mm 380
Ejector stroke mm 260
Ejector force KN 207
Others
Max pump pressure Bar 16
Motor pump power Kw 37+37
Heating power Kw 544.3
Machine dimension(L*W*H) M 10.1*2.3*2.7
Oil tank cubage L 900
Machine weight Ton 32

Product Description: Introducing the SM-700T Model High Efficiency Energy Saving Servo European Design Injection Molding Machine. This machine is perfect for producing plastic products such as preforms, PVC tubes, fruit and vegetable baskets, and more. With its advanced features and reliable performance, it is an excellent choice for any injection molding needs. Enjoy the benefits of energy-saving technology and top-notch after-sales service. Buy now and experience the quality of K&E Machinery (Ningbo) Co., Ltd.
Items Brand/country
Servo
System		 Controller TECHMATION -12' (TAIWAN )
Servo Motor INOVANCE (CHINA)
Servo Drive INOVANCE (CHINA)
Oil Pump ECKERLE (Germany) or SUMITOMO (JAPAN )
Electric
Unit		 Stroke transducer NOVO or FLTCH (Germany)
Breaker (France ) or LS (Korea )
Contactor (France ) or LS (Korea )
Air Switch (France )
Location /Speed Sensor (France )
Hydraulic
Unit		 Hydraulic Direction Valve YUKEN (Japan)
Proportion back-pressure valve North man (Taiwan)
Plasticizing hydraulic Motor DAN DUN (ITALY)
Hydraulic Hose MANULI(ITALY) or GOOD YEAR (USA)
Hydraulic Sealing ring All Italy and Japan
Others
Unit		 Mechanical safety Standard
Electric safety Standard
Mold close fast Standard
Injection Unit Linear guide-way
Air core 1pcs
Hydraulic Core 1pcs
T slots and screw holes Standard
Servo system Compared with the other manufacturers is big, Overload ability strong and stable.
