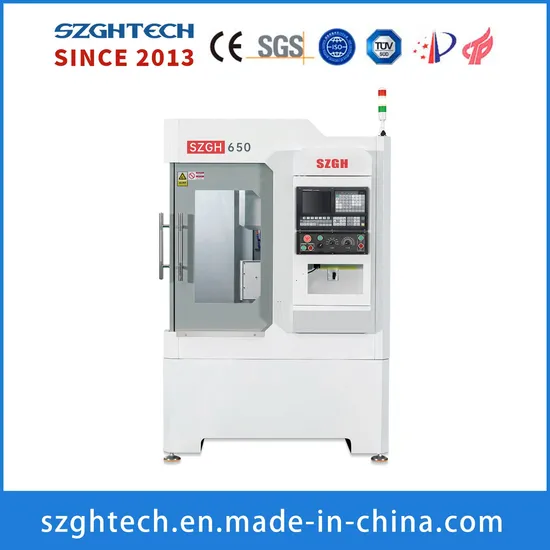

Metal Universal Ys-540 650 Horizontal and Vertical Turret CNC Milling Machine

Product Description

Product Description
Metal Universal YS-540 650 Horizontal and Vertical Turret CNC Milling Machine
https://www.made-in-china.com/sendInquiry/prod_XFOaqHUAHpfY_SOqtUifEgYHK.html?plant=en&from=shrom&type=cs&style=3&page=p_detail
Product Overview
SZGH-540 650 is on the basis of YS-540 or YS-650, a 4-axis rotary table or a 5-axis rotary table can be added to realize the function of completing multi-faceted three-dimensional processing in one clamping.It is widely used in mold making and other functions that require drilling and tapping or three-dimensional carving on multiple surfaces.Among them, YS-540 can support up to 8 station tool magazines on the basis of adding external shafts, and YS-650 can support up to 10 station tool magazines on the basis of machining external shafts.

Project		YS-540	YS-650
Processing capacity	Max. drilling diameter	Aluminum φ14mm/ Steel φ10mm	Aluminum φ40mm/ Steel 30mm
	Max. Tapping Diameter	Aluminum m10mm/ Steel m8mm	Aluminum m25mm/ Steel m20mm
	Max. milling cutter diameter	φ60mm	φ100mm
	Max Spindle speed	5000rpm/9000rpm/30000rpm	6000rpm/24000rpm
	Handle Type	BT30	BT40/BT30
	Magazine capacity	6 gangs/8 magazines	10 gangs/12 magazines
	Repeatability	0.01mm	0.01mm
	Surface engraving accuracy	±0.06mm/±0.01mm	±0.02mm/±0.01mm
workbench	Distance from table surface to spindle end	Minimum 150mm Maximum 350mm	Minimum 150mm Maximum 450mm
	Effective stroke of working surface	500mm*400mm	600mm*500mm
Travels	X-axis effective travel	400mm	500mmm
	Y-axis effective travel	500mm	600mm
	Z-axis effective travel	200mm	300mm
Feed	X-axis rapid traverse	30m/min	30m/min
	Y-axis rapid traverse	30m/min	30m/min
	Z-axis rapid traverse	25m/min	25m/min
	Various cutting suggested speeds	10m/min	10m/min
Spindle	Max.Spindle Speed	5000rpm/9000rpm/30000rpm	6000rpm/24000rpm
	Spindle Motor Power	2.6km/3.7kw/4.5kw	3.7km/5.5kw/7.5kw
	Spindle type	mechanical spindle/ electric spindle	mechanical spindle/ electric spindle
	Spindle taper	BT30	BT40/BT30
Dimensions	Dimensions	1350*1050*2050mm	1650*1800*2450mm
	Total Weight	1900kg	2900kg

The above configuration parameters are for reference,and the configuration listed in the price composition and physical acceptance shall prevail.

Machine tool specifications and component items		YS-540	YS-650
Part Specifications	Screw	25mm Taiwan precision p grade	32mm Taiwan precision p grade
	Guide rail	25mm Taiwan Precision C3 Grade	32mm Taiwan Precision C3 Grade
	Spindle	BT30 spindle	BT40/BT30 spindle
	Feeding servo	X.Y750kw,&1.2kW	X.Y1.2kw,&1.5kW
	Spindle servo motor	2.6kW/3.7kw/4.5kw	3.7kW/5.5kw/7.5kw
	Tool magazine	6 /8 magazines	10/12 magazines
	Base form	1200kg Heavy-duty anti-deformation patented base	1800kg Heavy-duty anti-deformation patented base
Optional 4 axis	4 axis center height	125mm/170mm	125mm/170mm
	4 axis motor power	0.75kw/1.2kw	0.75kw/1.2kw
	4 axis system	SZGH	SZGH
	4 axis servo	SZGH	SZGH
Optional 5 axis	5 axis center height	160mm	160mm
	5 axis motor power	0.4kw/0.75kw	0.4kw/0.75kw
	5 axis system	SZGH	SZGH
	4 axis servo	SZGH	SZGH

Product Features
*The key components are equipped with high-quality wear-resistant configurations from Taiwan, which makes the machine tool more durable within the design accuracy range.
*The weight is enough to support the anti-vibration and improve the accuracy and smoothness.
*Equips with auto lubrication system to ensure transmission system smoothly and long-term running.
*Adopt SZGH electric control package to make electromechanical cooperation play the best efficiency.
*The high rigidity cast base and gantry provide confidence of perfect stability and high precision when the operation.
*3.7 kW, 6000 RPM spindle motor with BT30 shank, equipped with 6-station linear pneumatic tool changer, which can change tools more efficiently.
OPTIONAL ACCESSORIES
Application

Company Profile
SZGHTECH is a manufacturer of CNC systems and industrial robot arms with more than ten years of industrial experience. We have been committed to providing customers with the best industrial automation solutions. Our company is clearly structured and includes R&D, production, sales and technical support departments to ensure that we can provide the best possible service.
Our products and services include CNC systems, industrial robot arms, supporting software and training services. Our CNC systems and robotic arms are suitable for a wide range of industries and fields. Our software and training services help customers get up to speed quickly and understand the best way to use their products.
Our strength and uniqueness lies in the excellent quality of our products and reasonable prices. We continuously invest in R&D to keep up with the latest developments in the industry. Our technical support team is always on hand to ensure that our customers' equipment remains in top condition and downtime is reduced.
Our vision is to be an industry leader and provide customers with the best industrial automation solutions. Our mission is to help our customers increase efficiency and reduce costs while improving production quality. Our team consists of a group of experienced and passionate professionals who will do their best to provide the best service to their clients.
If you are interested in our products and services, please feel free to contact our sales team or technical support team, we look forward to helping you.
Packaging & Shipping

FAQ
1. Who are we?
We are based in Guangdong, which provides CNC total solutions&Robot arm. Such as welding Robot arms, painting robot arms, handling robot arms, grinding robot arms, and scara robot, which has independenttechnical teams and over 10 years of technical and overseas sales experience. sell to Eastern Europe(20.00%), Mid East(20.00%), Southeast Asia(15.00%), Southern Europe(10.00%), South America(8.00%), North America(5.00%), Western Europe(5.00%), Eastern Asia(4.00%), Central America(4.00%), Northern Europe(4.00%), Africa(3.00%), Domestic Market(2.00%).
2. How can we guarantee the quality?
Always finishing a pre full testing by our professional engineers;
Always final 100% Inspection before shipment.
3. Where is our factory located? How can I visit there?
Our factory is located in Henggang Street, Longgang District, Shenzhen City, Guangdong Province, China. You are warmly welcome to visit our factory.
4.What is the delivery time?
The full series of standard models are in stock. For a customized one, it depends.
5.What services can we provide?
1).Accepted Payment Currency:USD,EUR,CAD,HKD,CNY;
2).Accepted Payment Type:T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash, Escrow;
3).Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian, Korean, Italian, and so on.
6.What is the warranty period?
After-sale service: The warranty period is 12 months. Meantime, we provide free online technical support. The technical response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
7.How can I choose the most suitable machines?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model.
You can also send us the products drawing ,we will choose the most suitable machines for you.
8.Does your cnc support booting logo exchange?
Yes, no problem.
