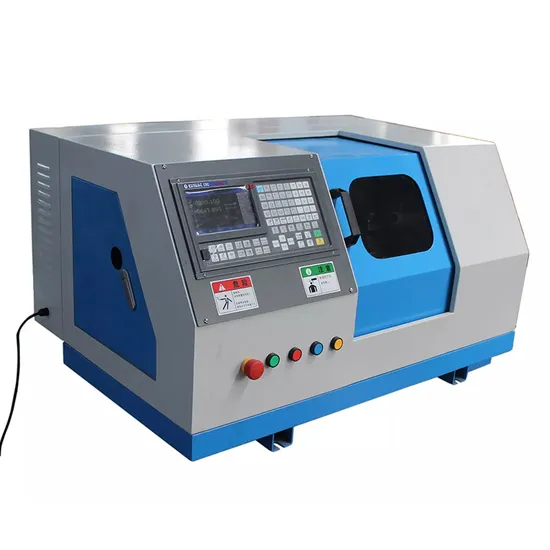

Machine Price Metal-Cutting Tools Sumore Flat Bed Traning CNC Lathe

Product Description

Product Description
210mm Swing DIY Hobby Mini Metal CNC Lathe CNC210 for Mold Watch Auto Parts School Training Education Most Popular Benchtop GSK Mini CNC Lathe Machine for Hobby DIY Education Laboratory Mold Watch CK210 CNC210 SP2120ML CK6128 CK6130
SP2120 210mm Swing DIY Hobby Mini Metal CNC Lathe CNC210 for Mold Watch Auto Parts School Training Education is new machine and we won't provide used cnc lathe machine, this light industrial cnc lathe machine is for job work, it's quite competitive in the market. It is made in China but has similar quality as made in Taiwan cnc lathe, but it has the same quality as made in German cnc lathe machine. Features / advantage of cnc lathe machine is as below:
Quick detais
1.Swing over bed:200mm
2.Work piece:380mm
3.Spindle bore:20mm
4.Tool stange:4 ways
5.Control system:Mach3
6.Power:150W
Feartures
1. Engineers from high grade castings.
2. The lathe bed is made of heavy casting. It has gone through at least twice aging quality tests and ultrasonic frequency quenching.
3. Induction hardened bed.
4. The cutting tools carrier is equipped with 4-station tool holder.
5. All machines have to pass the check list of the machine precision before shipment
6. Can process precisely internal or external diameter, face, taper, arc and threading with high efficiency
7. Electric turret installed.
8. Fully enclosed protective cover.
Product Parameters

Model	SP2120ML
Swing over bed	210mm
Distance between centers	250mm
Width of bed	100mm
Spindle bore	26mm
Spindle speed	50-2250r/min
Spindle taper	MT3
Z-axis moving	2000mm/min
X-axis moving	1000mm/min
Z-axis feeding	500mm/min
X-axis feeding	250mm/min
Z-axis travel	250mm
X-axis travel	80mm
Tool position	4
Angle of the tool post	360°
Tape of tailstock	MT2
Z,X-axis position accuracy	0.01mm
Position accuracy of tools	0.005mm
Main motor power	600W/1.1KW
Packing size(L×W×H)	1260×820×1360mm
Weight(n.w/g.w)	160/200kg
Control system	GSK SIEMENS MACH
Application	DIY Hobby Education School Laboratory
Working material	Nylon Aluminium Steel Copper
Usage	Metal Parts Machining
Function	Turning
Max. swing over bed	210mm or 180mm or 250mm OEM
