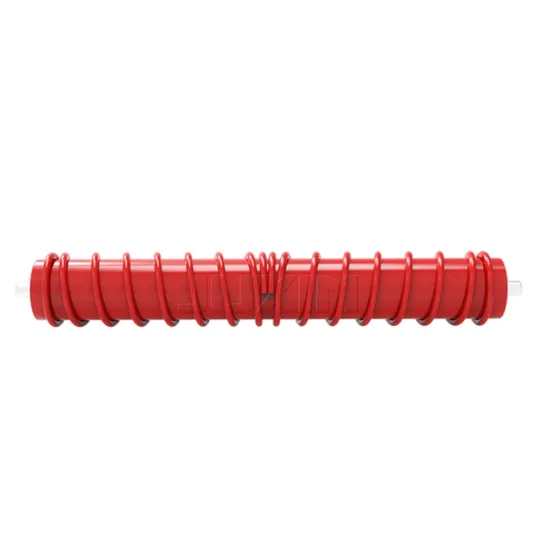

Spiral Return Roller Steel Idler Belt Conveyor

Product Description

Product Description

Description	CEMA, DIN, JIS, AS, SABS, ISO Standard Design & JUXIN ODM
Pipe	1) Material : Q235 carbon steel equal to DIN S235JR 2) Roller Diameter : φ63.5mm ~ φ219mm / 2 1/2 inch ~ 8 5/8 inch 3) Roller Length: 150mm ~ 3000 mm 4) Thickness : 3.0 ~6.0 mm
Shaft	1) Material : 45# steel equal to DIN C45 2) Cold-drawn bright round steel 3) Shaft Diameter: 20mm, 25mm, 30mm, 40mm, 45mm, 50mm
Bearing	1) Single Row Deep Groove Ball Bearing 2RS&ZZ with C3 clearance 2) Brand: SKF,FAG,NSK,HRB, LYC, ZWZ or according to your requirement
Bearing Housing	1) Material : Q235 carbon steel equal to DIN S235JR 2) Cold press working fit ISO M7 accuracy 3) Material thickness: 2.5mm ~ 5.0mm
Seals	1) Labyrinth seal, nylon 6 material 2) JUXIN's patented product
Grease	2# Lithium grease lubricant
Painting	1) Ordinary painting, hot galvanized painting, Powder painting 2) Color: Black, red, yellow, blue or according to your requirement

Detailed PhotosProduct Parameters

Roller No.	D	inch	s	Bearing housing	d	Bearing
	mm		mm	δ	mm
JXGR1	63		3	2.5	20	6204 C3
	76	3	3
	89		3
	102	4	3
	108		3.5
	114	4.5	3.5
	127	5	4
	133		4
	140		4
JXCR 2	76	3	3	3	25	6205 C3
	89		3
	102	4	3
	108		3.5
	114	4.5	3.5
	127	5	4
	133		4
	140	5.5	4
	152	6	4
	159		4.5
	168		4.5
JXCR3	89		3	3.5	25	6305 C3
	102	4	3
	108		3.5
	127	5	4
	133		4
	140	5.5	4
	152	6	4
	159		4.5
	168		4.5
JXCR4	89		3	3.5	30	6206 C3
	102	4	3
	108		3.5
	127	5	4
	133		4
	140	5.5	4
	152	6	4
	159		4.5
	165	6.5	4
	168		4.5
JXCR5	89		3	4	30	6306 C3
	108		3.5
	133		4
	159		4.5
JXCR6	108		4	5	40	6308 C3
	133		4
	159		4.5
	165	6.5	4
	194		6.3

Certifications
Packaging & Shipping
Installation InstructionsPRE-SALES:EQUIPMENT SELECTION
Assisting customers in selecting the most suitable belt conveyor for their specific needs and requirements. Additionally, we offer technical advice and guidance to facilitate informed decision-making on bulk material handling equipment. Furthermore, we can provide the following information: Customized solutions and design services Delivery lead time Equipment operation and maintenance Environmental and safety measures Integration with existing equipmentAFTER-SALES: 24/7 HOTLINE SUPPORT
We have established a hotline to promptly address customer inquiries, feedback, and complaints. Our support is available 24 hours a day, seven days a week. Generally, our engineers will work remotely to resolve your issues.
- We provide training for customers on effective and safe operation and maintenance of the belt conveyor.
- We offer technical support and troubleshooting assistance to address any operational issues or concerns with the belt conveyor.
- We supply spare parts and components as needed, ensuring prompt delivery and compatibility with the specific belt conveyor model.Company Profile
After Sales Service

Q: What is the MOQ? A: 10 sets for idlers;1 pcs for pulley.

Q: What is your delivery time? A: 15-20days after receiving the deposit.

Q: What is the payment term? A: 30% T/T in advance, then 70%T/T before shipment.

Q: Whether customization is supported? A: We accept customization.

Q:Can I get a sample for testing ? A:Yes, sample is available for free.But we don't bear the Express cost.
