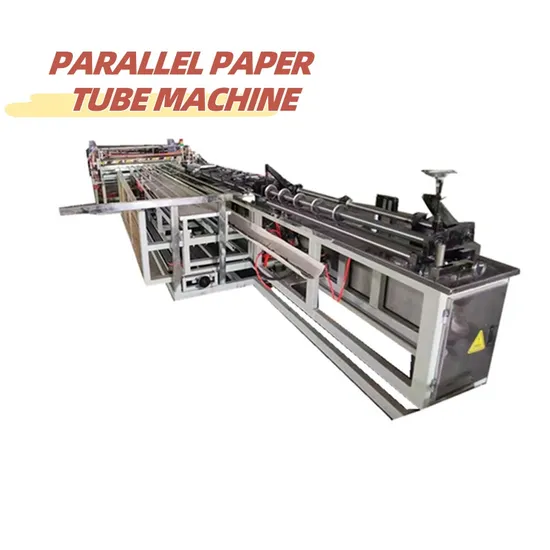

16~76mm Inner Diameter Parallel Paper Core Tube Making Winding Rolling Machine

Product Description

16~76mm Inner Diameter Automatic Flat Roll Parallel Paper Core Tube Making Machinery Product Description Parallel paper tube core making machine is a specialized piece of equipment designed to manufacture paper tube cores in a parallel winding configuration. These cores are essential components in various industries, including textiles, plastics, and paper, where they are used to wind and package materials such as fabrics, films, and paper rolls. The machine efficiently produces high-quality paper tube cores by winding continuous paper strips around a mandrel in a precise, parallel manner.
Here are the key features and functions of a parallel paper tube core making machine:
1. Paper Feed System: The machine has a sophisticated paper feed mechanism that ensures a continuous and even supply of paper strips. This system is crucial for maintaining the consistency and quality of the final product. 2. Mandrel and Winding: The core of the machine's operation involves winding paper strips around a rotating mandrel. The parallel winding technique ensures that the paper layers are evenly distributed and tightly packed, providing a strong and stable paper tube core. 3. Glue Application: During the winding process, adhesive is applied to the paper strips to bond the layers together. This ensures that the core does not unravel or lose its shape during subsequent handling and use. 4. Cutting and Ejection: Once the core is formed to the desired length, it is automatically cut and ejected from the machine, ready for further processing or immediate use. 5. Control System: Modern parallel paper tube core making machines are equipped with advanced control systems that allow for precise adjustments and monitoring of the production process. This includes settings for paper width, glue application, and winding speed, among others. Parallel paper tube core making machines are available in a variety of sizes and configurations to meet the specific needs of different industries and production requirements. They offer efficient, cost-effective, and environmentally friendly solutions for the manufacture of paper tube cores, contributing to the sustainability and productivity of various packaging and manufacturing processes.
Detailed Photos

Technical Specification 1.paper tube outer ring printing text 2. Directly make web paper into paper tubes and randomly cut them into finished paper tubes of required length 3.the paper automatically add water, the paper does not bounce 4. paper glue less, save glue 5. the use of liquid level control, automatic pump glue 6. storage bucket, rubber groove with stainless steel plate design, acid and corrosion resistance 7. Small motor power and low energy consumption 8. All the movements of the whole machine adopt numerical control design to realize full automatic operation 9. All rotating parts that may come into contact with the glue shall be made of wear-resistant alloy materials 10. Obtained two national patents

Product Parameters

The diameter of the coiled tube is Φ 16-76 mm. The maximum length of the paper tube is 1800 mm. The thickness of the paper tube wall is 3-5 mm. The weight of the paper used is 360g ~ 600g/m. The maximum paper width is 1500mm, and the maximum base paper diameter is Φ 1400 mm The production efficiency is 500 ~ 100 pieces /hour. It is controlled by fully automatic, fully computerized and double servo motors.

Certifications
Packaging & Shipping
Company Profile

Qingdao YiDaFa International Trade Co., Ltd is located in Free Trade Zone, Qingdao, Shandong, China. The registered capital of our company is RMB 5 million. We have 6 production areas, 129 team members, including 39 technical experts, who have rich experience in the field of paper machine design. The main products of our company cover a variety of paper machinery, paper products processing machinery and related parts. We have done this business for more than 20 years in China. In 2014, we founded international trade department in order to stand in the international market. Our mission is to be the leader in paper machinery field. Our principle is Science, Quality and Green. As we know, environmental pollution and waste of resources are two prominent problems in the traditional paper industry. To advocate the concept of global environmental protection, each of our paper machines has the advantages of energy saving, high efficiency and reducing pollution. Especially in waste water recycling use, we have unique processing technology. Welcome any customers from all over the world to contact us freely. It is our sincere hope that we can establish a long-term and stable friendship with our strategic partners. Then we will work and explore together to create a brilliant future.

FAQ
FAQ. 1.How to install and maintain the machine?
Firstly, we will provide the installation guild with the machine for your reference.
Secondly, our company is responsible for training production workers for you, ensuring that the workers will be independent operation.
2.How can we get the matching accessories or wearing parts conveniently?
During the warranty, Our company can replace the accessories for free .Out of warranty,we can provide them at the preferable price.
In fact, the wearing parts are standard parts that you could get it in your country at your convenience.
