US$18,888.00-50,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
MH5t-16+4.5+4.5m
Maximum Lifting Weight
<20t
Maximum Lifting Height
15-20m
Operation Form
Crane Console
Main Girder Form
Single Girder
Lifting Speed (M/Min)
4m/Min
Long Traveling Speed
60m/Min
Work Temperature
-40 to +40
Transport Package
Wooden Cases
Production Capacity
50000sets/Year
Product Description

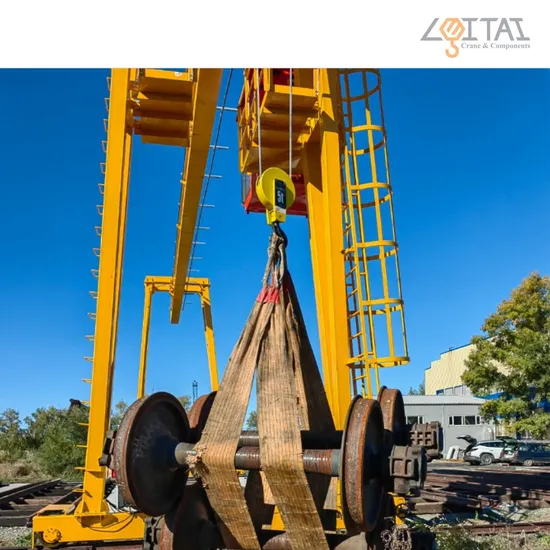

Gantry Crane
Gantry crane are a cost-effective alternative wherever the installation of bridge cranes is impractical due to a need for a raised runway structure. They are also an ideal supplement to bridge cranes at the workstation level. It can lower the investment on structure and space.
The Gantry Crane can be designed into different type to meet various requirements:
-Semi Gantry crane can minimum the cost and take full advantage of the existing building construction.
-Truss Gantry Crane can be applied where the speed of wind is high
-Gantry Crane with cantilevers to meet the requirement of loading and unloading on side area.
-The rubber-Tired gantry crane is a kind of special equipment, mainly used for lifting, transferring and loading the prefabricated concrete box girder in the concrete prefabricated beam field.
| Gantry Crane Inquiry Questionnaire |
| Basic Information: |
| NO | Description | Answer |
| 1 | Box type, Truss type or rubber tired type | |
| 2 | Lifting Capacity (t) | |
| 3 | Span (m) | |
| 4 | Cantilever Length(m) | |
| 5 | Lifting Height (Under Hook) | |
| 6 | Work Duty Grade (FEM/ISO) | |
| 7 | Long Travel Length (m) | |
| 8 | Control Model | Cabin, Pendent or Remote control | |
| 9 | Is installed accessories required? Like crane rail, bus bar etc. | |
| 10 | Power Supply( V, HZ, P ) | |
| Lifting and Travelling Requirement: |
| 11 | Lifting Speed(m/min) | |
| 12 | Cross Travel Speed (m/min) | |
| 13 | Long Travel Speed (m/min) | |
| Site Conditions: |
| 14 | Outdoor Or Indoor | |
| 15 | Wind Speed(m/min) | |
| 16 | Which product will be lifted? | |
