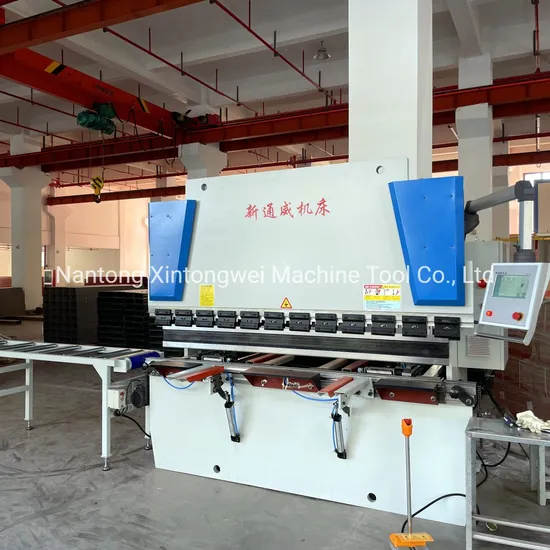

Automatic Channel Cable Tray Bending Machine C Channels Press Brake

Product Description

Channel Cable Tray Bending Machine Product Description With the development of the times and the explosion of basic construction, the Cable Tray industry is becoming more and more popular, so the quality of the cable tray is more and more stringent by the engineering unit. The automatic cable tray bending machine developed by XTW Machine Tool will bring great advantages to the cable tray manufacturer. First of all, in terms of quality, the bent cable tray is much stronger than the formed cable tray, including the shape. The second point: With the continuous increase of labor costs, our automatic bending equipment greatly reduces the time of manual operation. One operator can replace three operators (feeding, bending, palletizing, and discharging), and in the production process it reduces operational risks.

Product Parameters

WC67K-63T2500 Cable Tray Bending Machine
No.	Name		Specification	Unit	Remark
1	Norminal Force		630	KN
2	Length Of Worktable		2500	mm
3	Distance Between Uprights		2100	mm	Available for 2000mm Cable Tray Bending
4	Throat Depth		250	mm
5	Maximum Opening Height		350	mm
6	Ram Speed	Un-Load	60	mm/s
		Full-Load	10
		Return	50
7	Main Motor	Model	Y132M-4		Siemens Optional
		Power	5.5	KW
		Speed	1440	RPM
8	Oil Pump	Model	20P		The actual maximum pressure is 25Mpa
		Pressure	31.5	Mpa
9	Boundary Dimension	L	2800	mm	With one discharge table:2200mmX500mmX700mm
		W	1350
		H	2250

Machine Structure
1.Self-designed and manufactured main components of machine tools, overall steel plate welded structure, high strength and rigidity
2. The main structure adopts UGS/CAD/CAE/CAM 3D software for finite element analysis and optimization design
3. Vibration aging is used to eliminate internal stress, and the welds of key parts are tested for flaws
4. The column, upper working slide and lower working table of the machine tool are processed and formed by a floor boring machine and milling machine at one time, which ensures the parallelism, verticality and parallelism of each installation surface.
5. Up-moving bending design, stable work, convenient operation and safety
Electrical system
1. The electrical components meet the national standards, are safe and reliable, have strong anti-interference ability, and the electric control cabinet has heat dissipation function
2, with removable foot switch operation
Back gauge system
The back gauge system is positioned by the servo motor through the ball screw drive. The first bending is performed by manually placing the sheet on the workbench and pressing the foot switch. After the first bending, the electromagnet &pneumatic clamp will position the sheet according to the settings. In this way, automatic bending is realized, and after finished the bending, the cable tray will be pushed by the pneumatic discharge cylinder to the Discharge conveyor rack.

Auxiliary Cylinder(two in the front, two in the behind like orange colored in the PIC)
The function of the auxiliary supporting cylinder is to provide auxiliary support to the sheet when the sheet is bent, and also reduce the impact sound when the cable tray is bent.
Mould
Integaral Mold, high strength and great bending effect.
Lower die total 2500mm long, it has 4 notches on each side, corresponding to the bending needs of the cable trays with different thicknesses.
Equipped with Quick Clamps Company Profile
