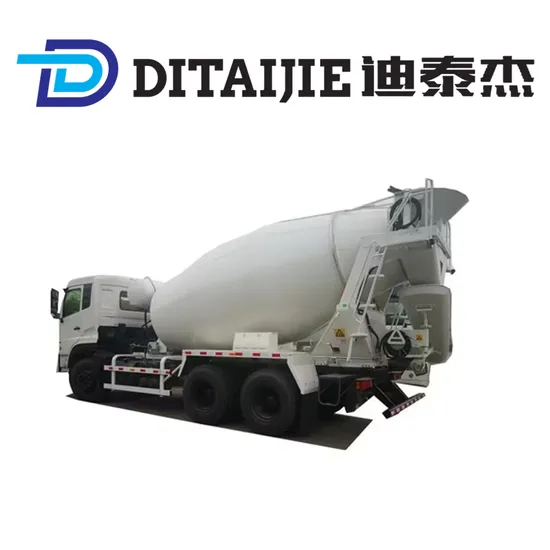

New Dongfeng Kc Concrete Mixer Truck 6X4 Self Loading Mixer Truck 10m3

Product Description

The Dongfeng KC MIXER TRUCK a transit mixer designed for concrete, mortar transport and other infrastructure and construction works.
In terms of power, the Dongfeng KC comes with a 10-cubic meter mixing tank and houses a 10.3-liter diesel YUCHAI engine. This powertrain can put out a maximum output of 375hp and 1,650 N.m of torque which is then connected to a FAST 12-speed gearbox.
For safety, this 10-wheeler mixer truck comes with seat belts as a standard and adjustable driver seat for comfort. Driver information display is also available.

China Dongfeng KC Concrete Mixer Truck 6x4 mixer truck
Mixing tank 8cbm ~ 10cbm ~ 12cbm
Detailed Photos

Main Specification
6x4 Chassis		Body
Overall dimensions (L×W×H)	9080*2500*3990mm	Tank Capacity
Wheel base	3800+1350mm	10cbm Optional 8cbm, 12cbm
G.V.W	25000kg
Curb weight(chassis)	12900kg	Material & Thickness
Load capacity	20000kg ~ 25000kg	Q345
Engine Model	YC6MK375	Cylinder wall thickness 5mm, headthickness 6mm
Maximum power	276kw / 375hp	Standard Equipment
Maximum torque	1650N.m at 1100 -1400rpm	Hydraulic pump
Displacement	10.3L	Hydraulic motor
Gear box	12JSD180T DD FAST Brand	Reducer
Clutch	¢430mm Hydraulic control with air booster, pulling	China brand(Italy or German or America brand optional)
Axle	Front 7T / Rear 13T	Water supply ststem,450L tank , air pressure supply
Brake System	Full air brake system, split pneumatic circuit	Other
Suspension	9/9/13-leaf spring	Charging speed ≥3M3/ min Discharging speed ≥3M3/ min Discharging residual rate ≤0.5%
Tires & Quantity	11.00R20 / 12+1 pcs
Fuel Tank Capacity	350L

Packaging & Shipping Polished, waxed and rustproof before shipment,
using bulk carrier, ro-ro shipment or 40HQ,40FR frame transportation,etc

After Sales Service
A. Guarantee period
1.Date of start:
a. Sea transportation,starting from the very date of the B/L one month later;
b. Land transportation,starting from the very date of customs declaration.
B.Type:
a.Road truck: Within 6 months or terminates 20,000 km, whichever is reached first;
b.Off road truck & engineering truck: Within 6 months or terminates 30,000 km, whichever is reached first;
Scope of Guarantee: within the period of Guarantee, D-truck will guarantee to repair vehicle products manufactured and used by D-truck and vehicle products for which D-truck trademarks are permitted to use by D-truck free of charge, or replace any other parts or repair any other faults that not specifically indicated in Non-Guarantee Terms provided that said parts and faults are damage or occurred due to material defects or defective workmanship. The scope of the non-guarantee terms please see annex 1.
C,Compulsory service
Vehicles manufactured and used by D-truck and vehicles for which D-truck trademarks are permitted to use by D-truck running for 2000~4000km and within six months will enjoy one compulsory service.
NOTE: Normal wear and tear and maintenance are not covered by guarantee
EXPENDABLE ITEMS
Wear and usage takes place over variable time periods, depending on mileage covered, geographical and driving conditions driving behavior etc. These conditions influence to a very great degree the service life of the item in question.
Examples of expendable items:
Oil filters, Bulbs, Brake linings,
Fuel filters, Wiper blades, Coolants,
Air filters, Clutch plates, Oils,
Drive belts for fan, Fuses, Coolant filters,
Exhaust systems (Sistema de escape), Alternator etc.
NOTE: Expendable items are not covered by guarantee.
Annex 1
Scope of the non-guarantee terms
1 No guarantee will be provided to vehicles modified, reworked or changed without permission from D-truck .
1a No guarantee will be provided to vehicles,if it was not made the compulsory service within the vehicles running for 2000~4000km.
2 No guaranteed service will be provided to faults or damages as a result of the following reasons:
2.1 Customers did not use or upkeep the vehicles as per requirements specified in User's Manual and other documents provided by D-truck .
2.2 Improper use or overload of vehicles.
2.3 Appropriate measures had not been taken when the vehicle had failed, failure was impending, or alarm system of the vehicle had issued failure warning, and faults had been aggravated as the result;
2.4 Lead seals had been broken.
2.5 Use of parts or assemblies unauthorized by D-truck .
2.6 Use of lubricating oil, grease or coolant unspecified by D-truck .
2.7 Vehicles were serviced by units unauthorized by D-truck .
3 The following services or adjustments required by normal wear (consumption) and normal maintenance are not within the scope of guarantee:
3.1 The normal wear (consumption) and normal maintenance are the kinds of wear, damage and maintenance that might occur at any time and influenced by driving mileage, weather, environment, condition of use and driving operation.
3.2 Parts subject to normal wear (consumption) include: oil filter, fuel filter element, air filter element, friction disk of brake shoe, clutch driven disk, fan belt, windscreen wiper, bulb, fuse, lubricating oil, grease, coolant, battery electrolyte, fuel, tire, etc.
3.3 Normal maintenance includes: adjustment and repair of various types of valves, fuel injectors, hydraulic pumps, coolant pipes, fuel pipes, oil pipes and air pipes, and adjustment of power steering and clutch control systems.
4 For services within the scope of guarantee, D-truck only bears the guarantee parts but not any other losses and any other chargers which the government stipulated.

FAQ 1. who are we? We are based in Hubei, China, start from 2021,sell to Africa(70.00%),South Asia(20.00%),Southeast Asia(10.00%). There are total about 10-100 people in our company.
2. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3.what can you buy from us?
a.chassis brands: DONGFENG,SINOTRUK,SHACMAN,FAW,FOTON,Beiben,JAC,JMC,,DAYUN,etc.b,type of truck:tractor,Dump truck,water truck,oil tank truck,garbage truck,fire truck,cargo truck, semi-trailer,full trailer,etc
4. why should you buy from us not from other suppliers?
Hubei Ditaijie Industrial and Trading Co, . Ltd. is a professional export and manufacturing service enterprise for commercial vehicles, semi-trailers, used cars and trailers. We provide high quality products and services at low price to foreign customers.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,DDP,etc;
Accepted Payment Currency:USD,CNY,TZS,AOA,etc;
Accepted Payment Type: T/T, L/C,etc;
