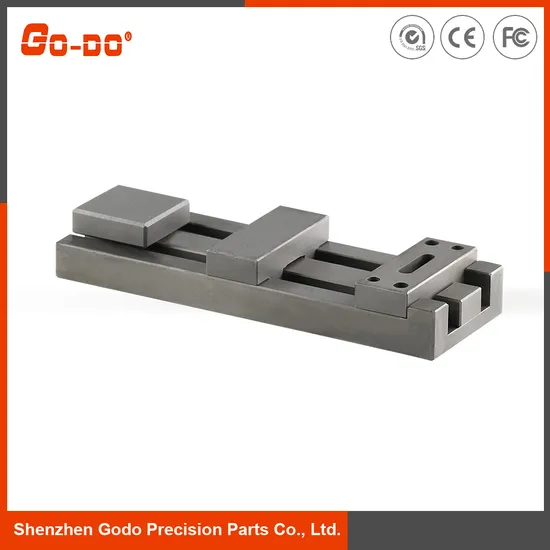

Plastic Injection Metal Mode-Locking Latch
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZZ4
Application
Car, Furniture, Commodity, Electronic, Home Use, Hardware
Design Software
UG
Installation
Fixed
Standard
DIN
Customized
Customized
Precision
High Precision
Mould Material
Customized According to Customer
Shipping
by Sea, by Air and by Express
Condition
New
Material
Metal
Size
as Customers′requirments
Transport Package
1. Plastic Bags. 2. Cartons. 3. Wooden Box
Trademark
G0-D0
Origin
Guangdong, China (Mainland)
Production Capacity
500pieces/Week
Product Description
Plastic Injection Metal Mode-Locking Latch1.internal installation avoids interferences with water line connectors and externally mounted components.
2.Can be used as early return unit,inter latch locks,Two-stage ejectors.
3.Some important parts are made of SKD61,Provide good lubricating while working,longer.
Product Description Mold Parts
| Code | A | B | C | D | E | F | E1 | E2 | E3 | E4 | E5 | E6 | E7 | L | L1 | L2 | L3 | L4 | L5 |
| Z4-11-1-0 | 22.3 | 3 | 9.3 | 4 | 6.8 | 9.2 | 10 | 38 | 20 | 10 | 15 | 10 | 9.6 | 22 | 30 | 50 | 30 | 30 | 146 |
| Z4-16-1-0 | 30.3 | 4.5 | 12.3 | 5 | 8.8 | 12.2 | 12 | 56 | 30 | 15 | 20 | 12 | 12 | 30 | 45 | 75 | 45 | 45 | 196 |
| Z4-21-1-0 | 37.5 | 6 | 15.5 | 6 | 11.8 | 15.3 | 14 | 72 | 36 | 18 | 25 | 15 | 15 | 38 | 60 | 90 | 60 | 60 | 246 |
| Manufacture | Shenzhen Godo Precision Parts Co., Ltd. |
| Mold type | Plastic injection mould,Die-casting injection mould,Precision machining |
| Industry | Automotive,Medical,Cosmetics,Mobile Phone,Stationery |
| Mould size | According to customer requirements |
| Material | DAC, SKH-51, HPM38, STAVAX, 1.2343, 1.2344, 1.2767, 8407, ect |
| Standard | DEM,HASCO,Misumi,Puch ect |
| Surface | Mirro polished,Technical Polished,Mold Tech texture, Nitriding , |
| plating ,VDI texture ect | |
| Delivery | 10-15 days after payment |
| Shipment | Sea shipment,Air shipment |
| Package | in bubble bag,plastic bag,carton,Customized |
| QC System | 100% inspection before shipment |
| Equipment | The main processing equipment: Taiwan centerless grinder, |
| within / outside the original red molding machine, | |
| surface grinder, table lathe, high-speed lathes, | |
| CNC lathes, sparks machine ect |
How to order:
(1) Send us drawing or standard code & size
(2) We quote you within 1 day (except Saturday and Sunday)
(3) Get agreement with price and sign PO or Contract
(4) Make payment in advance
(5)If sample required,we will make sample first.
Why choose us:
*-Quality: Qualified Raw Material
Reliable Machines
Mature process
Skilful employees
Strict Quality Control
*-Price: Competitive price /Reasonable margin
*-Service: Any inquiries replied within 24 hours
Quick Delivery
Quick Response
Warranty: Depend on product type
