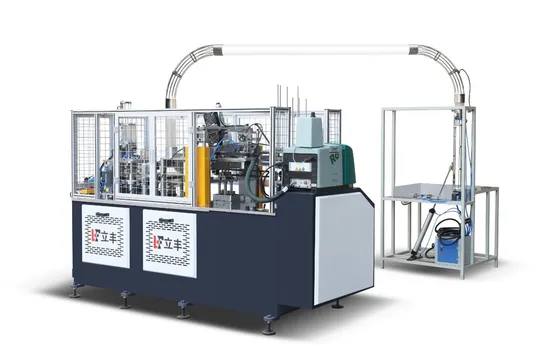

Paper Cups Coat Molding Machine/High Speed Double Wall Sleeve Machine
| US$22,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
GWT-600
Cup Size(Ounce)
4-32oz
Speed
80-100pcs/min
Required Paper
PE Coated Paper, Ripple Paper, Paper Card, Grey PA
Automation
Automatic
Logo Printing
Without Logo Printing
Certification
CE, ISO
Customized
Customized
Condition
New
After-sales Service
1 Year
Total Power
5.5kw
Voltage Supply
380V50Hz
Weight
2600kg
Transport Package
Wooden Case
Specification
2500*900*1900mm
Trademark
LIFENG
Origin
Zhejiang, China
HS Code
8441309000
Production Capacity
100sets/Year
Product Description
PRODUCT DESCRIPTIONGWT-600 paper cups high speed coat molding machine is based on ordinary insulating cover machine on the basis of independent research and development of a transfer , fully automatic paper cup cover and efficient production equipment , through the automatic paper feeding , sealing , gluing , suits , out of the cup , such as continuous process ,complete cover the production process. Can produce a solid , hollow and corrugated duplex paper cup , suitable for all kinds of high-grade cover paper cup .
| general power | 5.5kw |
| paper request | pe coated /ripple /grey paper |
| voltage supply | 380v50hz or customized |
| speed | 80-110pcs/min |
| main motor power | 2.2kw |
| cup size | 9oz-22oz |
| measurement | 2500*900*1700 |
| receiver size | 900*900*1900 |
| weight | 2600kg |
FINISHED PRODUCTS
DETAILED IMAGES
A. The man-machine interface , PLC , touch screen control , makes the operation more convenient ; System program multiple alarm and protection function , text display alarm location accurately , which is convenient for maintenance.
B.Ultrasonic welding cup body , the structure is more stable .
C.Imported high-speed mute slide , replacing the original ordinary ways , no noise , stability , faster , stronger , longer service life .
AFTER SERVICE
PACKING
COMPANY INFORMATION
If you are interested in our paepr cup machinery,
welcome to contact us!
