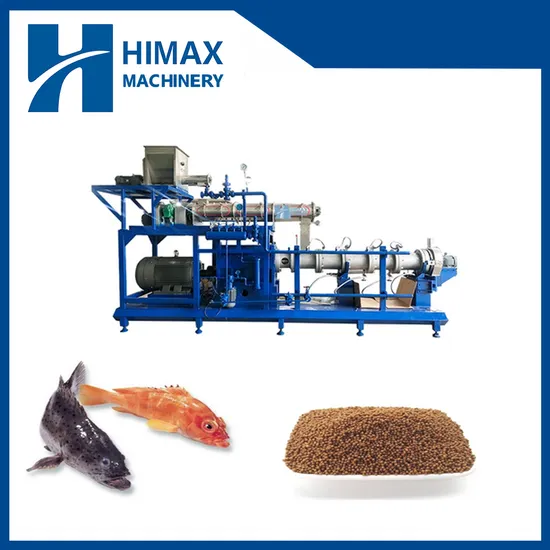

China Manufacturer Floating Sinking Fish Feed Feed Processing Machine
Basic Info.
Model NO.
HM-70
Processing Technics
Extrusion
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Sifter
Pellet Mill Type
Screw Granulator
Bulking Machine Type
Twin Screw Bulking Machine
Expanding Method
Dry Expansion
Condition
New
Applicable Materials Shape
Powder
Warranty
1 Year
Motor Brand
Siemens
Inverter Brand
Delta
Barrel
Alloy
Material of Screw
38CrMoAl
Material of Machine
Stainless Steel
Capacity
600-800kgs/H
Voltage
220V/380V
After Sale Service
One Year Free Service
Material of Products
Fish Meal, Corn Flour, Rice Flour, etc
Certificates
CE/SGS
Transport Package
Wooden Package
Specification
35000*1500*3500mm
Trademark
Himax
Origin
Jinan, China
HS Code
8438800000
Production Capacity
100sets/Year
Product Description
SamplesAquarium fish feed pellet extrusion making machine
1. Production Description Factory supply floating fish feed pellet mill making machine animal food making equipment processing line is deliberately made for special feed, which needs high in-shape rate and good-looking appearance. fish feed production process is mainly used for sinking/floating/slow sinking fish feed. Effectively protect the aquaculture water body from pollution to improve the quality of life.
2. Technical Parameter
| Model | Installed Power(kw) | Power Consumption(kw) | Capacity(kg/h) | Dimension(m) |
| 65 processing line | 74 | 52 | 120-180 | 17*1.2*2.2 |
| 70 processing line | 95 | 70 | 200-300 | 20*1.5*2.2 |
| 75 processing line | 110 | 82 | 250-400 | 26*1.5*2.2 |
| 85 processing line | 139 | 104 | 400-800 | 28*3.5*4.3 |
| 90 processing line | 132 | 75 | 800-1200 | 28*3.5*4.3 |
| 95 processing line | 165 | 90 | 1500-2000 | 35*3.5*4.3 |
| 120 processing line | 469 | 380 | 2000-2500 | 45*20*22 |
| 135 processing line | 712 | 570 | 3000-3500 | 50*20*25 |
3. Raw materials Fish meal, corn flour, rice flour, soya flour, bone meal, meat, animal oil etc.
4. Different shapes are made by adjusting the dies from extruder 1.0mm,2.0mm,2.5mm,3.0mm,3.5mm,4.0mm,4.5mm...10.0mm depend on fish food dies size
5.Voltage in China
Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers' Local voltage according to different countries. 6. Flow chart
Mixer--- Air conveyor--- Twin-screw extruder ---Hoister --- Dryer ---Flavoring line---Cooler
Our engineer could design the layout drawing according to your dimension of the factory for the fish feed machines.
8. Why choose us
9. Packing and delivery
10. Our Company
