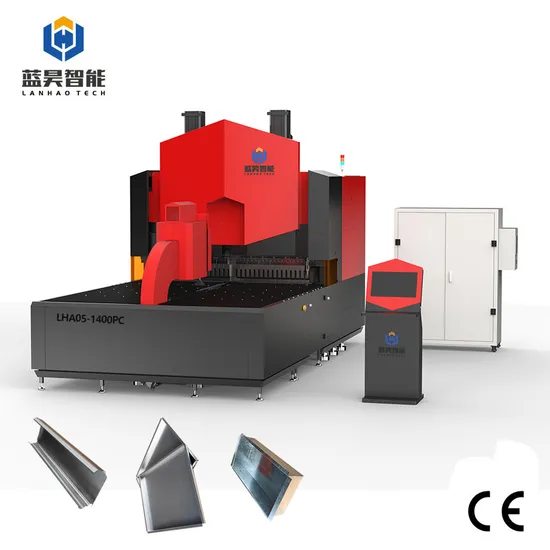

Best Selling Functional Lanhao Flexible Panel Bender

Best Selling Functional Lanhao Flexible Panel Bender

US$80,000.00-85,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LHA-1400PC
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Panel Bender
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Panel Bender
Specification
1400PC
Trademark
LANHAO
Origin
China

Product Description

Product Parameters
LHA05-1400PC Technical parameters
Feeding structure Pressing arm
Work table structure brush
System minimum accuracy 0.001mm
Max bending speed 0.2 second/time
Max feeding speed 90m/min
Max.bending width 1400mm
Max.Bending size L 1400mm X W 1400mm
Max. Bending height
(The maximum bending height after customization can reach 300mm)
170mm
300mm(customizable)
Min. Bending height 3mm
Min.arc radius 0.5mm
Rated power 380V
Motor power 40KW
Average power About 1.9KW
Noise About 50 dB
Machine size L440cm X W190cm X H290cm
Total weight About 12 tons
User operating environment Win7 or above system
Max. Bending width UTS 515N/mm2 304 stainless steel 1.5mm
UTS 410N/mm2 cold panel 2.0 mm
UTS 265N/mm2 aluminum panel 3.0mm
Min. Panel width 0.35mm
Four side forming min. Inner size About 140mmx190mm( excluding inverted folded side)
Double side forming min. Inner size About 140mm
Bending angle 0-180 degree
Axis 15

Bending Cases
Certifications

Company Profile
