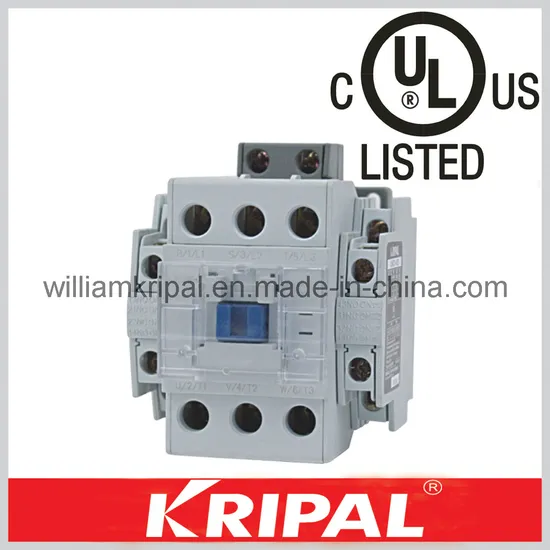

UL Certified Magnetic Contactor AC Contactor
| US$3.36 | 500 Pieces (MOQ) |
Basic Info.
Model NO.
UKC1-32/3
Phase
1
Main Circuit Rating Voltage
/
Main Circuit Rating Current
/
Type
Ac Contactors
Classic Design
Orange Button
Latest Design
Blue Button
Theory
Thermal Relay
Size
Subminiature
Usage
Household Appliances Relay
Transport Package
Carton Box Or As Your Request
Specification
IEC60947
Trademark
KRIPAL
Origin
China
Production Capacity
30000 PCS / Month
Product Description
Product Description
AC Contactor with UL certificate
Main Characteristics
1. One frame with two rated current classes
2. 3 pairs of main contacts
3. Design of anti-electric shock cover
4. Fixed by guide or screw
5. Small size: 68mm width
6. 1NO+1NC auxiliary contacts are of standard designed
7. The accesssory can be mounted on the top or side
8. Be connected with the thermal overload relay directly
Specification
| Model | UKC1-32 | UKC1-40 | UKC1-50 | UKC1-65 | UKC1-75 | UKC1-85 | ||
| AC coil | UKC1-32 | UKC1-40 | UKC1-50 | UKC1-65 | UKC1-75 | UKC1-85 | ||
| DC coil | UKD1-32 | UKD1-40 | UKD1-50 | UKD1-65 | UKD1-75 | UKD1-85 | ||
| IEC-60947 | AC1 Load | 50A | 60A | 80A | 100A | 110A | 135A | |
| AC3 Load | 200~240V | 7.5KW32A | 11KW40A | 15KW55A | 18.5KW 65A | 22KW75A | 25KW85A | |
| 380~440V | 15KW32A | 18.5KW40A | 22KW50A | 30KW65A | 37KW75A | 45KW85A | ||
| 500~550V | 18.5KW28A | 22KW32A | 30KW43A | 33KW60A | 37KW64A | 45KW75A | ||
| 690V | 18.5KW20A | 22KW23A | 30KW28A | 33KW35A | 37KW42A | 45KW45A | ||
| UL508 | Current (Ith) | 45A | 50A | 70A | 80A | 90A | 100A | |
| Single phase | 115V | 2HP | 3HP | 3HP | 5HP | 5HP | 7.5HP | |
| 230V | 5Hp | 5Hp | 7.5Hp | 10Hp | 15Hp | 15Hp | ||
| Three phase | 200V | 7.5HP | 10HP | 10HP | 15HP | 20HP | 25HP | |
| 230V | 10HP | 10HP | 15HP | 20HP | 25HP | 30HP | ||
| 460V | 20HP | 25HP | 30HP | 40HP | 50HP | 50HP | ||
| 575V | 20HP | 25HP | 30HP | 40HP | 50HP | 50HP | ||
100A 125A UKC1 Contactor 1NO 1NC 380V 220v Magnetic Contactor 4pole 4p AC Contactors FACTORY PRICE
Established in 1992, Kripal now is gradually becoming the influential electric manufacturer in China after many years well development. With a great brand effect , Kripal has the completed sales and service network with its products been exported to all over the world like Europe,Australia, American,Africa, Oceania, Southeast of Asia, and district of HongKong, Macaw and Taiwan. Kripal is awarded the title of "Famous Export Brand".
Certifications
Packaging & Shipping
