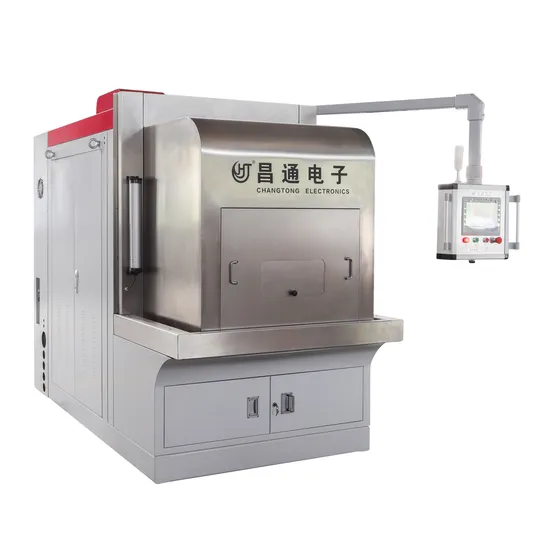

User-Friendly Semi-Conductor Bar Cutting Machine for Solar Battery Manufacturing

Product Description

Equipment Use: Designed specifically to enhance cutting efficiency for our valued customers, this model features a roller length of 690mm and a table size of 170/145mm*690mm*160mm*2 version. It expertly handles products with thicknesses ranging from 0.3mm to 65mm, ensuring precise and efficient cutting every time.
Introducing the CHTXQ-690F Double Plate Multi-Wire Cutting Machine - A Marvel of Engineering and Efficiency.
1. Empowered by four independent motors driving each roller, this advanced design minimizes steel line wear on rollers and optimizes their longevity. Expertly crafted with a processing center molding, the roller bracket mounting hole meets all spindle installation coaxial requirements, ensuring unparalleled precision.
2. Featuring an optional LED display, this equipment provides a more intuitive and user-friendly data visualization experience, simplifying the cutting process for operators.
3. With a unique under-table design, materials are conveniently loaded from the bottom up for cutting, streamlining the process of loading and unloading.
4. Offering two models: the high-speed machine and the standard version. The high-speed model boasts enhanced line speeds and heightened cutting efficiency, allowing for the use of thinner diamond lines on equivalent materials.
5. Equipped with a transverse movement capability, the table can glide back and forth, facilitating tile cutting and enabling the innovative single-line cutting function.
6. Boasting a substantial loading area of 170/145mm*690mm*160mm*2 version, this design significantly boosts cutting efficiency, accommodating larger volumes with ease.
7. With spindle accuracy within ≤0.01mm and our patented dust structure (Patent No. ZL201320681902.7), the machine promises stable operation and effortless disassembly.
8. User-friendly and straightforward to operate, the machine features an automatic lifting shield and a fully expanded workbench, facilitating easy material handling and roll loading.

	unit	parameter
Maximum Worksize	mm	170/145*690*160*2
cutting thickness	mm	0.6~65
running speed	m/min	0~2200
Table lift stroke	mm	220
Table cutting feed speed	mm/hour	0.1~100
The amount of wire output from the supply wheel	Km	30(φ0.2diamond wire)
Diamond diameter	mm	φ0.06~φ0.35axle
Roller outside diameter*number of axles	mm	φ155/φ180*690*4
boundary dimension	mm	≈1830*2800*2650
machine weight	Kg	6500~115000
power		AC380V/50HZ three-phase four-wire
Total machine power rating	Kw	54 above

This sophisticated double-station multi-wire cutting machine integrates diamond wire processing capabilities, processing two plate materials simultaneously. With a roller length of 690mm and a maximum cutting area of 220mm*690mm*160mm*2 version, it offers dual functionality for both single-line and multi-line cutting, ideal for batch processing of hard and brittle materials into straight sheets.
This model stands as a multi-line cutting machine designed for diamond line processing. With a roller length of 570mm, it accommodates a maximum cutting area of 220mm*570mm*160mm. Featuring a rotary tool holder, it efficiently slices products ranging from 0.3mm to 65mm in thickness, perfectly suited for batch processing of hard and brittle materials.
Introducing our small multi-line cutting machine, tailored for diamond line processing and available in single and double station models. Perfect for small batch processing of straight sheets, it offers effortless specification changes and handles cutting sheet thicknesses from 0.5mm to 30mm, providing both single-line and multi-line cutting functions for hard and brittle materials.
> Stable Wire Web Control - Elevating Precision to New Heights.
The rollers and wire spools are engineered with a cone-positioned structure, delivering superior accuracy and rigidity to effectively control wire web shaking, ensuring stable performance.
> Optimized Pulley System - Ensuring Smooth Operation and Longevity.
With an innovative 8-pulley design, this system significantly reduces diamond wire torsion, mitigates tension fluctuations, and lowers the wire breakage rate, guaranteeing reliable operations.
> Effortless Wire Winding - Simplifying Maintenance and Usage.
The wire pay-off wheel utilizes the universally recognized standard spool (PV600 reinforced I-wheel), eliminating the need for rewinding and enhancing operational efficiency.
> Safety Guarantee - Prioritizing Operator Safety and Ease of Use.
The main operation door features an electrically operated lift with a built-in safety device, providing peace of mind during use.
> Wire Break Memory System - Minimizing Downtime and Maximizing Productivity.
> Easy Operation - Designed with the User in Mind.
The cutting room boasts an open design on three sides, facilitating easier operation and maintenance, streamlining processes, and reducing downtime.
