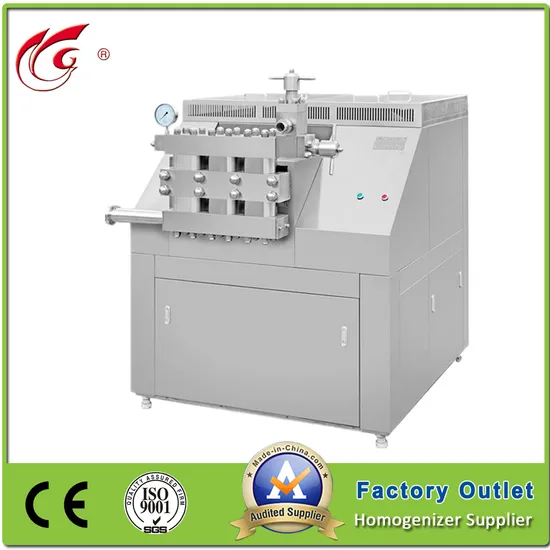

Milk/Juice/Ice Cream Dairy Equipment

Product Description

Product Specifications:

Name	Middle homogenizer
type	GJB3000-25
Rated flow(l/h)	3000
Rated pressure(MPa)	25
Working pressure(MPa)	0~20
Weight ( kg)	1350
Size (cm)	130×110×145
Power (Kw)	30

Description:
Homogenizer is a kind of versatile equipment which can make liquid substance into high pressure spray or homogeneous and finer material.
Pressure through an adjustable current-limiting gap process, the formation of loss of pressure expansion, explosion, shear, combined effect of high-speed collision, the particles and liquid droplets shatter into very small size, while creating an ideal solution or dispersion of emulsion. Product stability, consistency, mixed, and easy absorption, nutritional value, shelf life, flavor, color, security activities are realized in the homogeneous process. Application:
It is widely used in food, dairy, beverage, pharmaceutical, fine chemicals and bio-technology and other fields of production, scientific research and technological development.
1)For milk,soybean milk,could make fat globule thin observably,make it easy to assimilate.It is good to increase the edible value.
2)For ice cream,make the liquid fine and loosen and improve internal quality.
3)For emulsion,colloid,juice,serosity,could avoid and decrease the separated layers of liquid material,improve the appearance of liquid material,and make it identical coloury liquid.
4)As transportation pump usage
It will come into high pressure by our machine.Powder will be made by dryness equipment.Our machine is important process of manufactorying powder.
Spare parts:
1.The machine is installed in stainless steel case.
2.Pump body of the machine is made of stainless steel 304.If you need,we can customized stainless steel 316 for you.
3.Homogenizing valve and seat are made of special hard steel.
4.Valve and seat have special hard steel,ceramic ball or usual steel for your choose.
Features:
This machine are features with good design,convenient operation and simple maintenance,and safety.
1)Low noise:Noise of transmission is lower than noise of motor. The pointer of pressure meter is steady, and also the range of swing of pointer is less than 2M Pa.
2)Smashing granularity is between 0.1 micron to 0.2 micron, and their average size≤1 micron.
3)Sealing material can work under less than 150ºC, and the parts touching material is made of stainless steel which can stay up to the acid and alkali. All of valves and plungers are made of special material, so they are durable and inexpensive. The bearing is also durable because it is made of special alloy material, which is the more friction, the more hardness.
4)Lubrication of homogenizers is credible, and it only need changing oil the first time when work 800 hours to 1000 hours, since then it need to be changed oil per year later
5)The higher the pressure the finer the material the more uniform particle size, 30MPA the following models, mainly for liquid - liquid emulsification. Pressure of 30MPA above, on the liquid - solid dispersion of liquid into play when the pressure most of the material up to 60MPA reach 2μm particle size less than when the material reaches 80MPA more obvious when the role is mainly used for ultrafine particles broken Materials to achieve the following general 1μm. As to 100MPA above, can be produced more subtle particles, some of the material particles after repeated high pressure homogenization, 0.1-0.5μm can be prepared the following no-grain materials.
