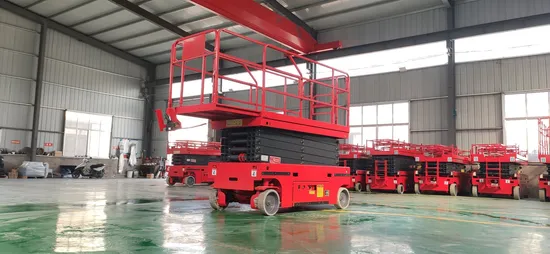

Europe Popular Machine Scissor Lift Elevator Lift Table Platform 10m
Basic Info.
Model NO.
Hightop-LP08
Moves
Self-propelled
Driven Type
Rack&Pinion
Running Mode
Moving
Feature
Explosion-Proof
Certification
CE
Maximum Working Height
10m
Maximum Platform Height
8m
Maximum Number of Workers
2
Safe Working Load of Extension
113kg
Transport Package
Iron Frame
Specification
2600*1170*1460mm
Trademark
hightop
Origin
China
Product Description
Product DescriptionShandong hightop machinery co., ltd , established in 1980, is an important and a large construction engineering equipment joint-stock enterprise group, It has several wholly-owned subsidiaries, include Shandong Hightop Machinery Co., Ltd. and China Machinery industrial Co.,ltd. company headquarters is located at Huoju Industrial Park, National High Tech Zone, Jining City, Shandong province of China.
Group's manufacturing area is compromised of 50000 square meters where 2000 people works hard. Its service scope covers critical economic fields such as excavator, road roller, loader machine, backhoe loader, small transport vehicle,etc. CNMC Group got ISO9001 international quality system certification, European Union CE certification, SGS certification and Russian GOST certification.
Nowadays, CNMC products have been exported to more than 177 countries, and win good reputation from our customers, because we always pursue "CNMC FOCUS ON QUALITY"
Detailed Photos
Product Parameters
| Model | Hightop-LP04 | Hightop-LP06 | Hightop-LP08 | Hightop-LP10 | Hightop-LP12 | Hightop-LP14 |
| Safe working load | 320kg | 320kg | 320kg | 320kg | 320kg | 320kg |
| Safe working load of extension | 113kg | 113kg | 113kg | 113kg | 113kg | 113kg |
| Maximum number of workers | 2 | 2 | 2 | 2 | 2 | 2 |
| Maximum working height | 6m | 8m | 10m | 12m | 14m | 16m |
| Maximum platform height | 4m | 6m | 8m | 10m | 12m | 14m |
| Overall length | 2600mm | 2600mm | 2600mm | 2600mm | 2600mm | 3200mm |
| Overall width | 1170mm | 1170mm | 1170mm | 1170mm | 1170mm | 1500mm |
| Overall height (fence not folded) | 2160mm | 2280mm | 2400mm | 2520mm | 2640mm | 2.21mm |
| Overall height (fence folding) | 1460mm | 1580mm | 1700mm | 1820mm | 1940mm | 1940mm |
| Working platform size (length x width) | 2400mm*1170mm | 2400mm*1170mm | 2400mm*1170mm | 2400mm*1170mm | 2400mm*1170mm | 2800mm*1400mm |
| Platform extension size | 0.7m | 0.7m | 0.7m | 0.7m | 0.7m | 0.7m |
| Minimum ground clearance (retracted) | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m | 0.1m |
| Minimum ground clearance (lifting | 0.019m | 0.019m | 0.019m | 0.019m | 0.019m | 0.019m |
| Wheelbase | 1.89m | 1.89m | 1.89m | 1.89m | 1.89m | |
| Minimum turning radius (inner wheel) | 0 | 0 | 0 | 0 | 0 | 0 |
