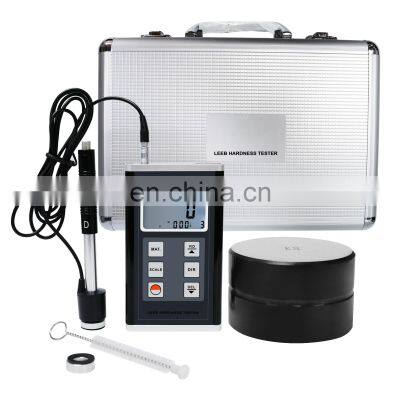

HM-6580 Portable Rebound Leeb Hardness Tester Meter for Metal Steel,hardness tester
Product Description
Product DescriptionHM-6580 Portable Rebound Leeb Hardness Tester Meter for Metal Steel,hardness tester
Leeb hardness tester's features
1.Palm size for narrow space.
2.Test at any angle, even upside down.
3.Direct display of hardness scales HRB, HRC, HV, HB, HS,HL.
4.Large memory could store 50 groups including single measured value,
impact direction, material and hardness scale etc.
5.User recalibration function allowed.
6.Can communicate with PC for statistics and printing by optional cable.
7.Manual or automatic shut down.
8. Low battery indication.
Leeb hardness tester's Specifications
| Measuring range | (170-960)HLD,(20-68)HRC,(19-651)HB,(80-967)HV,(30-100)HS,(13-100)HRB |
| Measuring Materials | 9 different common materials ( Steel & Cast Steel, Metallurgy tool steel, Forged Steel, Gray Cast Iron, Nodular Cast Iron, Cast Aluminum, Brass, Bronze, Copper ) |
| Conversion | HL-HRC-HRB-HB-HV-HSD |
| Accuracy | ±8HLD(HLD=800) |
| Repeatability | ±6HLD(HLD=800) |
| Display | LCD |
| Case Material | Aluminum Alloy |
| Working Conditions | Temperature: 0 ~ 40 ℃ Humidity: ≤ 90 % |
| Measuring Direction | 360° |
| Impact device | D Will handle, Weight: 75g |
| Radius of Measured Workpiece | Rmin=50mm ( For non-conventional Supporting ring Rmin=10mm ) |
| Min. Weight of Workpiece | Stable support 2kg ( 0.1kg Coupling ) |
| Min. Thickness of Workpiece | 3mm |
| Min. Thickness of Hardened Layer | 0.8mm |
| Power supply | 2 x 1.5 V AA size (UM-3) battery |
| Dimension | 130 x 76 x 31 mm |
| Weight | 340 g (Not Including Batteries) |
Leeb hardness tester's Application
LeebHardness Tester applicable to die cavity of molds, Inspection of bearing and other mass produced parts on a production line, Failure analysis of pressure vessel, steam generator and other equipment, Inspection of installed machinery,permanent parts of assembled systems and heavy work pieces,Testing surface of a small hollow space, Material identification in the warehouse of metallic materials, Rapid testing in large range and multi-measuringareas for large-scale work piece.
