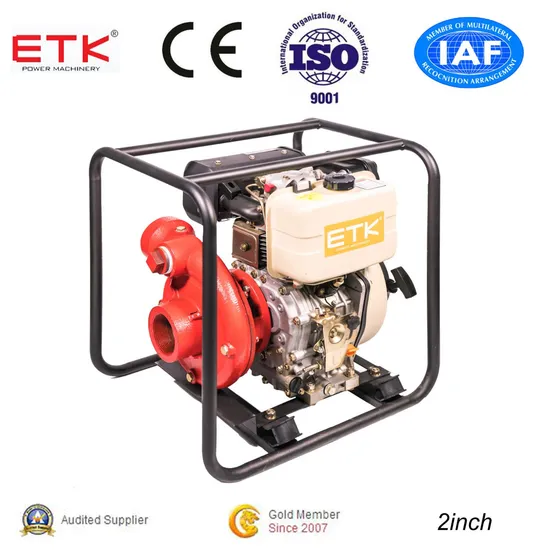

2" Enviromental Diesel Water Pump with Big Tank

Product Description

DIESEL WATER PUMP
Introduction
Diesel water pump and Gasoline water pump series use advanced engines to ensure effective and economical combustion and are renowned for low noise, light vibration, light weight and small size. With aluminum alloy self-suction pump body and cast iron propeller/turbine cover, the pump is endowed with greater endurance. Using international standards of screw threads, the pump has outstanding compatibility and can be used together with various pipes.
The air-cooled diesek displacement pumps are self-priming single-stage centrifugal water pumps. The bodies of water pumps are constructed of ceramics and the staionary rings are constructed of grahite.
Sincerely welcome you to establish longterm cooperation with us, to create a bright tomorrow!
Advantages
1. Diesel water pump with CE certificate.
2. Skilled technicians and professional engineers
3. Every spart part supplier is chosen strictly based on excellent quality
4. Complete production procedures, strict test center, good package
5. Warranty: Running for one year
6. Standard operation / technical maintenance /manual/tool kits
7. Any questions. Pls do not hesitate to contact our salesperson
Pictures

Model	1.5inch	2inch	3inch
	DWP15CH(E)	DWP20CH(E)	DWP30CH(E)
Suction port diameter(inch)	1.5	2	3
Discharge Port Diameter(inch)	1.5	2	3
Max Suction Head(m)	5	5	5
Total head(m)	60	63	66.4
Max Flow Rate(m³/h)	19	27.8	38.38
Starting Mode	Recoil start	Recoil start	Recoil start
Net Weight(kg)	50	52	54
Packing dimensions(L×W×H)mm	510×425×540	510×465×570	570 × 485 × 620
Engine Model	DG178F(E)	DG178F(E)	ETK186FA(E)
Type	Single-cylinder, Vertical, 4-Stroke, Direct injection, Air-cooled diesel engine
Bore × Stroke(mm)	78×62	78×62	86×72
Engine Speed(rpm)	3,600	3,600	3,600
Displacement(cc)	296	296	418
Continuous Output(KW)	4.4	4.4	6.9
Maximum Output(KW)	4.9	4.9	7.6
Cooling Type	Force air-cooled	Force air-cooled	Force air-cooled

Factory Information
ETK Power here,produce diesel generator, pumps, engines,etc, based on over ten years's experience. Fast-delivery time (15-20days for new customers, 7-10days for old customers) and the monthly output ( over 30000 units ) ensure ETK to become best choice for all customers.
FAQ
1.Q:How about guarantee?
A: within 1year after goods is discharged in the destination. We will supply the consumables if it broken under normal using. For example, fuel cock,spark plug,recoil starter,etc
2.Q:What is the material of your products?
A: Iron,Steel,plastic,etc.

3.Q:What is you deliver time ?
A: Within 15-20days after got your T/T deposit.
4.Q: What certificate do you have for the engine diesel generator set ?
A: There are ISO 9001:2008, CE etc.
5.Q: If I want to be your products distributor in our country, what is your distribution policy?
A: ETK power welcomes everybody join us and distribute products worldwide. We can issue authority certificates and sign agreement with you accordingly.
