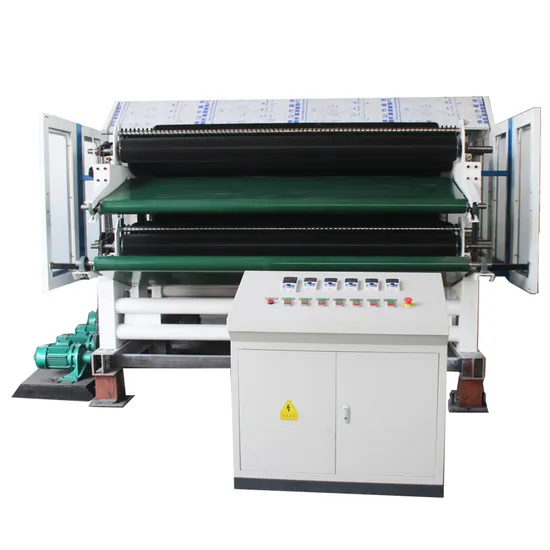

High Capacity Nonwoven Staple Fiber Single Cylinder Double Doffer Carding Machine for Making Nonwovens

Product Description

High Capacity Nonwoven Staple Fiber Single Cylinder Double Doffer Carding Machine for Making Nonwovens
Introduction: We manufacture a kind of muti-function carding machine which can't only process wool and fiber but also new and old cotton by our experiment and research over and over again. It perfect combine all the advantages of carding machine and cotton carding machine, get rid of the defect of old carding machine and cotton carding machine processing products single . Can be processed: old and new cotton, wool, chemical fiber, old and new woolen yarn ,etc.

Multi-function carding machine advantages:
(1)high speed carding make fibre full card and web more even
(2)adopt duplex bearing enclosed shaft sleeve, high precision,almost no shaft head lap-ups
(3)Center induced draft, balance the internal pressure and suction side system
(4)Adopt stainless steel rod type to leak
(5)Whole machine adopt touch screen to centralized control,frequency changer.
(6)High platform and fence cylinder, opening and closing the top cover

In addition, machinery environmental protection:
there is dust collection device to ensure the health of workers;
Shortcut: a molding to save cumbersome manual elaborate;
Safety: machine shield to ensure the workers' safety, and provides customers with more perfect production equipment.

NO	ITEM	DESCRIPTION
1	Model	GMCD2-155
2	Raw materials work on	Processing of raw materials from feeding machine, the output fiber layer
3	Working width	1550 mm
4	Production capacity	180 kg/h(Reference 6 d first-grade product chemical fiber)
5	Fiber raw materials requirements	3~15D×38~65mm
6	The speed of the output fiber layer	≤40m/min
7	Total power	≈21.5KW
8	Main body	High quality castings (HT200), are subject to high temperature stress after processing and precision machining with a mix of profile stays
9	Feeding roller	With a pressure roller feeding uniformity.Feeding roller: 4sets , φ65mm
10	Metal detectors	Equipped with metal detectors, feedback and control power and warning
11	Diameter of Cylinder &doffer &mixed and disorderly roller	φ1230 mm, double doffer diameterφ492 mm, mixed and disorderly roller diameter: φ295 mm
12	No of groups	There are 5 carding working groups, so can get a very good carding effect
13	Dust collection points	There are 4 dust places
14	Working shield	Working shield with transparent organic glass, a mechanical rotation can be observed during it running
