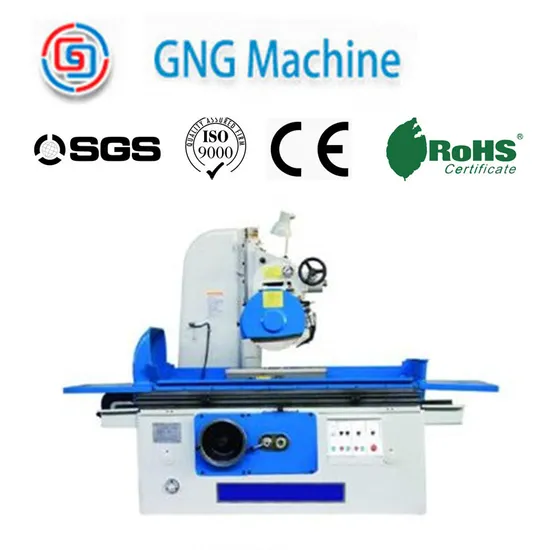

Electric Wheel Head Moving Surface Grinding Machine
| US$47,250.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
M7130Ax4500
Precision
Precision
Application
Metal Grding Machine
Type for Grinding Machine
Disc Grinding Machine
Grinding Machine Type
Vibration Polishing Machine
Grinding Method
Semi-Dry Grind
Condition
New
Table Size(Wxl)
300X4700 mm
Max. Machining Dimension(Wxl)
300X4700 mm
Max. Distance Between Spindle
525mm
Chuck Size (W X L)
300X1000(mm)
Max. Loading Capacity of Worktable with
2100kg
Transport Package
Plywood
Specification
CE
Trademark
customer brandv
Origin
China China
HS Code
8466200
Production Capacity
50sets/ Per Month
Product Description
Min. Order Quantity: 1 Set/Sets
Supply Ability: 500 Set/Sets per Month
Port: Qingdao
Payment Terms: T/T
Quick Details
Condition: New
Type: Surface
Grinding Machine
CNC or Not: Normal
Max. Grinding Diameter: 300
Max. Grinding Length: 1000
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: M7130
Voltage: 220V
Power(W): 8630W
Dimension(L*W*H): 284X171X213cm
Weight: 3490kgs
Certification: CE
After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: Packed in playwood case
Delivery Detail: 30-45days
| M71 wheel head moving surface grinder | |||
| Item/Model | Unit | M7130Ax4500 | |
| table size(WxL) | mm | 300x4700 | |
| max. machining dimension(WxL) | mm | 300x4700 | |
| max. distance between spindle center line and worktable surface | mm | 525 | |
| longitudinal moving speed of worktable | m/min | 5-25 | |
| T-slot number x W | mm | 3x18 | |
| wheel head cross moving | continuous feed speed | m/min | 0.5-4.5 |
| intermittent feed speed | mm/t | 3-30 | |
| hand wheel feed | mm/gra | 0.02 | |
| wheel head vertical moving | rapid speed | mm/min | 400 |
| feed of handwheel | mm/gra | 0.005 | |
| wheel head motor | power | kw | 7.5 |
| rotation speed | rpm | 1440 | |
| total power | kw | 15.5 | |
| max. loading capacity of worktable with chuck | kg | 2100 | |
| chuck size (W x L) | mm | 300x1000 | |
| wheel size (ODxWxID) | mm | 400x40x127 | |
| machine dimension(LxWxH) | cm | 1220x170x203 | |
| package dimensions(LxWxH) | cm | 1250x220x213 | |
| machine weight | t | 12 | |
| *M7130AL with air cooling apparatus for hudraulic system of the machine to realize small increase of oil tank temperature. | |||
