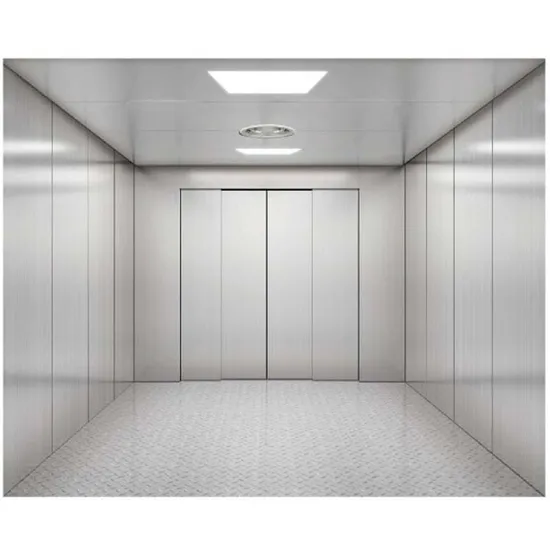

Big Load Capacity Fcatory Machine Room Freight Elevator Vvvf Goods Elevator Cargo Lift

Product Description

The freight elevator uses advanced microcomputer control technology and technology integration to greatly improve the performance and quality of the freight elevator and greatly reduce the occurrence rate of failures; because it uses variable frequency electric drive technology, the elevator structure is simpler , maintenance is more convenient.
The optimized designed car of the cargo elevator is spacious and bright, economical and practical, making cargo transportation convenient and fast, safe and reliable, with balanced operation, large load capacity and other excellent qualities. It can meet the needs of customers in different uses and environments such as factories, warehouses, shopping malls, shopping malls, libraries, etc. It is the best freight transport tool.
COP/ LOP
Landing Door
Technical Advantages
Traction systemThe traction host of the HF1000 series freight elevator is designed according to vertical logistics requirements and can fully meet various load requirements. Vector closed-loop control technology can fully meet the dynamic adjustment requirements, and the elevator runs smoothly and accurately, significantly improving the elevator's response speed and comprehensive performance.
Energy saving and comfort
The use of VVVF speed regulation technology greatly reduces the power supply capacity, saves nearly 40% energy than traditional AC two-speed technology, and minimizes elevator power consumption. This technology can not only adjust the elevator speed, but also has constant torque characteristics, regardless of the load, which can greatly improve the comfort of elevator operation, leveling accuracy and reduce operating noise.
Sturdy structure, large door spacing
The multi-folding hall car door is adopted to achieve the maximum door opening width, which facilitates the entry and exit of large goods; the stronger car bottom can reliably bear all kinds of goods, and the accurate weighing device controls the load to prevent overloading.
Application Environment
Factories, museums, exhibition halls, auto shops, warehouses, parking garages
Maximum capacity 30000kg

Model	Capacity (kg)	Speed (m/s)	Car Size CW*CD*CH (mm)	Door Opening Size OP*OPH (mm)	Shaft Size HW*HD (mm)	OH (mm)	PT (mm)	Rated Power (kw)
F3000	1000	0.5-1.0	1400*1600*2200	1200*2100	2300*2200	4500	1500	7.5-11
	2000	0.5-2.0	1900*2100*2200	1600*2100	2900*2700	4500-4800	1500-1800	11-18.5
	3000	0.5-2.0	2200*2500*2200	1700*2100	3300*3200	4500-4800	1500-1800	15-22
	4000	0.5-2.0	2500*2800*2200	2000*2100	4000*3500	4500-4800	1500-1800	18-35
TF3000	2000	0.5-1.0	1900*2100*2200	1600*2100	2900*2700	4500	1500	11-18.5
	3000	0.5-1.0	2200*2500*2200	1700*2100	3300*3200	4500	1600	15-22
	5000	0.5-1.0	2800*3100*2200	2400*2100	4200*3800	4500	1800	18-35
F5000	8000	0.25-0.5	2800*4500*2200	2600*2100	4400*5200	4800	1800	30-45
	10000	0.25-0.5	3000*5300*2200	2700*2100	4600*6000	4800	1800	30-45
