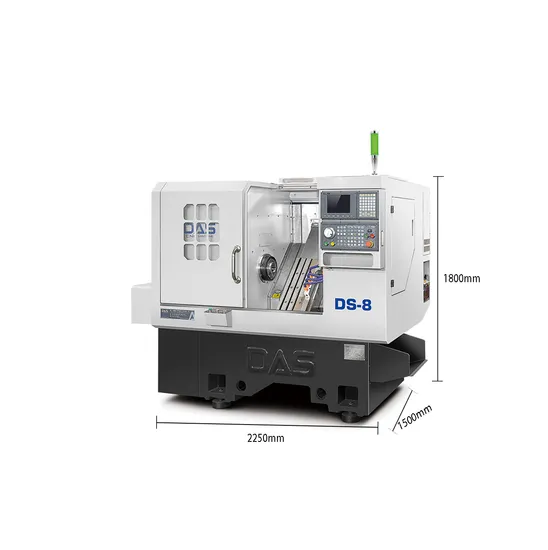

High Quality Swiss Type CNC Lathe Ds-8 Syntec Control System Lathe with Bar Feeder

Product Description

DAS DS-5/6/8 Torno CNC High Precision Metal Automatic Gang Type Slant Bed cnc lathe Machine(Full Protection) Product Description
- Machine tool control system uses Taiwan SYNTEC 6TA-T3S system. Other company's numeral control system can also be used when user requires so.

- Machine body is cast in one piece with resin bonded sand, so it features strong vibration resistance and less deformation. The lathe bed tilts by 45° and the inclined placement of lathe carriage and tool holder will result in easy operation and chip removal. The machine tool has pleasant design appearance and less space occupation.

- Equipped with computer automatic lubrication system for the linear guide and ball screw forced lubrication, ensure that the guide rail and the service life of screw.

Name	DS-5	DS-6	DS-8
The style of installation tool	Gang type	Gang type	Gang type
Adjacent tool change time (s)	0.2	0.2	0.2
Tool change style	Random	Random	Random

1.Machine body and the basic is casting with resin sand casting in one piece, its features strong vibration resistance and difficult deformation, lathe bed tilts 45°,the inclined place ment of lathe carriage and tool holder makes machine tool operation and chip removal more convenient.
2.The new design of the machine structure adds rear chip removal (optional side or rear row of chip holes).The appearance design of the machine tool is pleasant, and less space occupation.
3.The drive part of machine tool uses HIWIN/P MI high precision P3 class ball bearing screw and high speed linear slide rail, a famous brand from Taiwan and is provided with co mputer automatic lubrication syste m for forced lubrication of linear guide rail and ball bearing screw. For X axis and Z axis, high rigidity linear slide rail is adopted with optimum span between rails through calculation. With low resistance, high rigidity and high precision, the displacement speed can reach up to 30M/min so as to improve working efficiency and reduce processing time.
Good Feedback
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District,Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality .Our major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes,featuring space saving, low cost and diversified arrangement etc. They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof,electronic industry, optical instruments, clocks and watches as well as special motors etc.We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service,which ensure us
the first consideration when you purchase high-precision machine tools.
