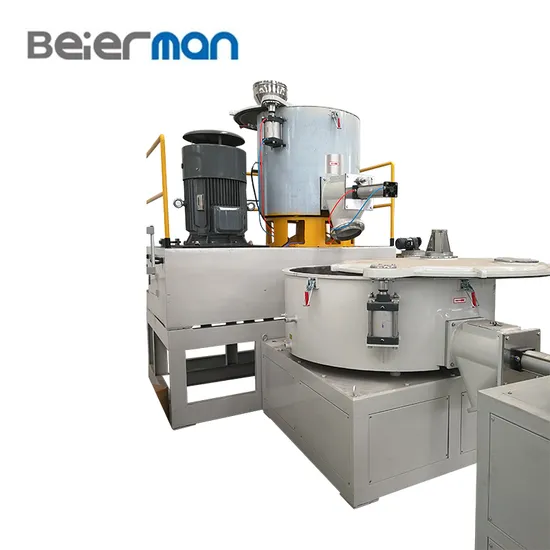

Beierman Price SRL-Z 300/600L 500/1000L 800/2500L 1000/3000L PVC Compound Powder Heat and Cold Mixer Unit Plastic Mixing/Blender Machine

Product Description

Product Description Mixer unit specially designed for the plastic high speed mixing,drying, coloring. mixer machine, pvc mixer, pvc mixing machine, mixing machine, powder mixer, paint mixing machine, blender, mixing equipment, machine, mixer - high speed mixing motor inverter started- high speed parts 3 methods temperature increatig: material self-friction/electric heating/conduction oil heating- material discharge 2 methods: temperature controller automatic release/mixing time control- the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment- the barrel covers and three direct links made of cast aluminum- the bearing chambers with special designs for the lubricating oil injection- driving motor over current protection design- PLC touch screen control system can be choosed for the high automatic control requirement- special designed mixing axis design can avoiding the raw material leaking from the barrel- mixing paddles after strict balance testThere are many different kinds of mixing unit types.
BM-10L,BM-25L,BM-50L,BM-100L,BM-200L,BM-300L,BM-500L,BM-600L,BM-800L,BM-1000L,
BM-1250L,BM-2000L,BM-2500L,BM-3000L. SRL-Z50/100,SRL-Z100/200,SRL-Z200/500,SRL-Z300/600,SRL-Z500/1000, SRL-W500/1600,SRL-W800/2000,SRL-W800/2500,SRL-W1000/3000 SRL-W1500/4500L
Detailed Photos
Product Parameters

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total Volume (L)	100/200	200/500	300/600	500/1000	800/1600
Effective Volume(L)	75/150	150/375	225/450	375/750	600/1200
Mixing Speed(rpm)	650/1300/200	475/950/130	475/950/100	430/860/70	370/740/50
Heating/Cooling Method	Electric/self-friction/recycling water
Mixing Time(minutes)	8-12	8-12	8-12	8-15	8-15
DS Driving Motor(kw)	14/22/7.5	30/42/7.5	40/55/11	47/67/15	80/110/22
Inveter Driving Motor(kw)	22/7.5	45/7.5	55/11	75/15	110/22
Dimension(m)	1.95X1.6X1.8	4.58X2.24X2.47	4.8X2.64X2.48	5.6X3X3.1	5.17X3.2X4.48
Weight(kg)	2200	3400	3600	6500	9800

Certifications
Packaging & Shipping
Company Profile Zhangjiagang Beierman Machinery CO.,LTD.is a modern factory, which engaged in the plastic extrusion machine and recycling machines' researching, manufacturing and saling. Our professional research teams, sales teams, rich experience and processing equipment will offer customers high quality machines and perfect after sales services.
Our major products including: single screw extruder, twin screw extruder, HDPE pipe production line, PP-R pipe production line, PVC pipe production line, plastic profile production line, plastic sheet production line, plastic mixing machine, waste plastic recycling machines, plastic pelletizing machines and relative auxiliary machines for the plastic machines. We will offer the customers the whole set of solution from extrusion to recycling and turn key projects. Our machines are highly praised by our customers for perfect perfomance, quick service, advantage technology.
Customer's satisfied is our target forever. We will offer detail solutions according to different customers detail conditions. Customers' expected products, services is what we are always insisting. High quality, Quick services, mutually beneficial will our promise to customers around the world.
