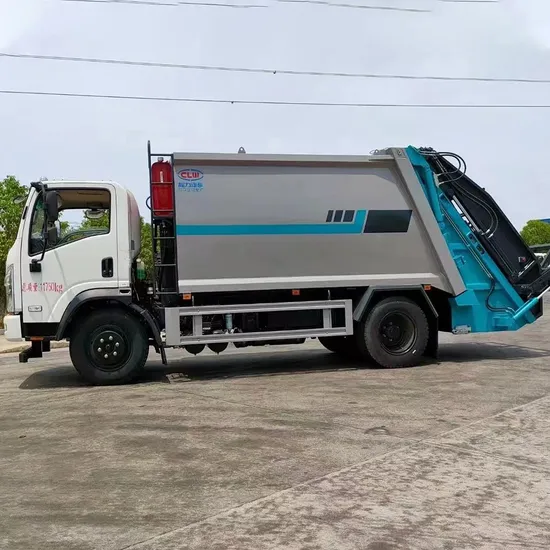

Tri-Ring 4*2 Compactor Garbage Transport Truck Compressed Garbage Truck for Waste Colleaction

Product Description

Tri-Ring 4*2 Compactor Garbage Transport Truck Compressed Garbage Truck for Waste ColleactionProduct Description
Compression Garbage TruckGarbage Compactor Vehicle, also called Compressed Garbage Vehicle, Compactor Garbage Truck, Compressed Garbage Truck, Rear Loader Garbage Compactor Truck, Waste Compactor Truck, Waste Compressed Truck, Refuse Compactor.
The Compression Garbage Truck has a sealed garbage compartment, a hydraulic system, and an operating system. The whole vehicle is fully sealed, and the sewage during self-compression and self-dumping enters the sewage compartment. This thoroughly solves the problem of secondary pollution during garbage transportation and avoids inconvenience to people. The key components are imported components, which have the advantages of high pressure, good sealing, convenient operation, and safety. The rear hanging bucket flip mechanism or garbage bucket flip mechanism can be optionally equipped.
Product Parameters

GARBAGE COMPACTOR TRUCK SPECIFICATIONS
Vehicle Model			CL5120ZYS6BHQ
Basic Vehicle Parameters	Drive Type		4×2
	Total Weight (kg)		11750
	Curb Weight(kg)		7300/7700
Vehicle Appearance Parameters	Length (mm)		7575/7855
	Width (mm)		2380
	Height (mm)		2900
	Wheelbase (mm)		3800
Performance Parameters	Maximum Speed (km/h)		80
	Maximum Climbing Grade (°)		30%
Chassis Configuration Parameters	Engine	Engine Emission Standards	Euro VI
		Manufacturer	Guangxi Yuchai Machinery Co., Ltd./Kunming Yunnei POWER Co., Ltd.
		Displacement(L)	2.5L-4L
		Rated Power (Kw)	110-147
	Cab	Type	Single Row Flat Top Cab
		Model	T3(1995)(1.995m)
		Standard Configuration	Bluetooth Radio, Laminated Glass, Electric Doors And Windows, Central Locking, Wide Bumper, Roof Box, Multi-Function Steering Wheel
	Gearbox	Gearbox Type	Manual, 8 Gears
	Front Axle	Type	Drum Brake
		Loadable Weight (Kg)	2500
	Rear Axle	Gearbox Type	Drum Brake
		Loadable Weight (Kg)	7200
		Speed Ratio	4.875
	Frame	Section Size (mm)	250×65×230(6.5+5)
	Leaf Spring	Number of pieces	8 Front Springs, 10+7 Rear Springs
	Tire	Type	Steel Wire Tire
		Quantity	6+1
		Model	8.25R20 16PR
	Steering System	Type	Hydraulic Power Steering System
	Braking System	Brake Type	Drum Brakes With ABS Anti-Lock Braking System
		Service Brake System Type	Dual Circuit Air Brake
		Parking Brake System Type	Spring Brake
		Parking Control Type	Manual Brake Operation
	Electrical System	System Voltage	24V
		Battery	100AH Dual Battery
Upper Body Configuration Parameters	Tank	Trash Bin Volume (M³)	12
		Bag Thickness (mm)	Wall Thickness 4mm Bottom Thickness 5mm
		Loader Volume (M³)	1.9
		Compression Density (T/M³)	0.6-0.8
		Compression Cycle Time (S)	≤30
		Trash Unloading Time (S)	≤60
	Other Configurations	Hydraulic Oil Pump, Multi-Way Valve, Oil Cylinder, Full Hydraulic Operation, With Back Pressure Valve, Two-Way Balance Valve, Siemens PLC Electronic Control System (With One-Button Operation And Manual Operation), Two Operation Boxes (Operable Inside The Cab And On Both Sides Of The Rear), One Lighting Lamp, A Sewage Tank On The Side Of The Beam, A Sewage Tank At The Bottom Of The Filler To Ensure That There Is No Sewage Leakage In The Tank, And A 240-Liter Garbage Can Flip Mechanism At The Rear
Other Configuration		Triangular Warning Sign, Tool Kit, Spare Tire On The Side Of The Frame, ABS, Air Conditioning.

Detailed Photos
High-Density,High-Pressure Hydraulic Oil Pipe, Multiway Valve,Oil PumpSiemens Circuit Operation,Hydraulic Cylinders Can Beautomatic RetractionDifferent Kinds Of Garbage Tippingmechanism In The Rear Can Be OptionalThe Sealing Of The Fillingdevice And The Body Boxbe Sealed By Hydraulic Lock,The Rubbish Can Be Reliablysealed In The Truck.How the Garbage Compactor Truck Works?The garbage compactor trucks are loaded by sanitation engineers along neighborhood streets. The trash is loaded into a hopper in the back of the truck of rear loaders. Hydraulic cylinders operate the compacting mechanism, which takes the trash out of the hopper and places it into the body of the truck.
Technical Drawing
Company Profile
Researched by board of directors of Tri-Ring Group Company and approved by Hubei SASAC, Hubei Tri-Ring Motor Industrial Park was initiated on April, 28th 2010 and was put into operation in 2014 according to the revitalization plan of auto industry in Hubei Province and the twelfth five-year plan of Tri-Ring Group Company. The park is in an irregular rectangular shape, with a length of 1148m and width of 643-814m. It has a floor area of 718013m2 and building area of 470700m2.
Hubei Tri-Ring Motor Co., Ltd. has gained over 40 years experiences in the R&D of special purpose vehicles. It created a well-structured, highly competent and highly efficient R&D team which can meet with the trend of auto industry as well as the development demand of the company. Tri-Ring R&D center has been accredited as provincial enterprise technical center, High-tech enterprise, Engineering Research Center and Innovative enterprise etc. ever since 2010. It carries out long-term cooperation with renowned institutes and engineering companies like Wuhan University of Technology, Huazhong University of Science and Technology, TJ Innova Engineering & Technology Co., Ltd. etc.
The company has a national standard vehicle testing center, of which there are various testing facilities of 265 sets, fulfilling 35 different performance tests to chassis, complete vehicles and key auto parts in terms of power performance, fuel consumption performance etc.
The company possesses a flexible assembly line for heavy, medium, light duty traditional diesel chassis and new energy chassis (including subassembly of engine, gearbox and axles), as well as commercial vehicle production line relating to stamping, metal processing, welding, refitting and painting, which is capable of producing various commercial vehicles of 50,000 units annually.
The company has its own cabin factory. It has over 400 sets of equipment for stamping, welding, painting, assembly, metal cutting, heat treatment and power supply, of which there are over 60 sets of press machines of 10T-1300T and over 1000 sets of large scale and medium scale jigs and molds. The cabin factory is capable of developing and manufacturing cabins for heavy, medium, light and agricultural vehicles, with an annual productivity of cabins for 30,000 units heavy and medium vehicles, stamping parts for 800,000 units, and window glass regulators for 1,000,000 units.
Huanmin auto parts company is a wholly-owned subsidiary of Hubei Tri-Ring Motor Co., Ltd. Huanmin is mainly engaged in the manufacturing of parts for auto chassis, of which frame is its key product. Its current annual productivity of frame is 20,000 units.
The company has a comprehensive and mature sales network of over 200 distributors and service network of over 500 service stations all over China. Besides, its products are widely exported to overseas market including South America, Southeast Asia, Africa, Middle East etc. Worth to mention, its electric vehicles were exported to South America in large quantities.
