Manufacturers Sell Directly From Factories CO2 Fiber Laser Cutter / CNC Laser Pipe Tube Cutting Machine Low Price

Product Description

Product Description

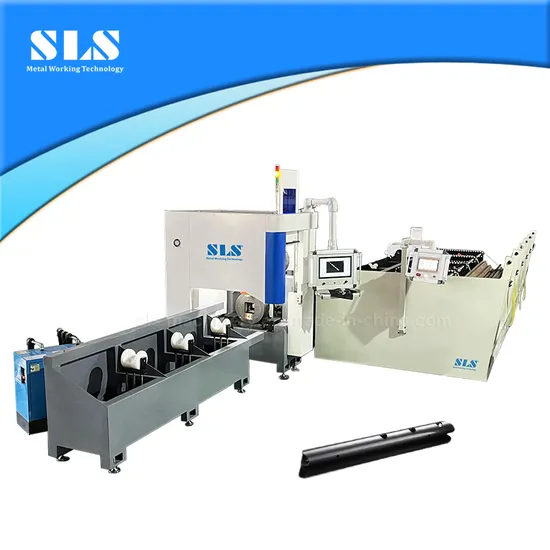

Manufacturers Sell Directly From Factories Co2 Fiber Laser Cutter / CNC Laser Pipe Tube Cutting Machine Low Price


Brief Introduction on CNC Laser Pipe Tube Cutting Machine Low Price
SLS of Manufacturers Sell Directly From Factories Co2 Fiber Laser Cutter / CNC Laser Pipe Tube Cutting Machine Low Price.
Application:Furniture, Auto Parts, Fitnessequipment, Medical Treatment, Sanitary Ware, Hardware Accessories, Etc.
It is capable of cutting various types of metal materials such as stainless metal, mild steel, carbon steel etc.
The effect and speed depends on the material and the thickness of it.

Because of the continuous improvement of social living standards, consumers have put forward more requirements on the appearance quality and style of products. Traditional cutting ways have not succeeded to meeting the modern market demand. The application of laser cutting technology not only improves the working efficiency of processing, but also makes the procedure more delicate.
We adhere to the quality as the principle, to create high-end first-class laser cutting equipment.And can customize a variety of auxiliary functions for you to achieve efficient industry 4.0 services, your satisfaction will be our greatest pursuit.
Choose our machine, is to choose the right, choose success!


Features on CNC Laser Pipe Tube Cutting Machine Low Price Super high speed pipe fiber laser cutting machine!
Compared with the universal laser cutting machine, The cutting speed is30% higher!
Machine acceleration up to 1.5G.
Multifunction cutting for round, square, rectangle and oval pipes!
It can straight cut, angle cut, make holes, etc.
Smooth and burr-free cutting.
Cutting loss 0.1mm/cut only.
Excellent cutting accuracy ±1mm.
Full pneumatic chuck, professional pipe cutting.
The chuck adopts a four-jaw hollow rotary pneumatic chuck, its speed can reach more than 150 revolutions.
Fast clamping response time to protect and avoid pinching the pipe.
Roller feeding, More feeding rollers clamp the pipe, feeding cycle does not need to be reset, reducing the waiting time and greatly improving the cutting efficiency.
Simultaneously loadingand cutting.
Self-developed control system, deep optimization, fast response, easy operation.

Main Technical Parameters

Model: LC-230CNC
Cutting Diameter	Outside Diameter 15-159mm Square Diameter 15*15-110*110mm	Tube Length	6200mm(can be customized)
Laser Power	1000-3000W	Laser Source	MAX / China
Laser Head	OSPRI / China	L*W*H (mm)	9050*2600*2380mm
Machine weight	4.0 T	Pneumatic chuck	Lingman / China
Voltage	380V 50Hz 3Phase (can be customized)	Control System	FSCUT / China
Air pressure	1.6 - 3.0 MPa	Nesting Software	FSCUT / China
Y-axis rack & pinion	FASTON / Taiwan	X & Z-axis ball screw	TBI / Taiwan
X, Y & Z-axis rail	China	Servo motor & driver	INOVANCE / China
Pneumatic system	SNS / China	Electrical proportional valve	SNS / China

FAQ:

1.Q: Are you a manufacturer or trading company?	A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2.Q:Where is the nearest airport to your company?	A: Wuxi Airport or Shanghai Airport.
3.Q: How to choose the pipe/tube laser cutting machines?	A: You have to inform us following details: - Pipe Outdiameter Range - Wall thickness range - The pipe material - Cutting Length / Cutting Shape - Pipe Original Length - Production Volume - Other requirements
4. Q: Do you have CE certificate?	A: We have CE certificate.
5. Q:How about your service?	A: Before Sales Serive: 1. We will help our customer confirm the right model according to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
